WATER PUMP

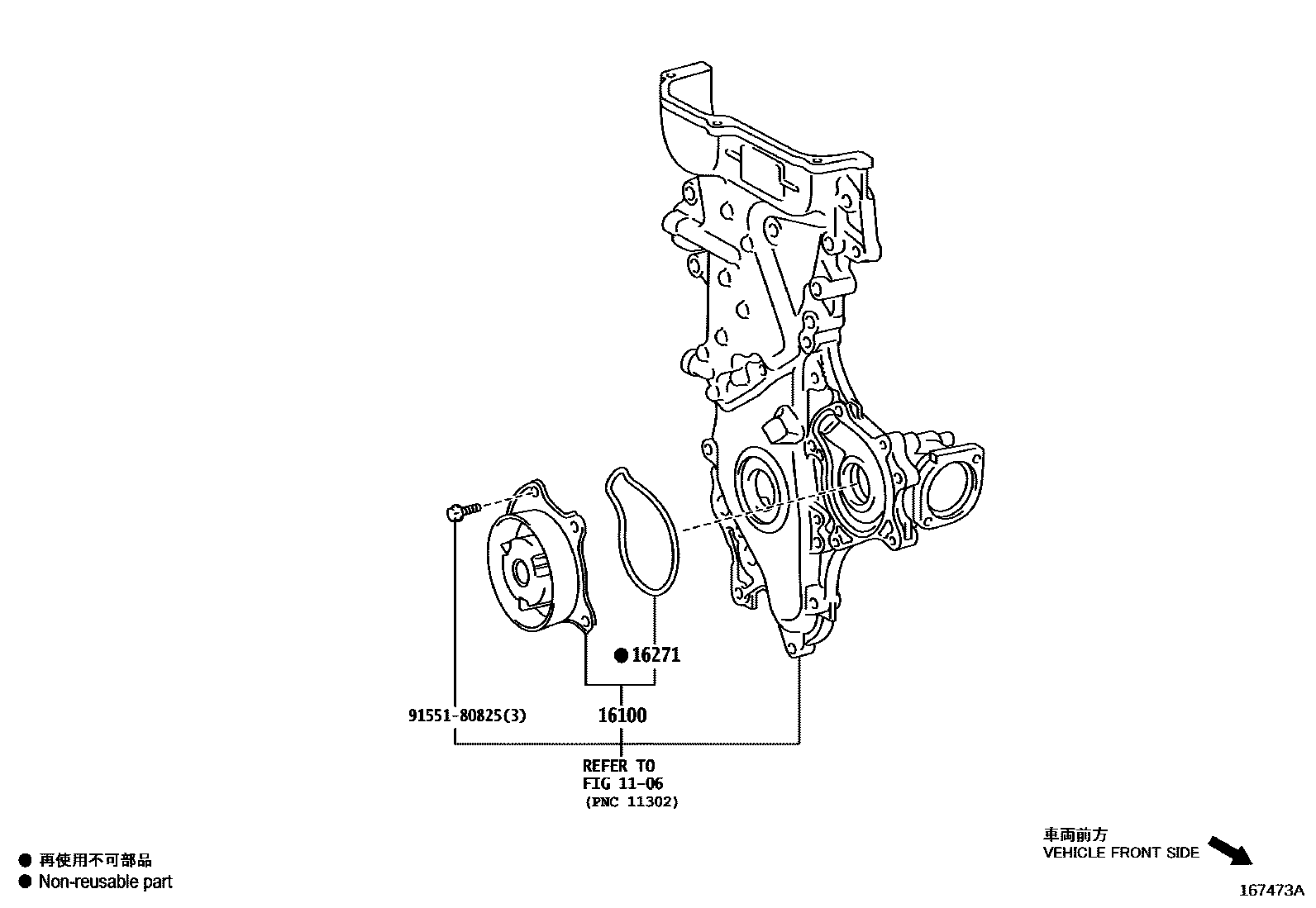

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-39466i201909-202201

main161A0-39035i202412

16271GASKET, WATER PUMP

main16271-37010i201909-202201

main16271-37020i202412

9155180825

main91551-80825

4 parts on this diagram · 2 diagrams in section
