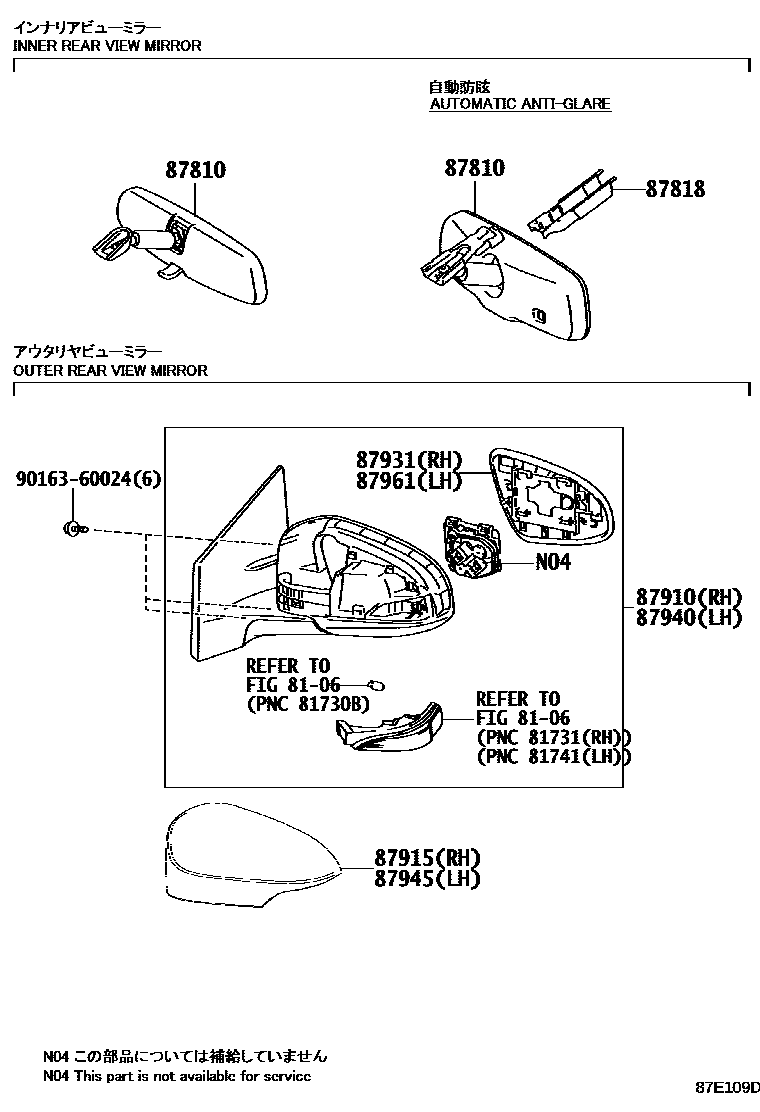

MIRROR

0001 1 0002 1

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-02111iZRE172..BZ201403-201703

sub87810-02112

main87810-02230iZRE173..N..VEN201708

main87810-0W810supersedes 87810-0W810iZRE172..E;ZRE173..BZ201403-201703

87818COVER, INNER RR VIEW MIRROR

main87818-0W070supersedes 87818-0W070iZRE172..LA;ZRE173..(ATM,CVT)..(E,N)201703

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-02C90iZRE17#..E201403-201502

main87910-02C91iZRE172..E;ZRE173..BZ201703-201903

UP GRADE PACKAGE

main87910-02C92iZRE172..N..LA201904-201908

UP GRADE PACKAGE

main87910-02D10iZRE172..N201703-201908

main87910-02J30iZRE173..D201501-201708

NO PAINT REQ.

main87910-02J40iZRE173..N..VEN201501-201708

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-02928iZRE17#..BZ,LA201403-201703

PAINT REQ.

main87915-06910iZRE173..VEN201501-201708

PAINT REQ.

87931OUTER MIRROR, RH

main87931-02C90iZRE17#..E201403-201703

main87931-02D10iZRE173..N..BZ201403-201503

main87931-0D750iZRE173..6F201708-202002

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-02D10iZRE17#..E201403-201502

main87940-02D11iZRE172..N..LA201703-201903

UP GRADE PACKAGE

main87940-02D12iZRE172..N..LA201904-201908

UP GRADE PACKAGE

main87940-02D30iZRE172..N201703-201908

main87940-02G70iZRE173..6F..D201708-202002

main87940-02G80iZRE173..6F..N201708-202002

87945COVER, OUTER MIRROR, LH

main87945-02928iZRE17#..BZ,LA201703-201908

PAINT REQ.

main87945-06910iZRE173..4FC201708

87961MIRROR OUTER, LH

main87961-02D10iZRE172..N..LA201503-201703

UP GRADE PACKAGE

main87961-02D30iZRE172..N201403-201703

main87961-0D740iZRE173..VEN201501-201708

9016360024

main90163-60024

10 parts on this diagram · 2 diagrams in section
