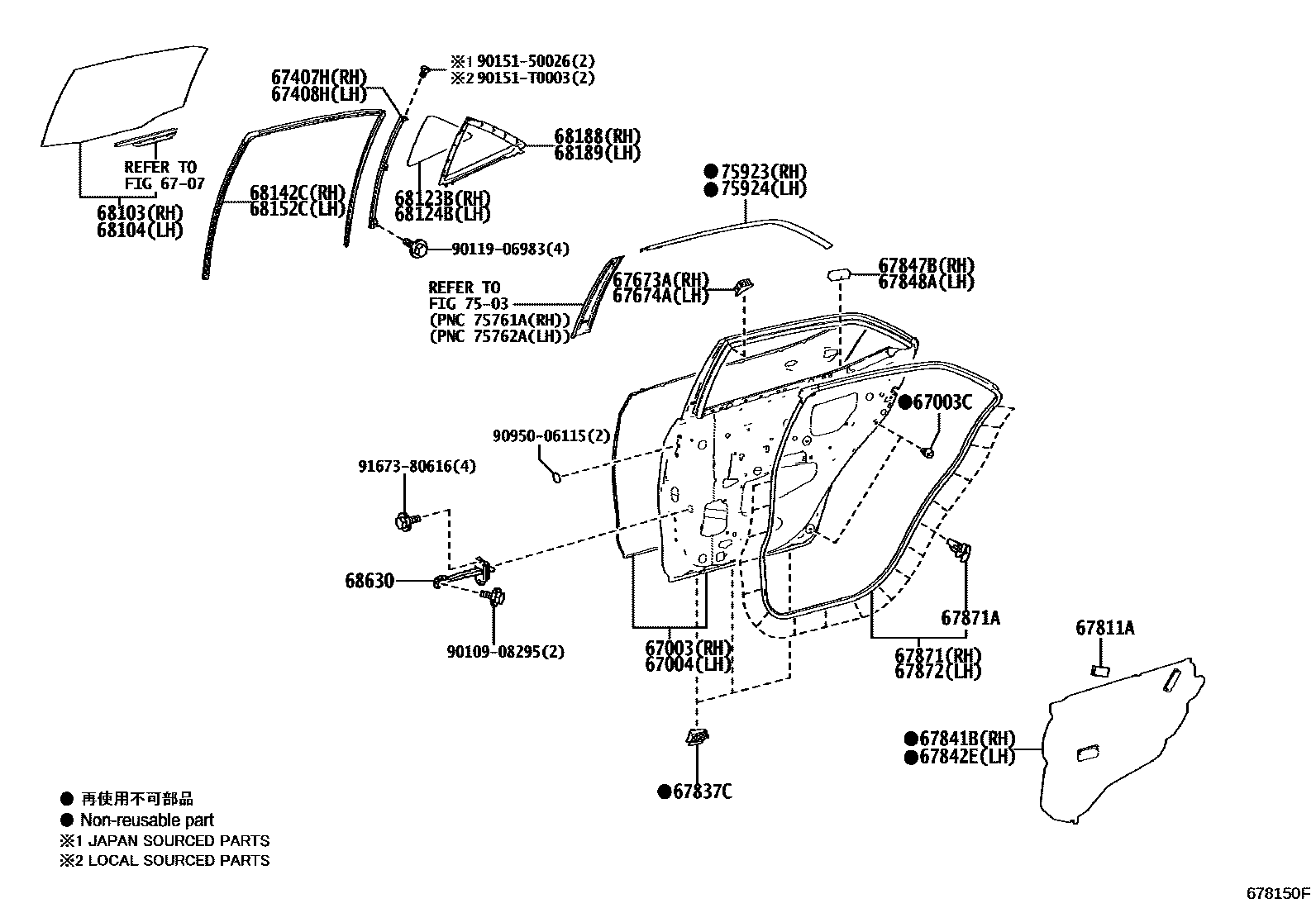

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02460iZRE173..VEN201403-201708

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iZRE17#..BZ,LA201403-201703

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02460iZRE17#..BZ,LA201403-201703

6707

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-02140iZRE17#..BZ,LA201403-201703

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-02140iZRE173..VEN201403-201708

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iZRE172;ZRE173..ATM,CVT201703

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48010iZRE17#..BZ,LA201403-201703

67811APAD, REAR DOOR SILENCER

main67811-02380×2iZRE17#..BZ,LA201403-201703

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K092×6iZRE173..6F201902-202002

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-02300iZRE17#..BZ,LA201403-201703

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02280iZRE17#..BZ,LA201403-201703

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02060iZRE173..VEN201403-201708

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-02060iZRE173..VEN201403-201708

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02260iZRE173..6F201708-202002

main67871-02270iZRE17#..BZ,LA201403-201703

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×36iZRE173..VEN201403-201604

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02260iZRE173..6F201708-202002

main67872-02270iZRE17#..BZ,LA201403-201703

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02470iZRE17#..BZ,LA201403-201703

*TEM,T=3.5,GREEN

sub68103-02471

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02480iZRE17#..BZ,LA201403-201703

*TEM,T=3.5,GREEN

sub68104-02481

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02390iZRE17#..BZ,LA201403-201703

*TEM,T=3.1,GREEN

sub68123-02391

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02390iZRE17#..BZ,LA201403-201703

*TEM,T=3.1,GREEN

sub68124-02391

68142CRUN, REAR DOOR GLASS, RH

main68142-02250iZRE17#201403-201412

main68142-02251iZRE173..VEN201501-201708

68152CRUN, REAR DOOR GLASS, LH

main68152-02250iZRE17#201403-201412

main68152-02251iZRE17#..BZ,LA201501-201703

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02200iZRE17#..BZ,LA201403-201703

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02200iZRE17#..BZ,LA201403-201703

68630CHECK ASSY, REAR DOOR

main68630-02300×2iZRE17#..BZ,LA201403-201703

7503

75923TAPE, BLACK OUT, NO.2 RH

main75923-02250iZRE173..VEN201511-201708

main75923-02260iZRE17#..BZ,LA201703-201908

75924TAPE, BLACK OUT, NO.2 LH

main75924-02250iZRE173..VEN201511-201708

main75924-02260iZRE17#201403-201511

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

90151T0003

main90151-T0003

9095006115

main90950-06115

9167380616

main91673-80616

35 parts on this diagram · 2 diagrams in section
