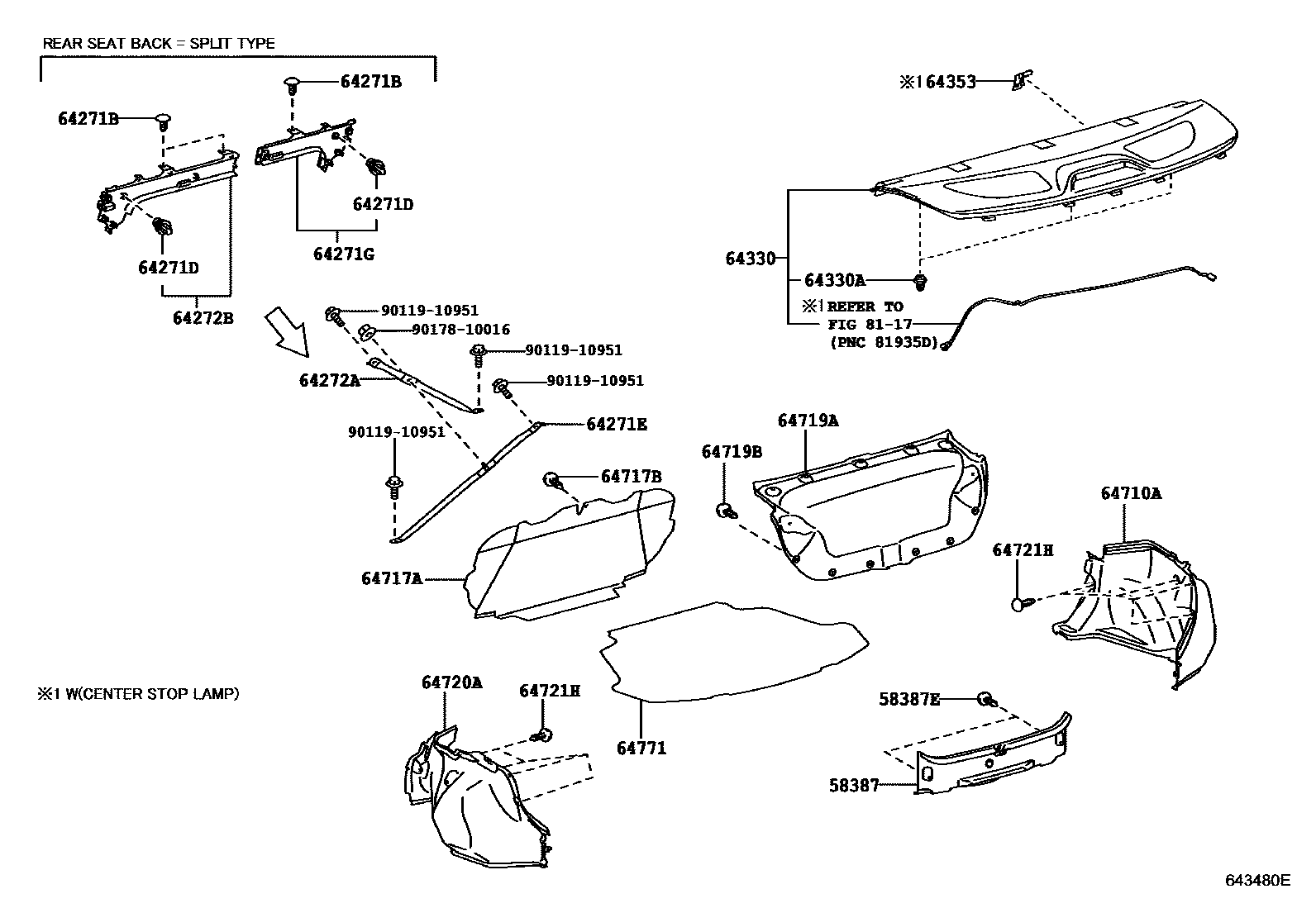

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-02280iZRE17#..BZ201403-201908

main58387-02290iZRE172..LA201403-201908

main58387-02320iZRE173..VEN201501-202002

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iZRE17#201403-201610

BLACK

sub90467-08186

main90467-08186-C3iZRE172;ZRE173..ATM,CVT201610-202002

BLACK

sub90467-08186

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0iZRE172..BZ201403-201610

UP GRADE PACKAGE,BLACK

sub90467-08186

main90467-08186-C0iZRE172..BZ201403-201610

BLACK

sub90467-08186

main90467-08186-C3iZRE172..LA;ZRE173..(ATM,CVT)..(E,N)201610-202002

BLACK

sub90467-08186

main90467-08186-C3iZRE172..BZ201610-201908

UP GRADE PACKAGE,BLACK

sub90467-08186

64271DCLIP(FOR BACK PANEL TRIM)

main62489-0E010iZRE172..BZ201403-201908

UP GRADE PACKAGE

main62489-0E010iZRE173..N..VEN201403-202002

64271EPANEL, ROOM PARTITION

main64241-02120iZRE172..BZ201703-201908

STANDARD GRADE PACKAGE

main64241-02120iZRE172..CVT..BZ201403-201901

UP GRADE PACKAGE

main64241-02120iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

64271GBOARD, ROOM PARTITION, RH

main64271-02270-C0iZRE172..CVT..BZ201403-201908

BLACK,TRIM0#

main64271-02270-C0iZRE172..CVT..BZ201703-201908

BLACK,TRIM2#

main64271-02270-C0iZRE172..CVT..BZ201403-201908

UP GRADE PACKAGE,BLACK,TRIM1#

main64271-02270-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main64271-02270-C0iZRE173..6F..N201403-202002

BLACK,TRIM1#

64272APANEL, ROOM PARTITION, LH

main64242-02120iZRE172..N..LA201703-201908

STANDARD GRADE PACKAGE

main64242-02120iZRE172..BZ201403-201901

UP GRADE PACKAGE

main64242-02120iZRE172..BZ201403-201703

W/O(RADIO RECEIVER)

64272BBOARD, ROOM PARTITION, LH

main64272-02110-C0iZRE172..E201403-201908

UP GRADE PACKAGE,BLACK,TRIM1#

main64272-02110-C0iZRE172..BZ201403-201908

BLACK,TRIM0#

main64272-02110-C0iZRE173..N;ZRE172..N..LA201403-202002

BLACK,TRIM1#

main64272-02110-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main64272-02110-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02D00-C0iZRE173..N..BZ201703-201908

SPORT PACKAGE,BLACK,TRIM2#

main64330-02D00-C0iZRE173..6F..N201501-202002

BLACK,TRIM1#

main64330-02D20-C0iZRE173..N..BZ201403-201908

BLACK,TRIM0#

main64330-02D20-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main64330-02D20-C0iZRE173..E201703-201908

BLACK,TRIM1#,2#

main64330-02D20-C0iZRE173..6F..D201403-202002

BLACK,TRIM1#

main64330-02D20-C0iZRE173..N..BZ201703-201901

SPORT PACKAGE,BLACK,TRIM1#,2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main62489-0E010iZRE17#..BZ,LA201403-202002

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02160-C0iZRE17#..E201403-201908

BLACK,TRIM0#

main64353-02160-C0iZRE17#..D,N201403-202002

BLACK,TRIM1#

main64353-02160-C0iZRE173..N..BZ201703-201901

SPORT PACKAGE,BLACK,TRIM1#,2#

main64353-02160-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main64353-02160-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02350-C0iZRE17#..N..(BZ,LA)201403-201908

BLACK,TRIM0#

main64710-02350-C0iZRE17#..N..(BZ,LA)201403-201908

BLACK,TRIM1#

main64710-02350-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main64710-02350-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main64710-02360-C0iZRE173..VEN201501-202002

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02240iZRE172..BZ201703-201908

STANDARD GRADE PACKAGE

main64717-02240iZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)&REAR SEAT-FIXED TYPE

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0iZRE172..N..LA201403-201610

W/O(RADIO RECEIVER)&REAR SEAT-FIXED TYPE,BLACK

sub90467-08186

main90467-08186-C0iZRE172..BZ201403-201610

BLACK

sub90467-08186

main90467-08186-C3iZRE172..BZ201610-201908

BLACK

sub90467-08186

main90467-08186-C3iZRE172..BZ201610-201703

W/O(RADIO RECEIVER)&REAR SEAT-FIXED TYPE,BLACK

sub90467-08186

main90467-08186-C3iZRE172..BZ201703-201908

STANDARD GRADE PACKAGE,BLACK

sub90467-08186

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02230-C0iZRE172..E201403-201908

BLACK,TRIM0#

main64719-02230-C0iZRE17#..D,N201403-202002

BLACK,TRIM1#

main64719-02230-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main64719-02230-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iZRE17#201403-201610

BLACK

sub90467-08186

main90467-08186-C3iZRE17#201610-202002

BLACK

sub90467-08186

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02350-C0iZRE172..N201703-201908

BLACK,TRIM1#,2#

main64720-02350-C0iZRE17#..N..(BZ,LA)201403-201908

BLACK,TRIM1#

main64720-02350-C0iZRE17#..N..(BZ,LA)201403-201908

BLACK,TRIM0#

main64720-02350-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main64720-02360-C0iZRE173..VEN201501-202002

BLACK,TRIM1#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0iZRE17#201403-201610

BLACK

sub90467-08186

main90467-08186-C3iZRE17#201610-202002

BLACK

sub90467-08186

64771COVER, SPARE WHEEL

main64770-02110-C0iZRE173..D201501-202002

BLACK,TRIM1#

main64770-02120-C0iZRE173..6F..N201501-202002

BLACK,TRIM1#

main64771-02440-C0iZRE173..E201703-201908

BLACK,TRIM1#,2#

main64771-02440-C0iZRE173..E201403-201908

BLACK,TRIM0#

main64771-02440-C0iZRE173..E201403-201908

BLACK,TRIM1#

main64771-02440-C0iZRE173..E201703-201908

BLACK,TRIM2#

8117

9011910951

main90119-10951

9017810016

main90178-10016

22 parts on this diagram · 2 diagrams in section
