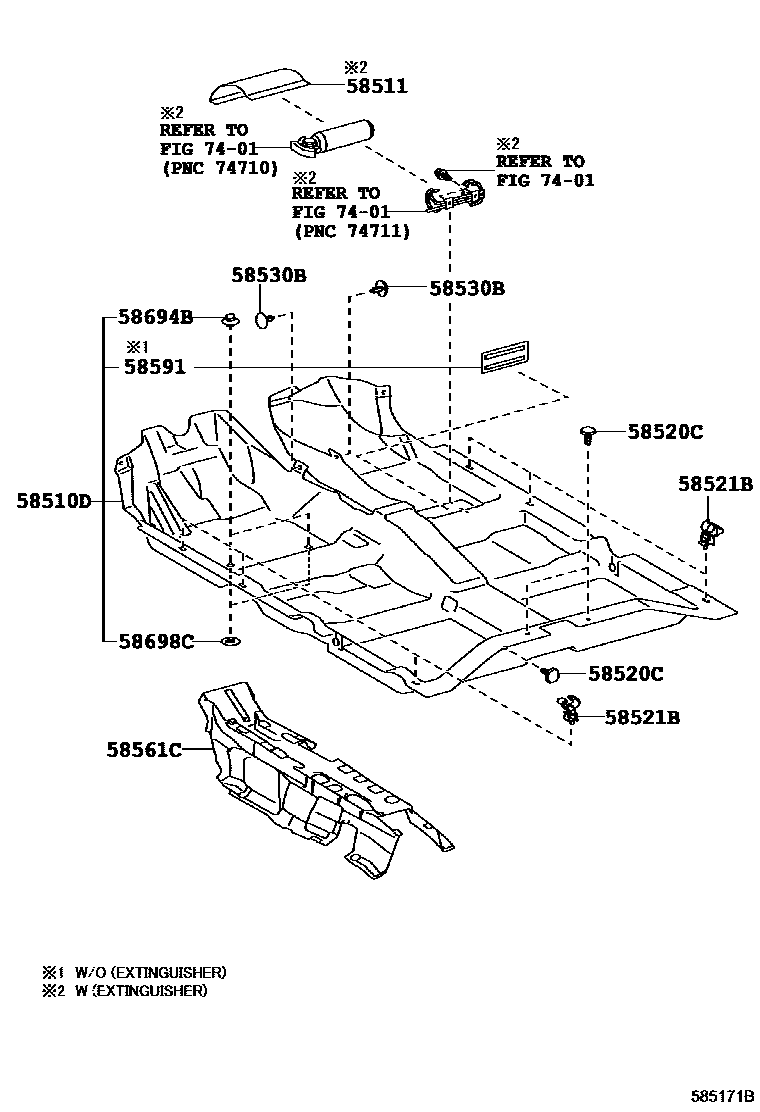

MAT & CARPET

0001 1 0003 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-02L00-C0iZRE173..E201703-201908

BLACK,TRIM1#

main58510-02L40-C0iZRE173..VEN201501-201708

BLACK,TRIM1#

58511MAT, FLOOR, FRONT

main58511-02071-C0iZRE173..E201403-201603

BLACK,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×3iZRE172;ZRE173..ATM,CVT201703

BLACK

main90467-07049-C0×3iZRE17#201403-201610

BLACK

58521BHOOK, FLOOR CARPET

main58521-02120×6iZRE173..VEN201403-201708

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2iZRE172;ZRE173..ATM,CVT201703

DK.GRAY

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02340iZRE173..VEN201403-201708

58591COVER, FLOOR CARPET

main58591-02080-C0iZRE173..E201703-201908

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-76010×2iZRE17#..BZ,LA201403-201703

58698CPLATE, MAT SET, LOWER

main58698-76010×2iZRE17#..BZ,LA201403-201703

7401

10 parts on this diagram · 2 diagrams in section
