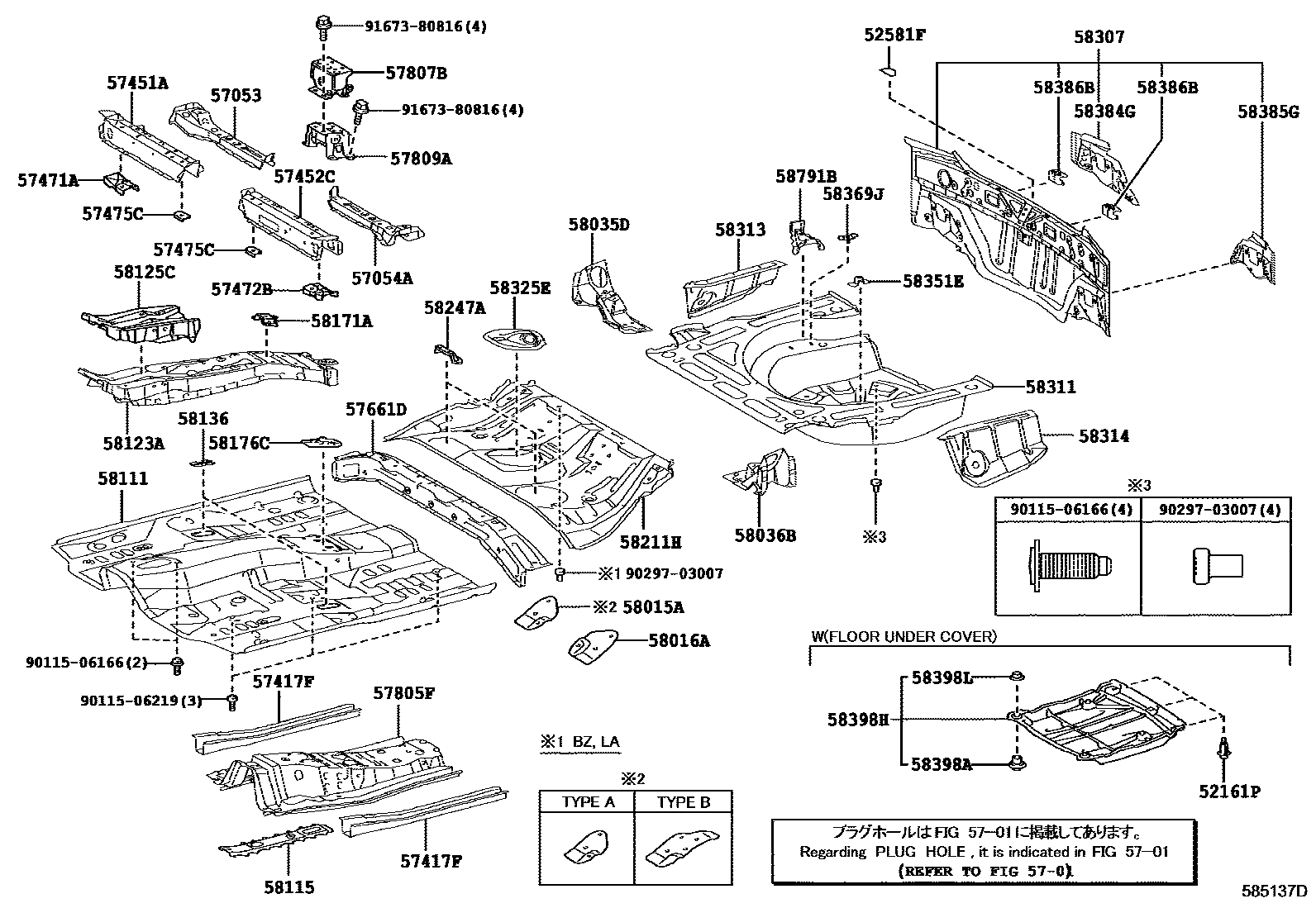

FLOOR PAN & LOWER BACK PANEL
52161PPIECE, REAR BUMPER
sub52161-0K040
52581FPROTECTOR, REAR BUMPER
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57471AREINFORCE, SEAT BELT ANCHOR TO FLOOR MEMBER
57472BREINFORCE, SEAT BELT ANCHOR TO FLOOR MEMBER, LH
57475CPLATE, FRONT FLOOR CROSSMEMBER
57661DMEMBER, REAR FLOOR CROSS, FRONT
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
sub58016-02100
58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH
58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
sub58115-02040
58123ASUPPORT, SHIFT & SELECT LEVER
58125CBRACKET, FRONT FLOOR TO COWL BRACE MOUNTING
58136COVER, FRONT FLOOR HOLE
58171AREINFORCE, PARKING BRAKE BASE
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
UP GRADE PACKAGE
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
sub58247-12080
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
SPORT PACKAGE
STANDARD GRADE PACKAGE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58369JBRACKET, REAR FLOOR BRACE
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58398ACLIP, NO.3(FOR FLOOR UNDER COVER)
58398HCOVER, FLOOR UNDER, NO.1
58398LCLIP, NO.4(FOR FLOOR UNDER COVER)
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9029703007
main90297-03007
9167380816
main91673-80816
46 parts on this diagram · 1 diagram in section
