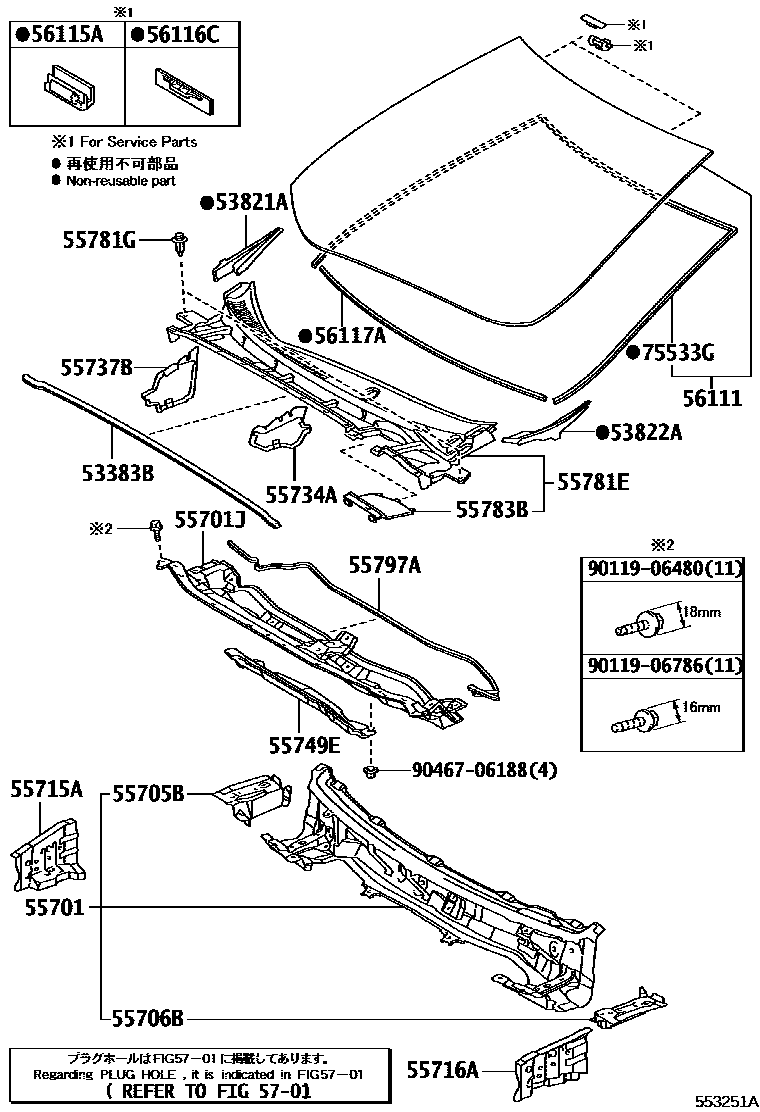

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02230iZRE172;ZRE173..ATM,CVT201703

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53823-02110iZRE17#..BZ,LA201403-201703

main53823-02111iZRE173..6F201811-202002

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53824-02110iZRE17#201703-201810

main53824-02111iZRE173..6F201811-202002

55701PANEL SUB-ASSY, COWL

main55700-02590iZRE17#..BZ,LA201703-201908

main55700-02610iZRE173..6F201708-202002

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02440iZRE172..LA201403-201703

main55701-02460iZRE17#..BZ201403-201703

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02170iZRE17#..BZ,LA201403-201703

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02170iZRE17#..BZ,LA201403-201703

55715ABRACE, COWL TOP TO APRON, RH

main55715-02050iZRE17#..BZ,LA201403-201703

55716ABRACE, COWL TOP TO APRON, LH

main55716-02050iZRE17#..BZ,LA201403-201703

55734APLATE, WATER GUARD, RH

main55734-02310iZRE173..VEN201403-201708

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02180iZRE17#..BZ,LA201403-201703

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-02140iZRE17#..BZ,LA201403-201703

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02660iZRE17#..BZ,LA201403-201703

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iZRE17#201403-201703

BLACK

sub90467-07041

sub90467-A0016

main90467-07076-C7×2iZRE173..VEN201703-201708

BLACK

sub90467-07041

sub90467-A0016

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-02270iZRE17#..BZ,LA201403-201703

55797ASEAL, COWL WATER EXTRACT

main55797-02140iZRE17#..BZ,LA201403-201703

56111GLASS, WINDSHIELD

main56101-02F60iZRE172..N..LA201703-201908

STANDARD GRADE PACKAGE

sub56101-02F61

main56101-02F80iZRE173..4FC..D201708

main56101-02F90iZRE173..6F..N201708-202002

main56101-02G00supersedes 56101-02F70iZRE173..BZ201403-201703

*LAM,T=4.66,GREEN

sub56101-02G01

main56101-02G50iZRE17#..E201703-201908

sub56101-02G51

main56101-02V50iZRE172..N..LA;ZRE173..N..BZ201703-201908

sub56101-02V51

main56101-02G40iZRE172..CVT..BZ201403-201503

*LAM,T=4.66,GREEN,AUDIO-AVN & 6SPEAKER

sub56101-02G41

main56101-0Z370supersedes 56101-02G00iZRE172..E201801-201908

PERU SPEC

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iZRE173..6F201703-202002

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZRE173..VEN201403-201708

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02190iZRE172;ZRE173..ATM,CVT201703

L=1262.5

sub56117-50140

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-02250iZRE173..6F201703-202002

9011906480

main90119-06480

9011906786

main90119-06786

9046706188

main90467-06188

25 parts on this diagram · 1 diagram in section
