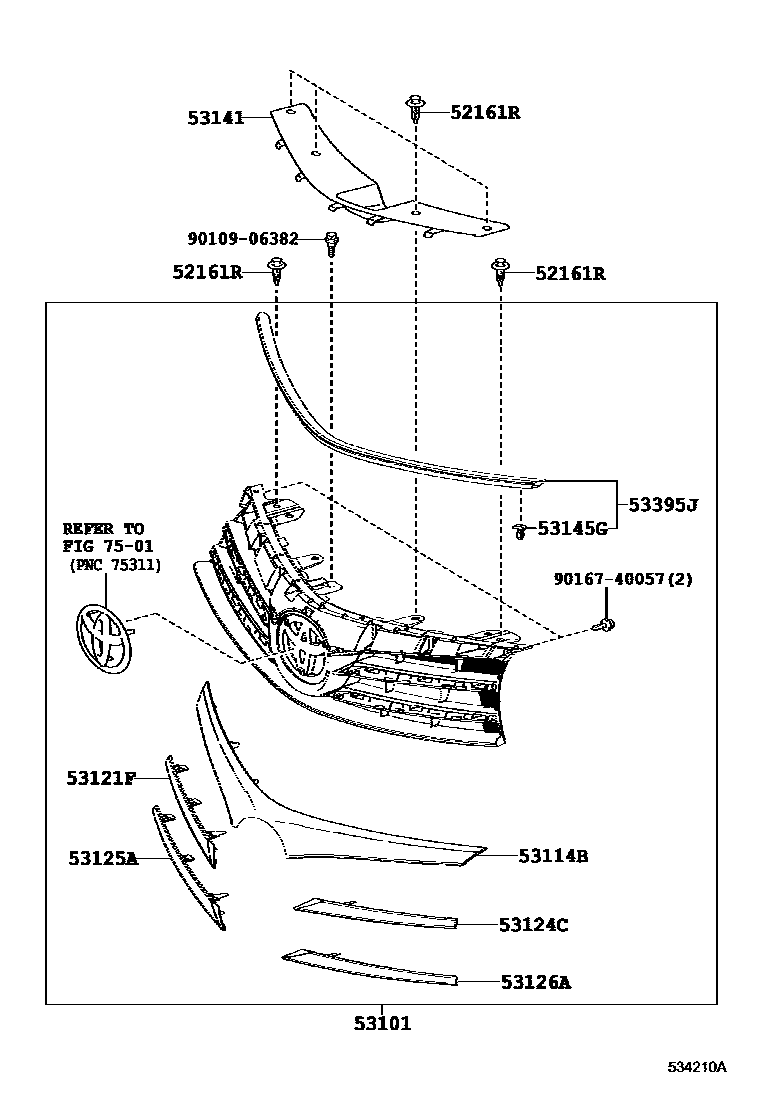

RADIATOR GRILLE

0001 1 0003 1

52161RPIECE, FRONT BUMPER

main52161-16010×6iZRE173..VEN201403-201708

sub52161-0K040

53101GRILLE SUB-ASSY, RADIATOR

main53100-02680iZRE17#..BZ,LA201403-201703

PLATED

main53100-02C40iZRE173..6F201703-202002

main53100-02C50iZRE173..N..BZ201703-201804

PLATED,SPORT PACKAGE

53114BGRILLE, RADIATOR, UPPER

main53114-02320iZRE17#..BZ,LA201403-201703

main53114-02480iZRE173..6F201703-202002

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02250iZRE17#..BZ,LA201403-201703

main53121-02420iZRE173..6F201703-202002

main53121-02380iZRE173..N..BZ201703-201804

SPORT PACKAGE

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-02240iZRE173..VEN201403-201708

main53124-02410iZRE173..6F201703-202002

main53124-02370iZRE173..N..BZ201703-201804

SPORT PACKAGE

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-02100iZRE17#..BZ,LA201403-201703

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-02130iZRE17#..BZ,LA201403-201703

53141COVER, RADIATOR

main53141-02100iZRE17#..BZ,LA201403-201703

53145GCLIP, RADIATOR GRILLE

main53145-60030×9iZRE17#..BZ,LA201403-201703

53395JSEAL, HOOD TO FRONT END PANEL

main53395-02130iZRE17#..BZ,LA201403-201703

7501

9010906382

main90109-06382

9016740057

main90167-40057

13 parts on this diagram · 2 diagrams in section
