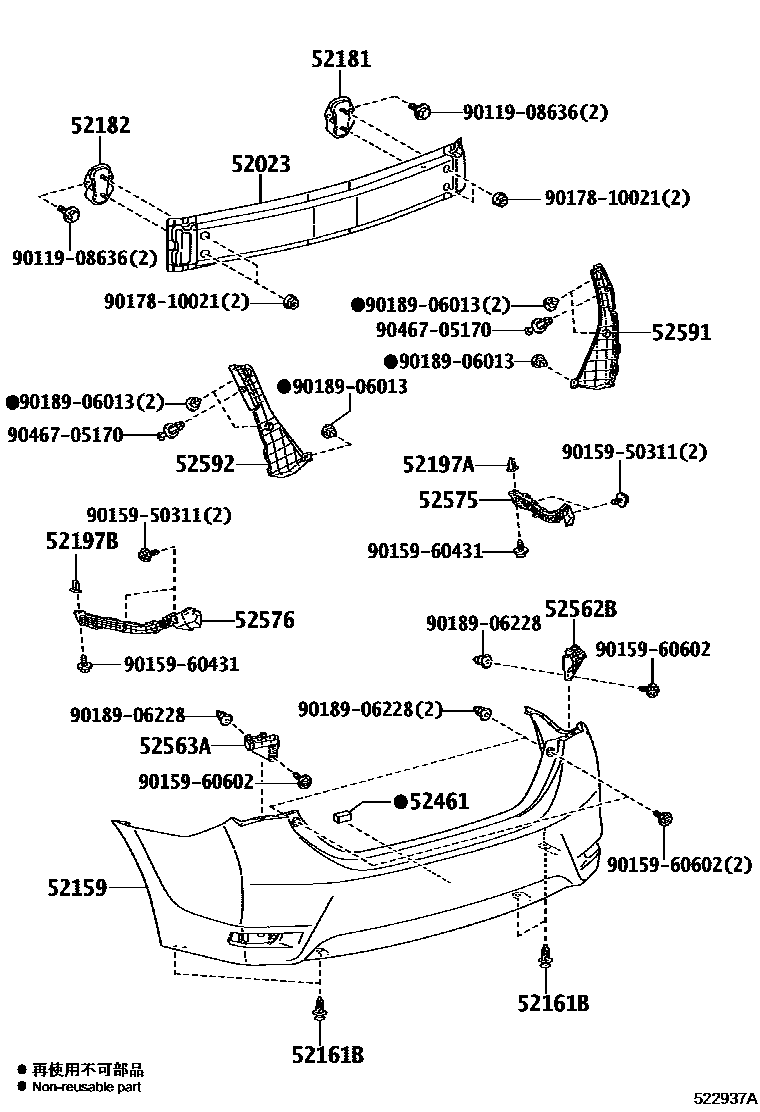

REAR BUMPER & BUMPER STAY

0001 1 0002 1SPORT PACKAGE

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02200iZRE17#..BZ,LA201403-201703

52159COVER, REAR BUMPER

main52159-0Z915iZRE173..6F201703-202002

main52159-0Z941iZRE173..N..BZ201703-201908

PAINT REQ.,SPORT PACKAGE

52161BPIECE, REAR BUMPER

main52161-16010×4iZRE17#..BZ,LA201403-201703

sub52161-0K040

52181ARM, REAR BUMPER, RH

main52181-02200iZRE173..VEN201403-201708

52182ARM, REAR BUMPER, LH

main52182-02170iZRE17#..BZ,LA201403-201703

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iZRE17#..BZ,LA201403-201703

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-22020iZRE17#..BZ,LA201403-201703

52461PAD, REAR BUMPER, CENTER

main52462-02210iZRE17#..BZ,LA201403-201703

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02260iZRE17#..BZ,LA201403-201703

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02260iZRE17#..BZ,LA201403-201703

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02150iZRE17#..BZ,LA201403-201703

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02150iZRE17#..BZ,LA201403-201703

52591SEAL, REAR BUMPER SIDE, RH

main52591-02310iZRE17#201403-201602

main52591-02311iZRE17#..BZ,LA201603-201703

52592SEAL, REAR BUMPER SIDE, LH

main52592-02310iZRE17#201403-201602

main52592-02311iZRE17#..BZ,LA201603-201703

9011908636

main90119-08636

9015950311

main90159-50311

9015960431

main90159-60431

9015960602

main90159-60602

9017810021

main90178-10021

9018906013

main90189-06013

9018906228

main90189-06228

9046705170

main90467-05170

22 parts on this diagram · 2 diagrams in section
