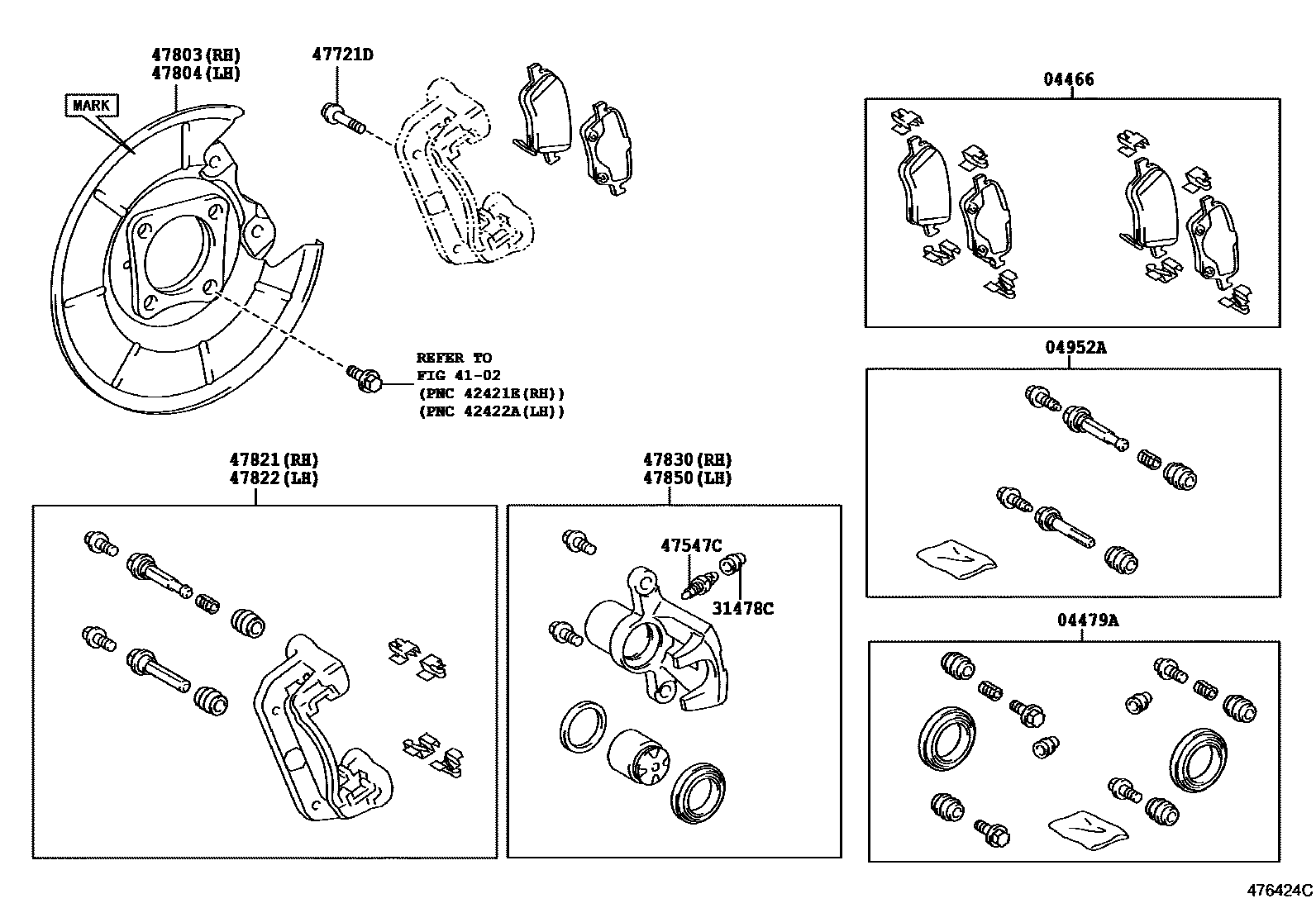

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02300iZRE17#..BZ,LA201403-201703

MARK 478-E17

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02380iZRE17#..BZ,LA201403-201703

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04956-02090×2iZRE17#..BZ,LA201403-201703

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39009×2iZRE17#..BZ,LA201403-201703

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000×2iZRE17#..BZ,LA201403-201703

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main91552-C1035×4iZRE17#..BZ,LA201403-201703

*10-1.25PX35-26

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-02070iZRE173..VEN201612-201708

MARK BOSCH

main47803-12090iZRE173..VEN201612-201708

NO MARK

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-02070iZRE17#..BZ,LA201612-201703

MARK BOSCH

main47804-12090iZRE17#201403-201612

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09090iZRE17#..BZ,LA201403-201703

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09090iZRE17#..BZ,LA201403-201703

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02230iZRE17#..BZ,LA201403-201703

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02230iZRE17#..BZ,LA201403-201703

13 parts on this diagram · 1 diagram in section
