PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iZRE173..6F201403-202002

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02420-C0iZRE173..6F..D201403-202002

BLACK,TRIM1#

main46201-02420-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main46201-02430-C0iZRE172..N..LA201403-201908

UP GRADE PACKAGE,BLACK,TRIM1#

main46201-02430-C0iZRE173..N..VEN201501-202002

BLACK,TRIM1#

main46201-02430-C0iZRE173..E201403-201908

BLACK,TRIM0#

main46201-02430-C0iZRE173..E201703-201908

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-12040iZRE17#..BZ,LA201403-202002

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02160iZRE17#..BZ,LA201403-202002

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12750iZRE17#..BZ,LA201403-202002

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-12020iZRE17#..BZ,LA201403-202002

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12640iZRE17#..BZ,LA201403-202002

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZRE17#..BZ,LA201403-202002

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iZRE17#..BZ,LA201403-202002

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

91671A0614

main91671-A0614

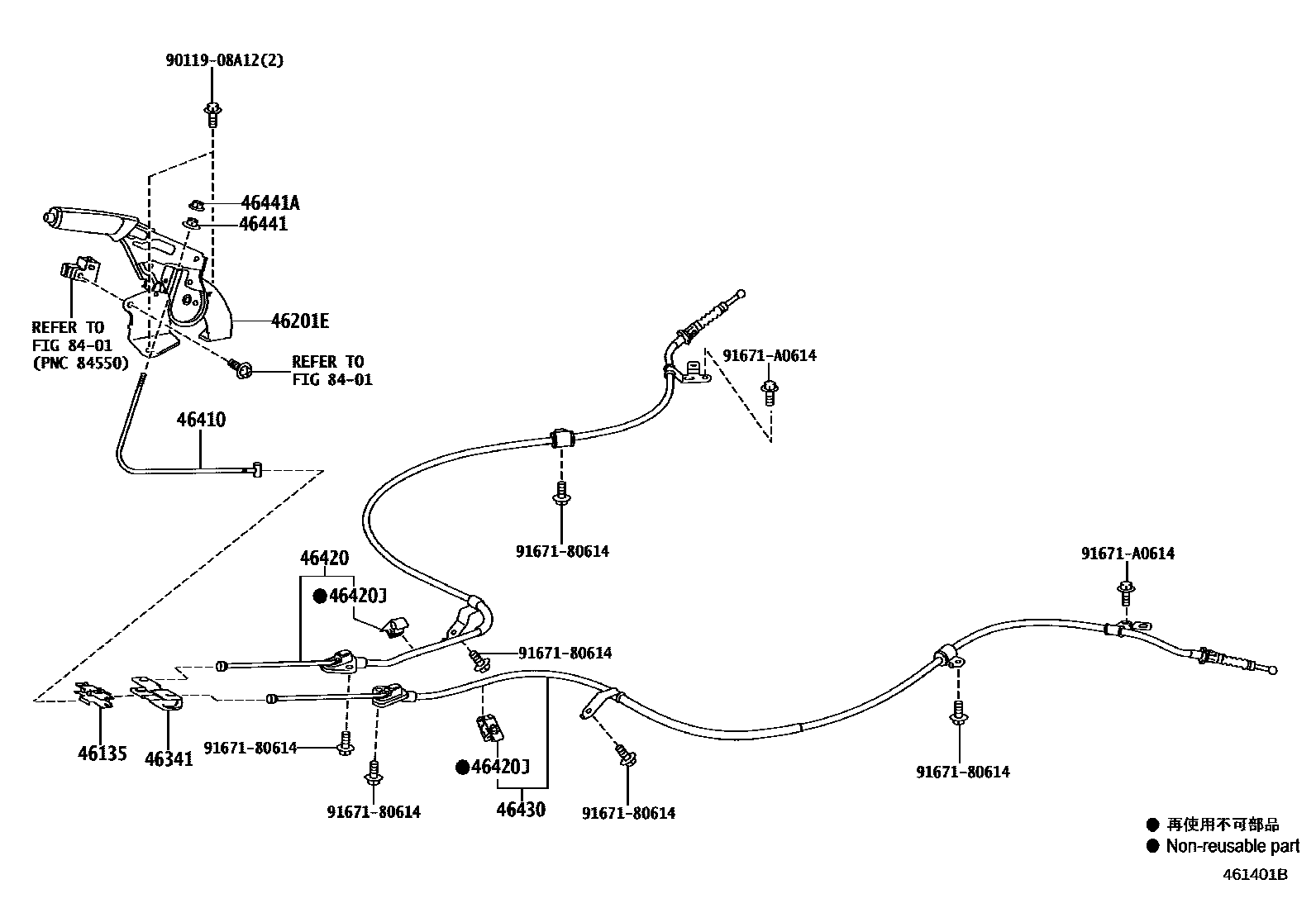

13 parts on this diagram · 1 diagram in section
