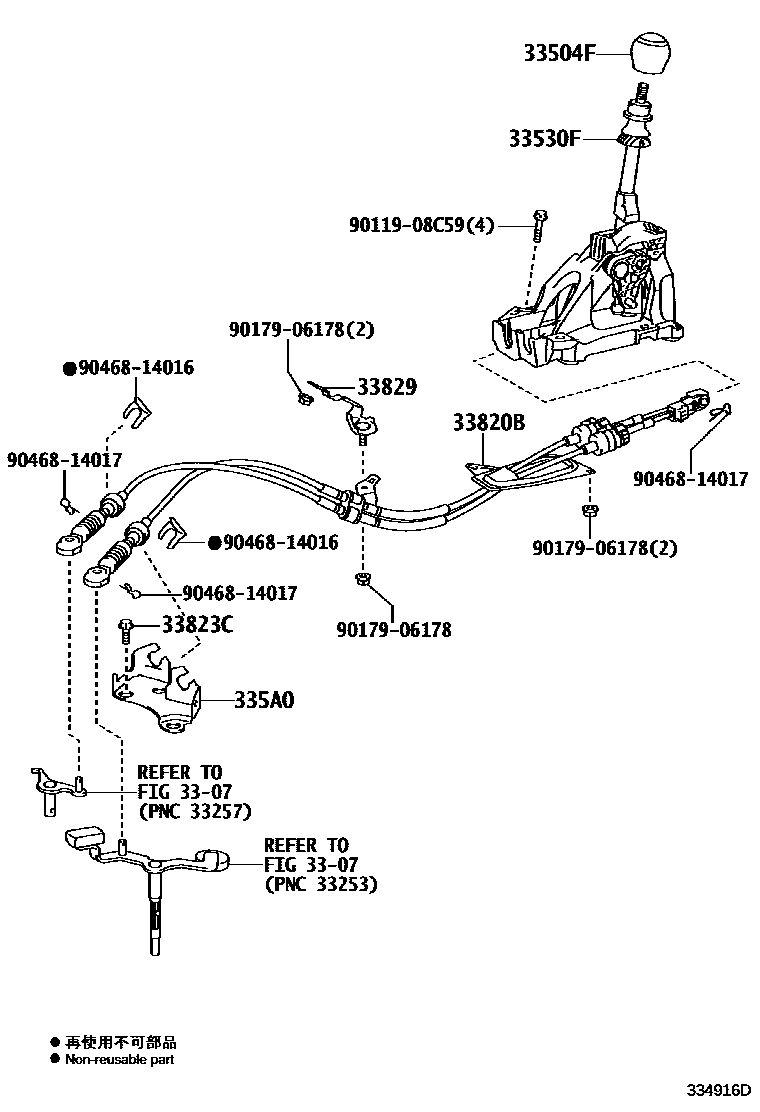

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12510-C1iZRE172..CVT..N;ZRE173..4FC..D201403-201708

BLACK,TRIM1#

main33504-12520-C0iZRE172..CVT..N201403-201703

UP GRADE PACKAGE,BLACK/MD.SILVER,TRIM1#

main33504-12520-C0iZRE173..(ATM,CVT)..N201403-201708

BLACK/MD.SILVER,TRIM1#

main33504-12520-C0iZRE172..CVT..N201403-201703

BLACK/MD.SILVER,TRIM0#

main33504-12630-C1iZRE172..6F..E201403-201703

BLACK/BLACK ME.,TRIM0#

main33504-12630-C1iZRE172..6F..N201403-201703

UP GRADE PACKAGE,BLACK/BLACK ME.,TRIM1#

main33504-12630-C1iZRE173..6F..N201501-201708

BLACK/BLACK ME.,TRIM1#

main33504-12630-C5iZRE172..6F..N..LA201703-201908

UP GRADE PACKAGE,BLACK,TRIM1#

main33504-12630-C5iZRE172..6F..E201703-201908

BLACK,TRIM2#

main33504-12630-C5iZRE173..6F..N201708-202002

BLACK,TRIM1#

main33504-12730-C0iZRE173..N..BZ201703-201908

BLACK,TRIM1#,2#

main33504-12730-C0iZRE173..N..BZ201703-201908

BLACK,TRIM0#

main33504-12730-C0iZRE173..N..BZ201703-201908

BLACK,TRIM2#

main33504-12730-C0iZRE173..N..BZ201703-201908

UP GRADE PACKAGE,BLACK,TRIM1#

main33504-12730-C0iZRE173..4FC..N201708

BLACK,TRIM1#

main33504-52290-C2iZRE172..6F..N;ZRE173..6F..D201403-202002

BLACK/21GY18,TRIM1#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12C40iZRE17#..6F201403-202002

335A0BRACKET ASSY, CONTROL CABLE

main335A0-12020iZRE172..6F201403-201511

main335A0-12021iZRE172..6F201511-201908

main335A0-12030iZRE173..6F201501-202002

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12E80iZRE173..4FC201501-201708

main33820-12E90iZRE173..6F201501-202002

main33820-12F30iZRE172..CVT201403-201703

main33820-12F40iZRE173..BZ201403-201703

main33820-12F60iZRE172..6F201403-201703

main33820-12G60iZRE172..6F201703-201908

main33820-12G70iZRE172..CVT201703-201908

main33820-12G80iZRE173..BZ201703-201908

main33820-12J10iZRE173..4FC201708

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-02170iZRE173..4FC201501-201708

main33823-02290iZRE172..CVT201403-201908

main33823-02300iZRE173..BZ201403-201908

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iZRE17#..CVT201403-201708

main90119-08C60iZRE173..6F201403-202002

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-02150iZRE17#..CVT201403-201908

main33829-02150iZRE173..4FC201501-201708

NO.1:REFER ILLUST.

main33829-02170iZRE173..4FC201501-201708

NO.2:REFER ILLUST.

main33829-12170iZRE172..6F201403-202002

9011908C59

main90119-08C59

9017906178

main90179-06178

9046814016

main90468-14016

9046814017

main90468-14017

12 parts on this diagram · 7 diagrams in section
