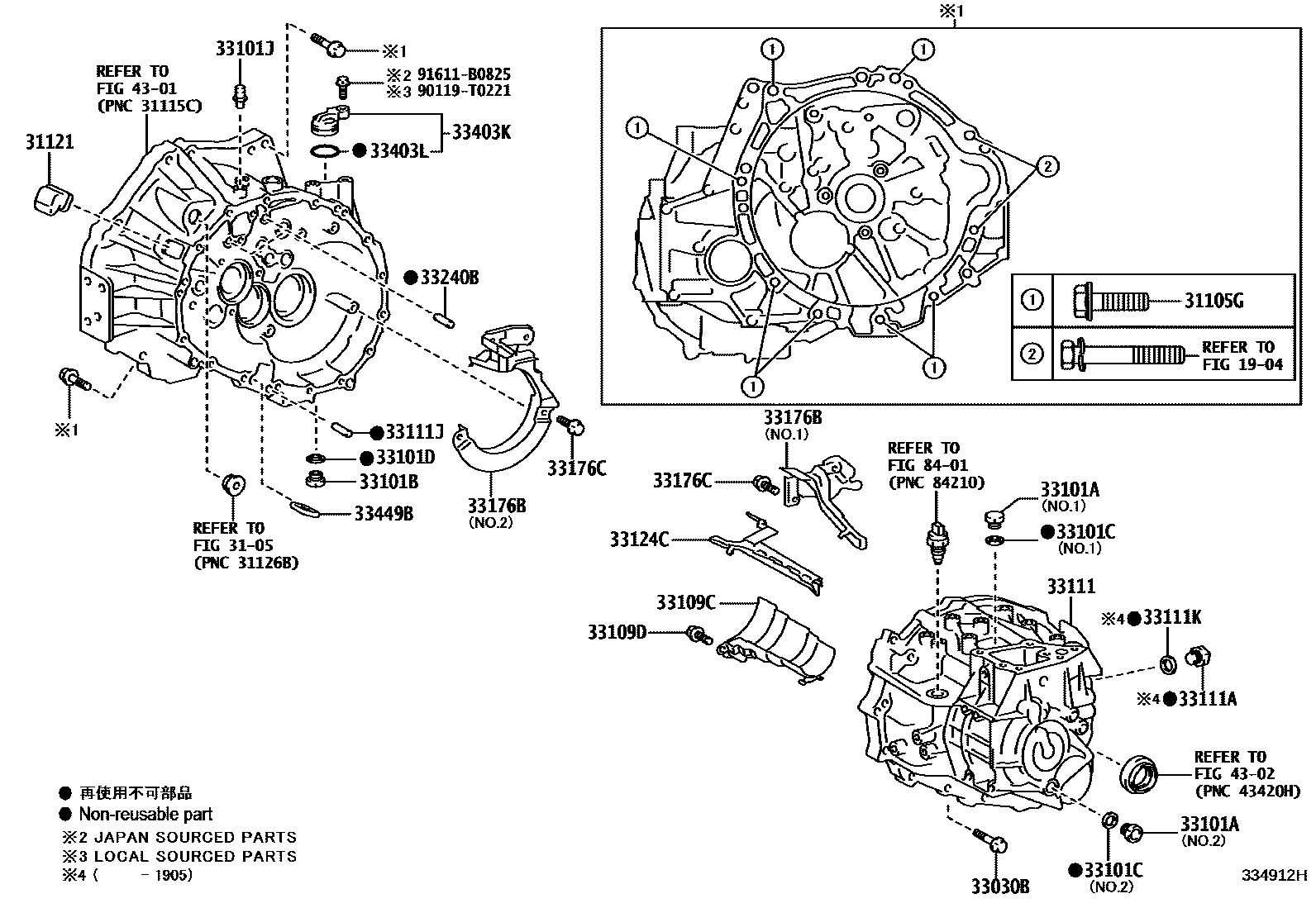

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1EC60 0002 1EB60

1904

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-T0221iZRE172..6F201801-201908

*8-1.25PX25-20.1,(L)

main90119-T0225×7iZRE172..6F201703-201908

*10-1.25PX45-30,(L)

main91512-61045×3iZRE173..6F201501-201708

*10-1.25PX45-30

main91611-B0825iZRE172..6F201801-201908

*8-1.25PX25-25,(J)

main91612-61045×7iZRE172..6F201403-201703

*10-1.25PX45-30

31121COVER, CLUTCH HOUSING, NO.1

main31121-52020iZRE172..6F201703-201908

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840×16iZRE172..6F201703-201908

*8-1.25PX40-22

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-20100iZRE173..6F201501-201507

main33101-42050iZRE173..6F201507-201708

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iZRE172..6F201703-201908

NO.1

main90341-18033iZRE172..6F201403-201703

NO.2

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18023iZRE172..6F201403-201703

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iZRE172..6F201403-201604

NO.2

main90430-14003iZRE172..6F201403-201703

NO.1

main90430-18008iZRE172..6F201703-201908

NO.2

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main12157-10010iZRE172..6F201403-201604

main90430-18008iZRE172..6F201703-201908

33101JPLUG, BREATHER

main90930-03085iZRE173..6F201501-201708

main90930-03133iZRE172..6F201403-201703

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-0D020iZRE172..6F201604-201703

main33109-20020iZRE172..6F201403-201505

main33109-52010iZRE172..6F201505-201604

sub33109-52011

33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)

main91551-80816×4iZRE172..6F201403-201703

33111CASE, MANUAL TRANSMISSION

main33111-0D130iZRE172..6F201604-201703

main33111-0D131iZRE172..6F201810-201905

main33111-0D132iZRE172..6F201905-201908

main33111-12291iZRE172..6F201403-201604

sub33111-12292

sub33290-12040

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iZRE172..6F201403-201703

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×3iZRE172..6F201703-201908

L=23,OD=8

33111KGASKET(FOR TRANSMISSION CASE)

main12157-10010iZRE172..6F201403-201604

main90430-18008iZRE172..6F201604-201703

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0D080iZRE172..6F201604-201703

main33124-20080iZRE172..6F201403-201604

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-0D040iZRE172..6F201703-201908

NO.1

main33176-0D050iZRE172..6F201703-201908

NO.2

main33176-20080iZRE172..6F201403-201604

NO.1

main33176-20090iZRE172..6F201403-201604

NO.2

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main91551-80816×6iZRE172..6F201703-201908

33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)

main90250-08054×2iZRE172..6F201403-201703

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iZRE173..6F201501-201708

main33403-35230iZRE172..6F201703-201908

33403LRING, O

main96711-24018iZRE173..6F201501-201708

main96711-24030iZRE172..6F201403-201703

33449BMAGNET, TRANSMISSION

main33449-20010iZRE172..6F201403-201703

main33449-60010iZRE173..6F201501-201708

4301

4302

8401

90119T0221

main90119-T0221

91611B0825

main91611-B0825

29 parts on this diagram · 2 diagrams in section
