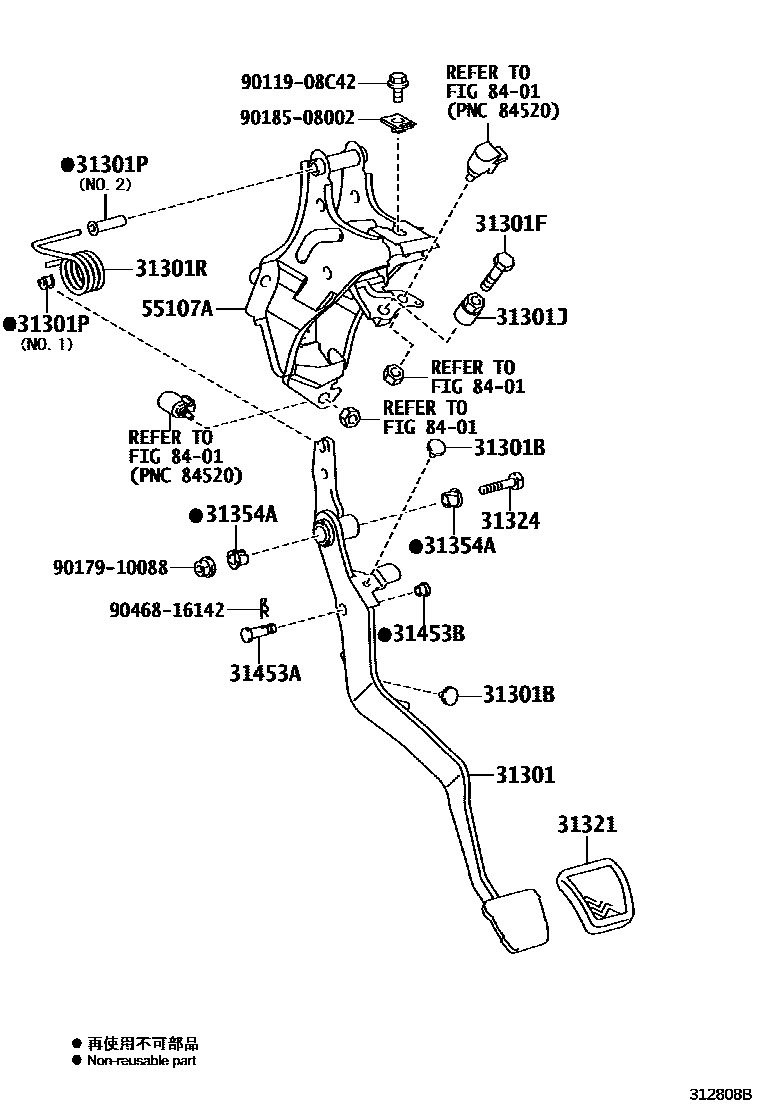

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02640iZRE172..6F201403-201703

main31301-02650iZRE173..6F201708-202002

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iZRE172..6F201403-201703

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZRE173..6F201403-201708

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE172..6F201403-201703

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iZRE172..6F201403-201703

NO.1

main90389-05019iZRE172..6F201403-201703

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03138iZRE172..6F201403-201703

31321PAD, CLUTCH PEDAL

main31321-02050iZRE172..6F201403-201703

31324SHAFT, CLUTCH PEDAL

main90109-10174iZRE172..6F201403-201703

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-13015×2iZRE17#..6F201703-202002

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZRE172..6F201403-201703

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZRE173..6F201403-201708

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02350iZRE17#..6F201703-202002

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

17 parts on this diagram · 3 diagrams in section
