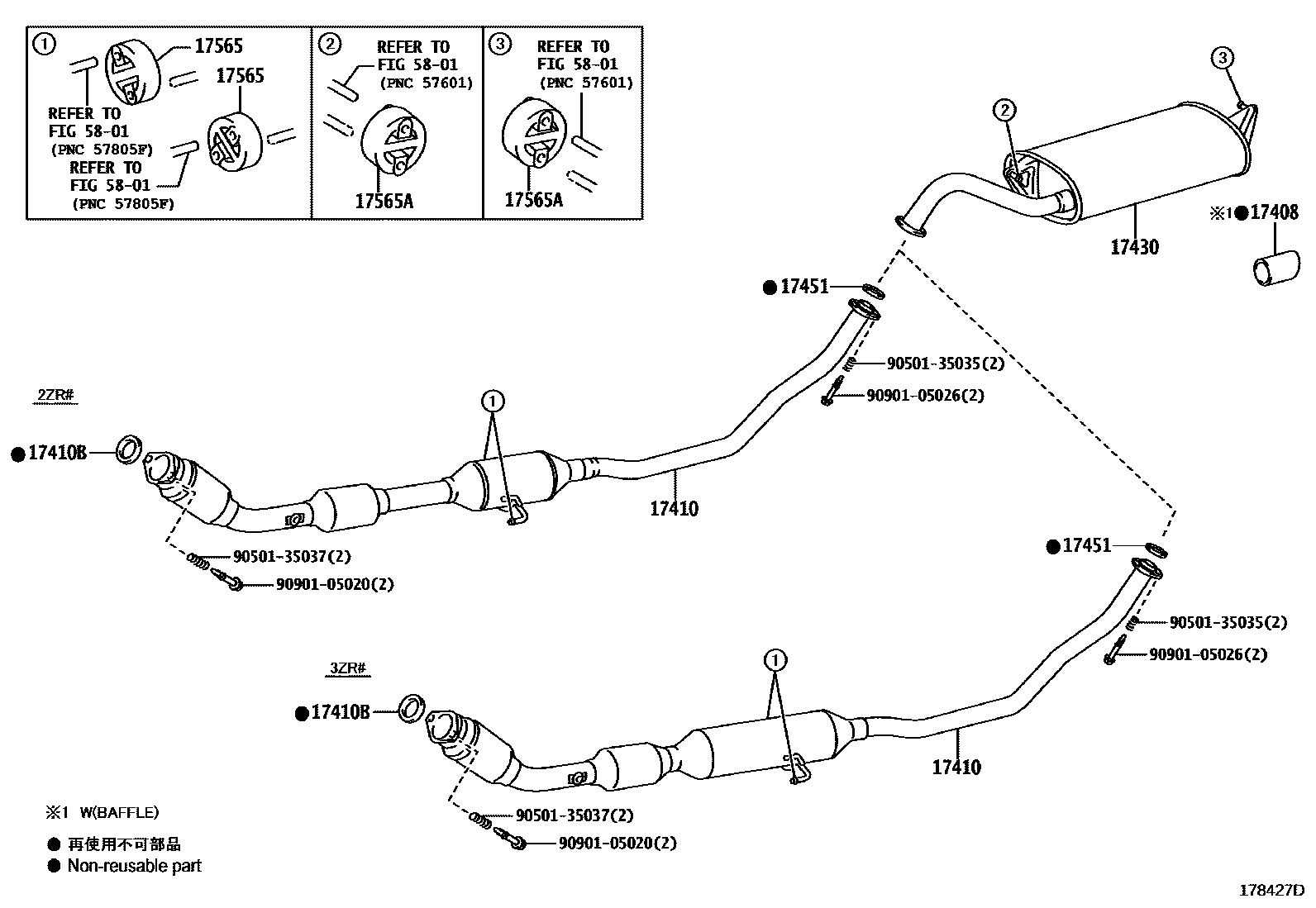

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-37031i3ZRFBE..ZRE173..N201703-201908

SPORT PACKAGE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0T800i2ZRFE..ZRE172201403-201703

main17410-0T810i2ZRFBE..ZRE172201403-201703

main17410-0T820i3ZRFBE..ZRE173201403-201703

main17410-0T830i3ZRFE..ZRE173..6F201708-202002

main17410-0TG90i2ZRFBE..ZRE172201903-201908

main17410-0TJ00i3ZRFBE..ZRE173201903-201908

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZR#,3ZRFBE..ZRE17#201607-201703

sub17451-28041

main17451-28070i2ZR#,3ZR#..ZRE17#201403-201606

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T400i3ZRFE..ZRE173201403-201708

main17430-0T730i2ZRFBE,3ZRFBE..ZRE17#201903-201908

main17430-0T320i3ZRFBE..ZRE173..N201703-201908

SPORT PACKAGE

17451GASKET, EXHAUST PIPE

main17451-28032i2ZR#,3ZRFBE..ZRE17#201403-201703

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0T070×2i3ZRFE..ZRE173201703-201708

main17565-22030×2i2ZR#,3ZR#..ZRE17#201403-201702

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0T080×2i3ZRFE..ZRE173..6F201703-202002

main17565-22040×2i2ZR#,3ZR#..ZRE17#201403-201702

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 1 diagram in section
