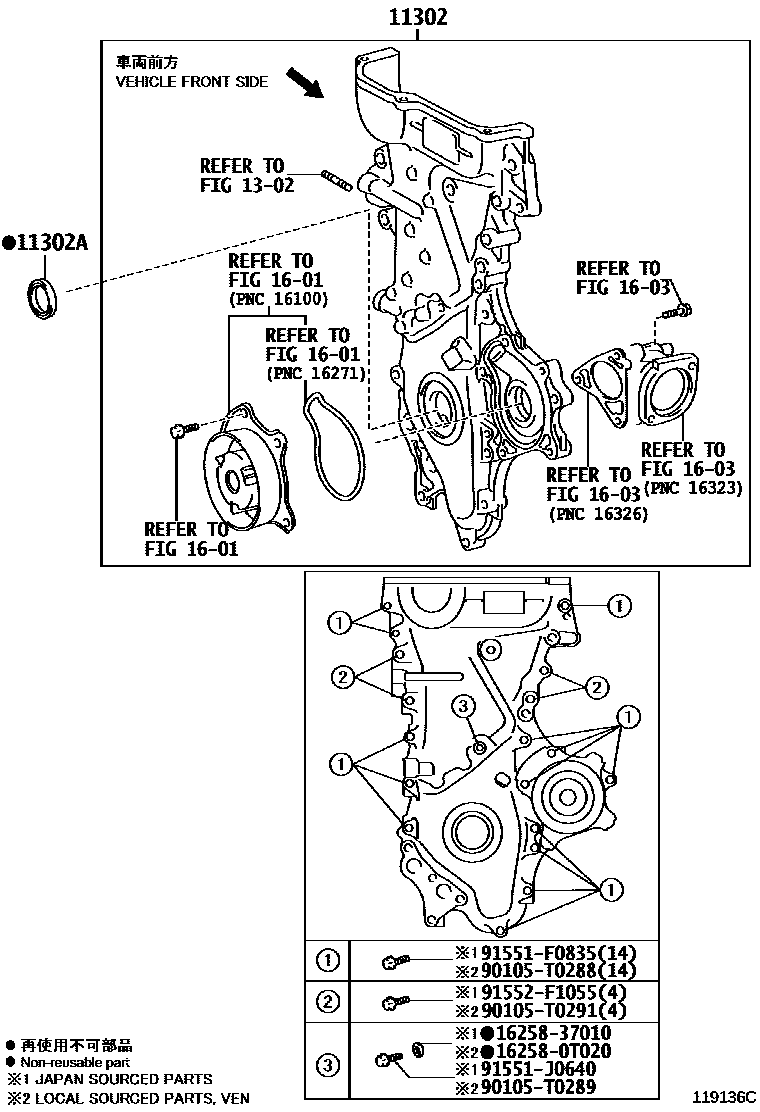

TIMING GEAR COVER & REAR END PLATE

0001 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37011i2ZR#..ZRE172201403-201908

main11310-37032i3ZRFBE..ZRE173201403-202002

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i2ZR#,3ZRFBE..ZRE17#201403-201908

main90311-38089i3ZRFE..ZRE173201501-201510

(J)

main90311-38096i3ZRFE..ZRE173201511-202002

(J)

main90311-T0048i3ZRFE..ZRE173..4FC201501-202002

(L)

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

162580T020GASKET(FOR HEATER RETURN)

main16258-0T020

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105T0288

main90105-T0288

90105T0289

main90105-T0289

90105T0291

main90105-T0291

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

13 parts on this diagram · 2 diagrams in section
