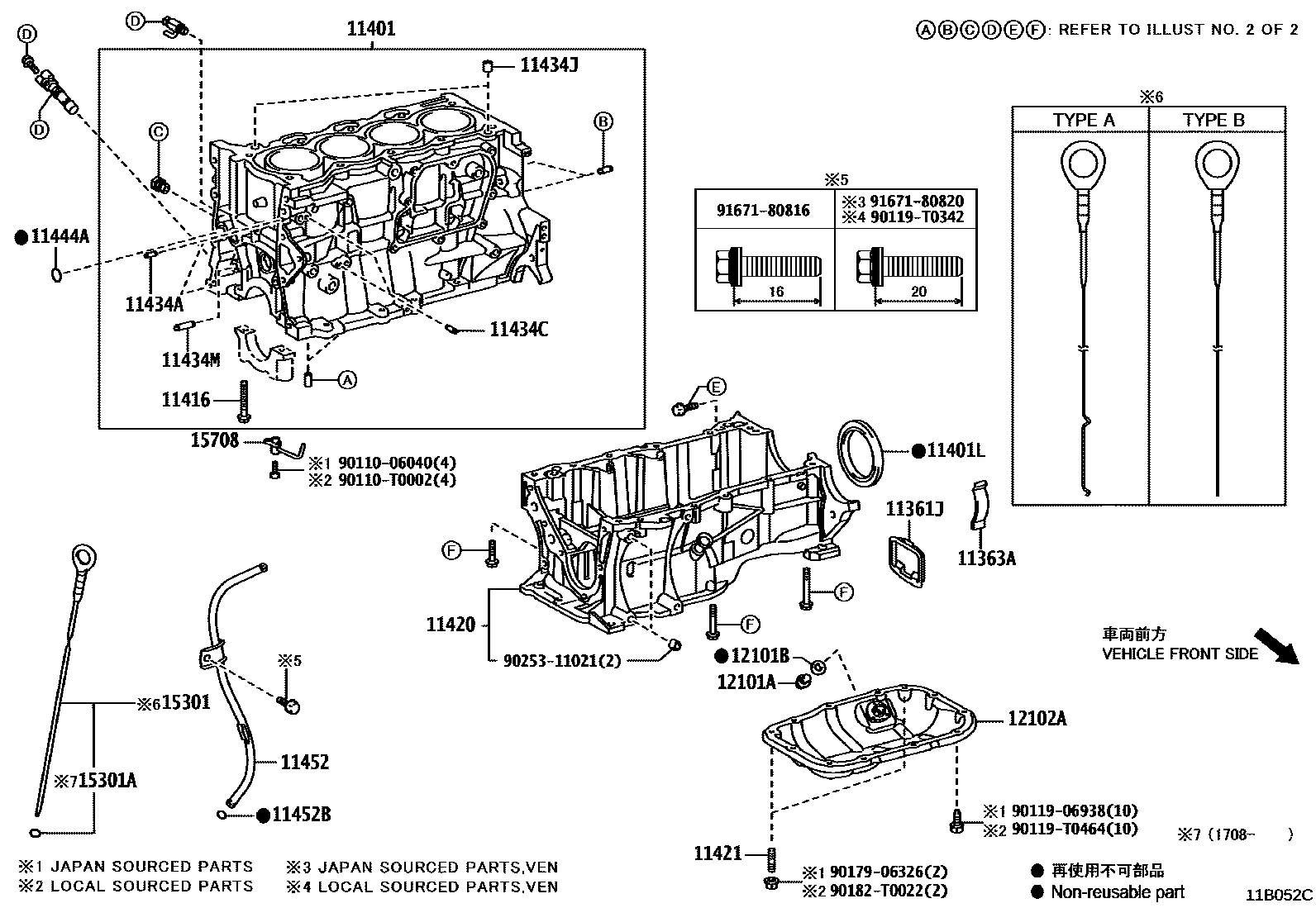

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401LSEAL, ENGINE REAR OIL
(J)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(L)
11421BOLT, STUD(FOR OIL PAN)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
(L)
11444ARING, O
MADE IN THAILAND
11452GUIDE, OIL LEVEL GAGE
(L)
(L)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(L)
(J)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(L)
(J)
15301GAGE SUB-ASSY, OIL LEVEL
TYPE B:REFER ILLUST.
(L)
(L)
TYPE A:REFER ILLUST.
15301ARING, O(FOR OIL LEVEL GAGE)
(L)
(J)
15708NOZZLE SUB-ASSY, OIL, NO.1
(L)
(J)
9011006040
main90110-06040
90110T0002
main90110-T0002
9011906938
main90119-06938
90119T0342
main90119-T0342
90119T0464
main90119-T0464
9017906326
main90179-06326
90182T0022
main90182-T0022
9025311021
main90253-11021
9167180816
main91671-80816
9167180820
main91671-80820
30 parts on this diagram · 4 diagrams in section
