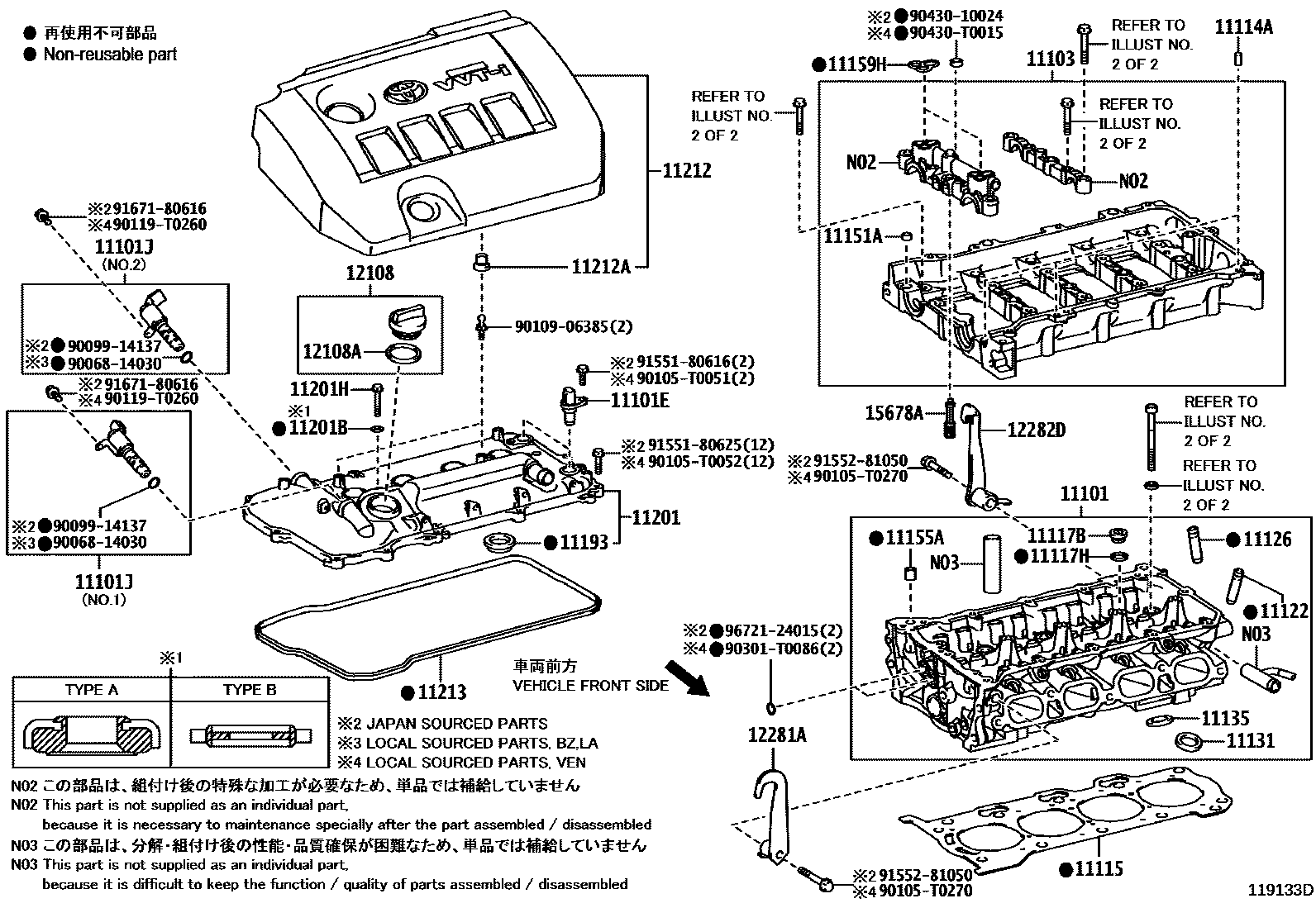

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(J)
11101ESENSOR, CAM POSITION
(J)
(L)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
(L),NO.1
(L),NO.2
(L),NO.1
(L),NO.2
NO.1
(J),NO.1
(J),NO.2
NO.2
11103HOUSING SUB-ASSY, CAMSHAFT
(L)
(L)
(J)
11114APIN, STRAIGHT
L=14,OD=6
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,(J)
L=12.5,OD=8
L=12.5,OD=8,(L)
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
(L)
(J)
11193GASKET, SPARK PLUG TUBE
(L)
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
(L),T/P B:REF.ILLUST
(J),T/P B:REF.ILLUST
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
11201HBOLT(FOR CYLINDER HEAD COVER)
(L)
(J)
11212COVER, CYLINDER HEAD, NO.2
(L)
(J)
11212ACUSHION, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
(L)
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
(L)
12281AHANGER, ENGINE, NO.1
W(PAINTED)
W/O(PAINTED)
12282DHANGER, ENGINE, NO.2
W(PAINTED)
W/O(PAINTED)
15678AFILTER, OIL CONTROL VALVE
(L)
(J)
9006814030
main90068-14030
9009914137
main90099-14137
90105T0051
main90105-T0051
90105T0052
main90105-T0052
90105T0270
main90105-T0270
9010906385
main90109-06385
90119T0260
main90119-T0260
90301T0086
main90301-T0086
9043010024
main90430-10024
90430T0015
main90430-T0015
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180616
main91671-80616
9672124015
main96721-24015
42 parts on this diagram · 4 diagrams in section
