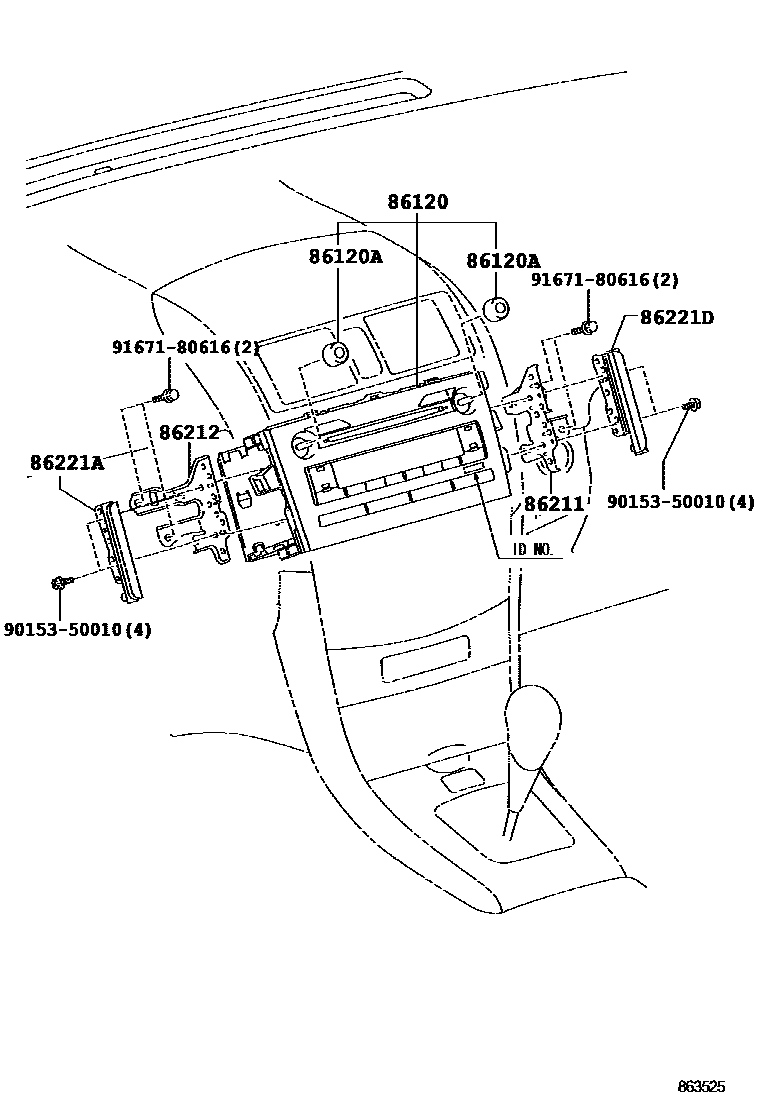

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02840iZZE141..ATM200803-201003

PANASONIC,ID=52829

main86120-02840iZZE141..ATM200803-201003

PANASONIC,ID=52829,LATIN AMERICA SPEC

main86120-02840iZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

PANASONIC,ID=52829,LOW GRADE PACKAGE

main86120-02850iZZE142..(XEGLI,XEI)..BZ200803-201103

PANASONIC,ID=52830

main86120-02850iZZE142..(XEGLI,XEI)..BZ200803

PANASONIC,ID=52830,LATIN AMERICA SPEC&LOW GRADE PACKAGE

main86120-02850iZZE142..(XEGLI,XEI)..BZ200803

PANASONIC,ID=52830,LOW GRADE PACKAGE

main86120-02860iZRE143..ALT200803-201103

PANASONIC,ID=52831

main86120-02890iZZE142..MXC200803

PANASONIC,ID=52837

main86120-02E80iZRE142..GLI,XEI201103-201403

PANASONIC,ID=52888

main86120-02E90iZRE142..XEI201103-201403

PANASONIC,ID=52889

main86120-02E90iZRE142..XEI201103-201403

PANASONIC,ID=52889,SPORT PACKAGE

main86120-02E90iZRE142..MTM..XEI201103-201403

PANASONIC,ID=52889,UP GRADE PACKAGE

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25151iZZE142..MXC200803

LOW GRADE PACKAGE

main90011-25151iZZE141..ATM200803-201003

LATIN AMERICA SPEC

main90011-25152iZZE142..(XEGLI,XEI)..BZ200803

LATIN AMERICA SPEC&LOW GRADE PACKAGE

main90011-25152iZZE142..SEG..HTWCF200803-201403

main90011-25152iZZE142..SEG..HTWC;ZZE142..(XEGLI,XEI)..BZ200803

LOW GRADE PACKAGE

86211BRACKET, RADIO, NO.1

main86211-02250iZZE142..SEG..HTWCF200803-201105

86212BRACKET, RADIO, NO.2

main86212-02250iZZE142..SEG..HTWCF200803-201105

86221APANEL, RADIO RECEIVER

main86221-52050iZZE141..ATM200803-201003

LATIN AMERICA SPEC

main86221-52050iZZE141..MTM200803

LATIN AMERICA SPEC&LOW GRADE PACKAGE

main86221-52050iZZE141..ATM201003-201403

86221DPANEL, RADIO RECEIVER

main86221-52060iZZE141..ATM200803-201003

LATIN AMERICA SPEC

main86221-52060iZZE141..MTM200803

LATIN AMERICA SPEC&LOW GRADE PACKAGE

main86221-52060iZZE141..ATM201003-201403

9015350010

main90153-50010

9167180616

main91671-80616

8 parts on this diagram · 3 diagrams in section
