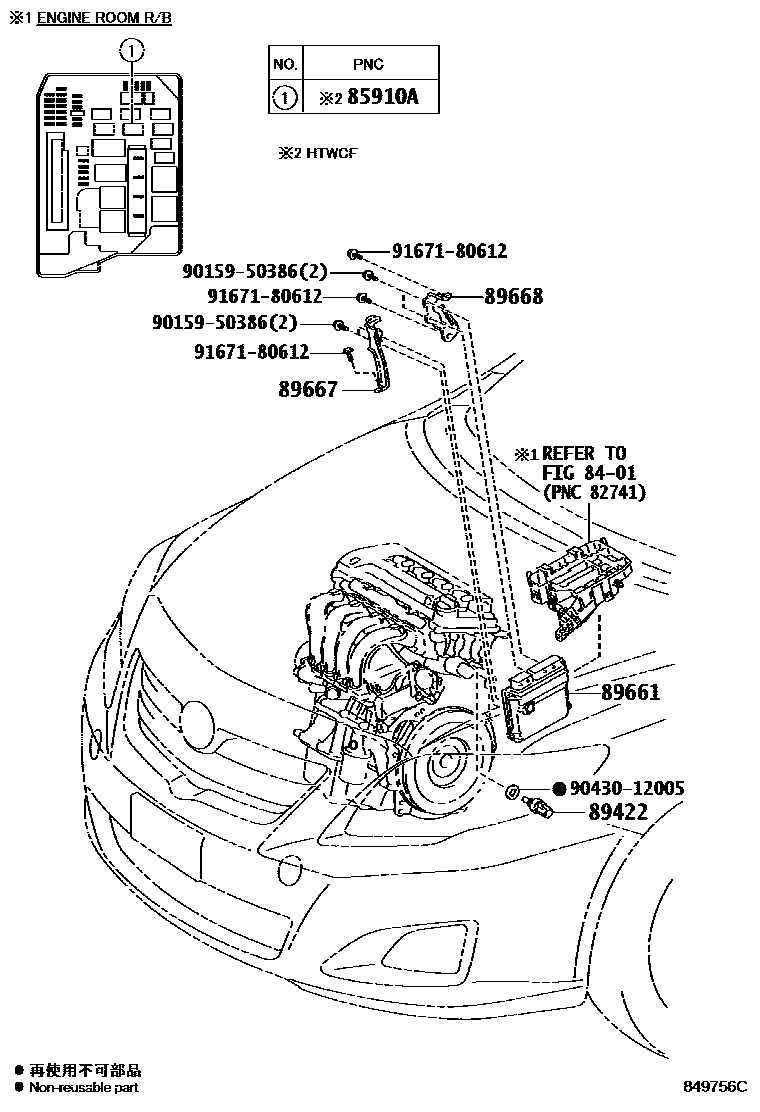

ELECTRONIC FUEL INJECTION SYSTEM

0001 1W/O(CNG) 0002 1W(CNG) 0003 1 0005 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iZRE143200803-201103

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE14#201103-201403

main89422-35010iZZE142..CNG200803-201105

89661COMPUTER, ENGINE CONTROL

main89661-02P20iZZE142..MTM..HTWCF200803-200901

main89661-02P30iZZE142..ATM..HTWCF200803-200901

main89661-02P50supersedes 89661-02P40iZZE142..MTM..HTWC..VEN200809

main89661-02P51iZZE142..MTM201105

main89661-02P60iZZE142..MTM..MXC200803

main89661-02P80supersedes 89661-02P70iZZE142..ATM..CNG200809-201105

main89661-02P81iZZE142..ATM201105

main89661-02P90iZZE142..ATM..MXC200803

main89661-02Q10iZZE141..MTM200803

main89661-02V90iZZE142..MTM..HTWCF200901

main89661-02W00iZZE142..ATM..HTWCF200901-201003

main89661-02X30iZRE143201003-201103

main89661-02X31iZRE143201103-201403

main89661-0Z440iZRE142..MTM..HTWCF201103-201403

main89661-0Z470iZRE142..MTM..(SEG,XEI)201103-201403

main89661-0Z490iZRE142..MTM..XLI201103-201403

COLOMBIA SPEC

main89661-02R70supersedes 89661-02X50iZZE142..ATM..XEGLI200803-200901

LOW GRADE PACKAGE&ABS-WITHOUT

main89661-02W10supersedes 89661-02X50iZZE142..ATM..XEGLI200901-201003

LOW GRADE PACKAGE&ABS-WITHOUT

sub89661-02W11

main89661-02X60supersedes 89661-02X50iZZE142..ATM..HTWCF201003

LOW GRADE PACKAGE&ABS-WITHOUT

sub89661-02X61

main89661-0Z460supersedes 89661-0Z450iZRE142..ATM..HTWCF201103-201403

LOW GRADE PACKAGE&ABS-WITHOUT

main89661-0Z500supersedes 89661-0Z510iZRE142..ATM..(SEG,XEI)201103-201403

COLOMBIA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02260iZRE143200803-201103

main89667-12250supersedes 89667-02260iZZE14#..HTWC200803

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02230iZZE142..SEG..HTWCF200803-201003

main89668-12170supersedes 89668-02240iZRE142..HTWC201103-201403

9015950386

main90159-50386

9043012005

main90430-12005

9167180612

main91671-80612

9 parts on this diagram · 4 diagrams in section
