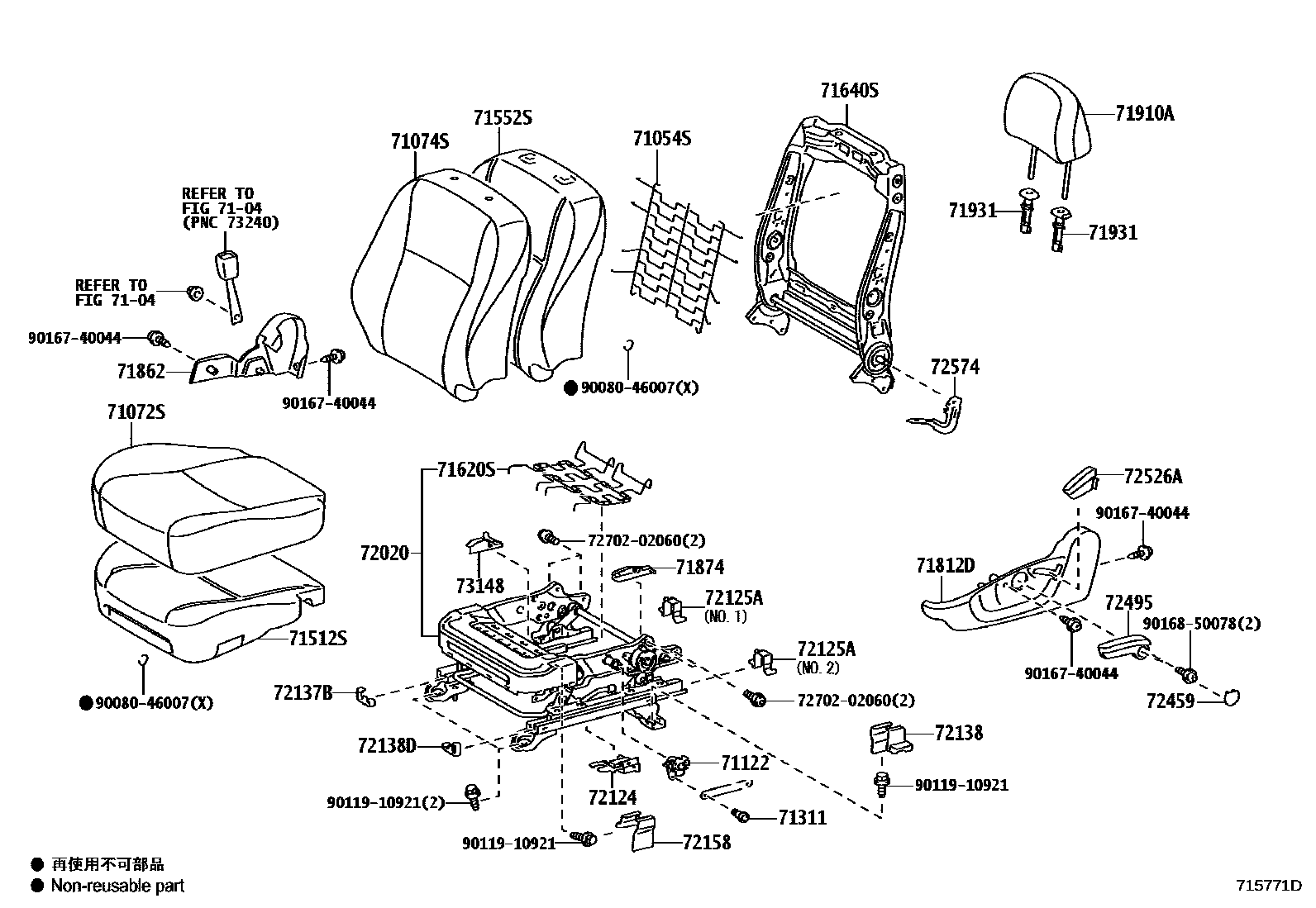

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT-W(SRS SIDE AIR BA0003 1DRIVER SEAT-W(POWER SEAT) 0004 1PASSENGER SEAT 0005 1PASSENGER SEAT-W(SRS SIDE AIR

7104

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-02180iZZE142..SEG..HTWCF200803-201003

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-02N30-B1iZZE142..XEI..BZ200803-201103

GRAY,TRIM1#

main71072-02N40-E0iZRE14#..ALT,SEG201103-201108

GREGE,TRIM4#

main71072-02N40-E3iZRE14#..ALT,SEG201108-201403

GREGE,TRIM4#

main71072-02N50-B0iZZE142..XEI..VEN200809-201105

GRAY,TRIM1#

main71072-02N60-B0iZZE142..GLI201105-201108

GRAY,TRIM1#

main71072-02N60-B3iZZE142..GLI201108-201411

GRAY,TRIM1#

main71072-02N80-B0iZRE143..XEI201003-201103

GRAY,TRIM1#

main71072-02N80-B3iZRE142..XEI201108-201403

COLOMBIA SPEC&UP GRADE PACKAGE,GRAY,TRIM1#

main71072-02Q70-B0supersedes 71072-02Q70-B0iZZE142..MTM..HTWC..BZ200803-201103

GRAY,TRIM1#

main71072-02Q70-E0iZZE142..MXC200803-201103

GREGE,TRIM4#

main71072-02X80-B1iZZE142..XEI201105-201108

GRAY,TRIM1#

main71072-02X80-B2iZZE142..XEI201108-201411

GRAY,TRIM1#

main71072-02X90-B1iZRE142..MTM..XEI201103-201108

GRAY,TRIM1#

main71072-02X90-B2supersedes 71072-02X70-B2iZRE142..MTM..XEI201108-201403

GRAY,TRIM1#

main71072-0Z280-B2iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DARK GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-02U40-B0iZZE142..XEI..BZ200803-200910

GRAY,TRIM1#

main71074-02U41-B0iZZE142..XEI..BZ200910-201103

GRAY,TRIM1#

main71074-02U50-E0iZZE142..SEG200803-200910

GREGE,TRIM4#

main71074-02U51iZZE142..SEG..HTWCF200910-201003

main71074-02U51-B0iZRE142..XEI201103-201108

GRAY,TRIM1#

main71074-02U51-B2iZRE142..XEI201108-201403

COLOMBIA SPEC&UP GRADE PACKAGE,GRAY,TRIM1#

main71074-02U51-E0iZRE14#..ALT,SEG201103-201108

GREGE,TRIM4#

main71074-02U51-E2iZRE14#..ALT,SEG201108-201403

GREGE,TRIM4#

main71074-02X90-B0supersedes 71074-02X90-B0iZZE142..MTM..HTWC..BZ200803-200910

GRAY,TRIM1#

main71074-02X90-E0iZZE142..MXC200803-200910

GREGE,TRIM4#

main71074-02X91-B0iZZE142..MTM..HTWC..BZ200910-201103

GRAY,TRIM1#

main71074-02X91-E0iZZE142..MXC200910-201103

GREGE,TRIM4#

main71074-02Y00-B0iZZE142..XEI..VEN200809-200910

GRAY,TRIM1#

main71074-02Y01-B0iZZE142..XEI..VEN200910-201105

GRAY,TRIM1#

main71074-02Y10-B0iZZE142..GLI200809-200910

GRAY,TRIM1#

main71074-02Y11-B0iZZE142..GLI200910-201105

GRAY,TRIM1#

main71074-02Y11-B3iZZE142..GLI201105-201108

GRAY,TRIM1#

main71074-02Y11-B4iZZE142..GLI201108-201411

GRAY,TRIM1#

main71074-0Z560-B1iZRE142..MTM..XEI201103-201108

GRAY,TRIM1#

main71074-0Z560-B2supersedes 71074-0Z570-B2iZRE142..MTM..XEI201108-201403

GRAY,TRIM1#

main71074-0Z580-B1iZZE142..XEI201105-201108

GRAY,TRIM1#

main71074-0Z580-B2iZZE142..XEI201108-201411

GRAY,TRIM1#

main71074-02U50-B0iZZE142..(XEGLI,XEI)..BZ200803-200910

UP GRADE PACKAGE,GRAY,TRIM1#

main71074-0Z880-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DARK GRAY,TRIM1#

71122BRACKET, FRONT SEAT CUSHION, LH

main71122-02010iZZE142..CNG200803-201105

71311PIN, FRONT SEAT HINGE

main71311-02010iZRE143..XEI200803-201103

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02340iZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803

main71512-02350iZZE142..SEG..HTWC200803

main71512-02360iZZE142..CNG200809-201105

main71512-02790iZRE14#..GLI,XEI,XLI201307-201403

main71512-02800iZRE14#..ALT,SEG201307-201403

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02540supersedes 71552-02540iZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE&REAR SEAT-FIXED TYPE

main71552-02560iZZE142..CNG200809-201105

main71552-02A10iZRE142..MTM..XEI201307-201403

COLOMBIA SPEC

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71051-02120iZRE14#;ZZE142..CNG201103

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-02420iZZE142..SEG..HTWCF200803-201003

main71640-02440iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02420-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201105

GRAY,TRIM1#

main71812-02420-E0iZZE142..MXC200803-201103

GREGE,TRIM4#

main71812-02430-E0iZRE14#..ALT,SEG201103-201403

GREGE,TRIM4#

main71812-02420-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-02080-B0iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

GRAY,TRIM1#

main71862-02080-E0iZRE143,ZZE142..ALT,CE,SEG200803-201103

GREGE,TRIM4#

main71862-02080-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-02110iZZE142..SEG..HTWCF200803-201003

71910AHEADREST ASSY, FRONT SEAT

main71910-02D60-B1×2iZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201103

GRAY,TRIM1#

main71910-02D60-E1×2iZZE142..MXC200803-201103

GREGE,TRIM4#

main71910-02D70-E0×2iZZE142..SEG200803-201002

GREGE,TRIM4#

main71910-02D71×2iZRE142..XEI201103-201403

COLOMBIA SPEC&UP GRADE PACKAGE

main71910-02D71-B0×2iZRE143..XEI201003-201103

GRAY,TRIM1#

main71910-02D71-E0×2iZRE143..ALT;ZZE142..SEG..HTWC201002-201103

GREGE,TRIM4#

main71910-02D80-B0×2iZZE142..XEI..VEN200809-201105

GRAY,TRIM1#

main71910-02D90-B0×2iZZE142..GLI200809-201105

GRAY,TRIM1#

main71910-02D90-B1×2iZZE142..GLI201105-201411

GRAY,TRIM1#

main71910-02F80-B0×2iZRE142..GLI,XEI,XLI201103-201403

GRAY,TRIM1#

main71910-02F90-B0×2iZZE142..XEI201105-201411

GRAY,TRIM1#

main71910-02D70-B0×2iZZE142..(XEGLI,XEI)..BZ200803-201002

UP GRADE PACKAGE,GRAY,TRIM1#

main71910-02D71-B2×2iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02310-B0×2iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

W(LOCK),GRAY,TRIM1#

main71930-02310-E0×2iZRE143,ZZE142..ALT,CE,SEG200803-201103

W(LOCK),GREGE,TRIM4#

main71931-02110-B1×2iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201105

W/O(LOCK),GRAY,TRIM1#

main71931-02110-E0×2iZRE143,ZZE142..ALT,CE,SEG200803-201103

W/O(LOCK),GREGE,TRIM4#

main71930-02310-B1×2iZRE143..XEI;ZRE142..MTM..XEI201203-201403

W(LOCK),COLOMBIA SPEC&SPORT PACKAGE,DK.GRAY,TRIM1#

main71931-02110-B0×2iZRE143..XEI;ZRE142..MTM..XEI201203-201403

W/O(LOCK),SPORT PACKAGE,DK.GRAY,TRIM1#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02380iZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

main72020-02390iZZE142..SEG..HTWCF200803-201003

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-02060iZRE143..XEI200803-201103

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-02030×2iZRE143200803-201103

NO.1

sub72125-02050

main72125-02040×2iZRE14#;ZZE142..CNG201103

NO.2

sub72125-02060

72137COVER, SEAT TRACK, OUTER RH

main72137-02210iZZE142..SEG..HTWCF200803-201003

72137BCOVER, SEAT TRACK, RH

main72137-02230iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

72138COVER, SEAT TRACK, OUTER LH

main72138-02170iZZE142..SEG..HTWCF200803-201003

72138DCOVER, SEAT TRACK, OUTER, LH

main72138-02180iZRE143200803-201103

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-02180iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

72459CAP, VERTICAL SEAT ADJUSTER KNOB

main72459-02030-B1iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201105

GRAY,TRIM1#

main72459-02030-E0iZZE142..MXC200803-201103

GREGE,TRIM4#

main72459-02030-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

72495HANDLE, VERTICAL ADJUSTING, LH

main72494-02030-B1iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

GRAY,TRIM1#

main72494-02030-E0iZZE142..MXC200803-201103

GREGE,TRIM4#

main72494-02030-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-02080-B1iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

GRAY,TRIM1#

main72526-02080-E0iZZE142..MXC200803-201103

GREGE,TRIM4#

main72526-02080-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

72574LEVER, RECLINING CONTROL, LH

main72574-02040iZRE143..XEI200803-201103

73148COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, LH

main73148-02010iZRE143200803-201103

7270202060BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-02060

9008046007

main90080-46007

9011910921

main90119-10921

9016740044

main90167-40044

9016850078

main90168-50078

33 parts on this diagram · 5 diagrams in section
