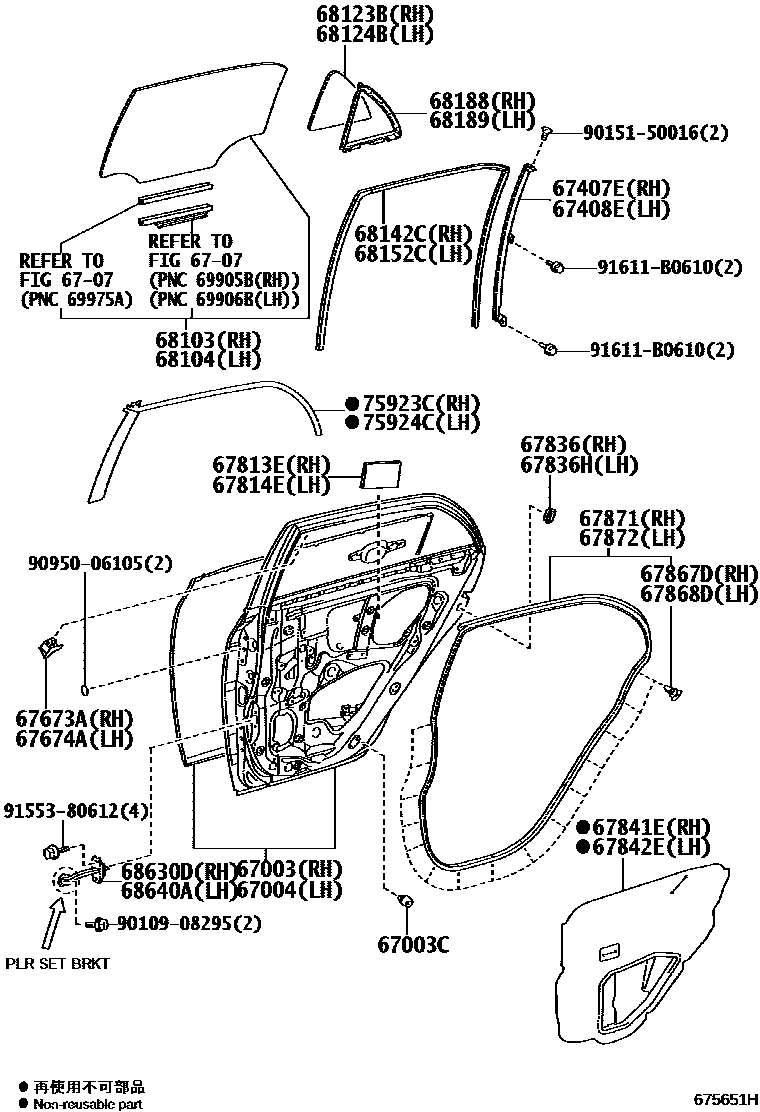

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02901iZRE14#;ZZE142..CNG200803-201105

sub67003-12A20

67003CCUSHION, REAR DOOR PANEL

main90541-09138iZZE14#200803-200807

sub90541-09124

main90541-09143iZRE14#;ZZE142..CNG200808-201105

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02901iZRE14#;ZZE142..CNG200803-201105

sub67004-12A20

6707

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12290iZRE14#;ZZE142..CNG200803-201105

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12290iZRE14#;ZZE142..CNG200803-201105

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48010iZZE142..CNG200803-201105

67813ESHEET, QUARTER PANEL SILENCER, RH

main67813-12030iZRE14#,ZZE142201305

main67817-47010iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201304

67814ESHEET, QUARTER PANEL SILENCER, LH

main67813-12030iZRE14#,ZZE142201305

main67817-47010iZZE142..SEG..HTWCF200803-201304

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iZRE143200803-201105

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iZZE142..SEG..HTWCF200803-201105

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02210iZZE142..SEG..HTWCF200803-201105

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02190iZZE142..SEG..HTWCF200803-201105

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iZZE142..SEG..HTWCF200803-201105

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iZZE142..SEG..HTWCF200803-201105

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02200iZZE142..SEG..HTWCF200803-201105

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02200iZZE142..SEG..HTWCF200803-201105

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02270iZRE14#200803-201205

*TEM,T=3.5,GREEN

sub68103-02271

main68103-02271iZRE14#,ZZE142201206

*TEM,T=3.5,GREEN

main68103-02300iZZE142200809-201206

*TEM,T=3.5,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02270iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201205

*TEM,T=3.5,GREEN

sub68104-02271

main68104-02271iZRE14#,ZZE142201206

*TEM,T=3.5,GREEN

main68104-02300iZZE142..HTWC..VEN200809-201206

*TEM,T=3.5,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02220iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201205

*TEM,T=3.5 GREEN

sub68123-02221

main68123-02221iZRE14#,ZZE142201206

*TEM,T=3.5 GREEN

main68123-02260iZZE142..CNG200809-201206

*TEM,T=3.5 GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02220iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201205

*TEM,T=3.5 GREEN

sub68124-02221

main68124-02221iZRE14#,ZZE142201206

*TEM,T=3.5 GREEN

main68124-02260iZZE142200809-201206

*TEM,T=3.5 GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02210iZZE142..SEG..HTWC;ZRE143,ZZE14#..(ALT,CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201004

main68142-02240iZRE143201004-201403

main68142-12290iZZE142..CNG200809-201105

68152CRUN, REAR DOOR GLASS, LH

main68152-02210iZZE142..SEG..HTWCF200803-201004

main68152-02240iZRE14#201004-201403

main68152-12200iZZE142..CNG200809-201105

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02150iZZE142..SEG..HTWCF200803-201105

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02150iZRE143200803-201105

68630DCHECK ASSY, REAR DOOR, RH

main68630-02220iZRE14#;ZZE142..CNG201103-201310

PLR SET BRKT:BLACK

main68630-02220iZZE142..SEG..HTWCF200803-201105

main68630-02221iZRE14#,ZZE142201310

PLR SET BRKT:SILVER

68640ACHECK ASSY, REAR DOOR, LH

main68630-02220iZZE142..CNG200803-201105

main68630-02220iZRE14#;ZZE142..CNG201103-201310

PLR SET BRKT:BLACK

main68630-02221iZRE14#,ZZE142201310

PLR SET BRKT:SILVER

75923CTAPE, BLACK OUT, NO.2 RH

main75923-02160iZZE142200809-201105

main75923-02340iZRE14#201305-201403

75924CTAPE, BLACK OUT, NO.2 LH

main75924-02170iZZE142..CNG200809-201105

main75924-02340iZRE14#201305-201403

9010908295

main90109-08295

9015150016

main90151-50016

9095006105

main90950-06105

9155380612

main91553-80612

91611B0610

main91611-B0610

35 parts on this diagram · 2 diagrams in section
