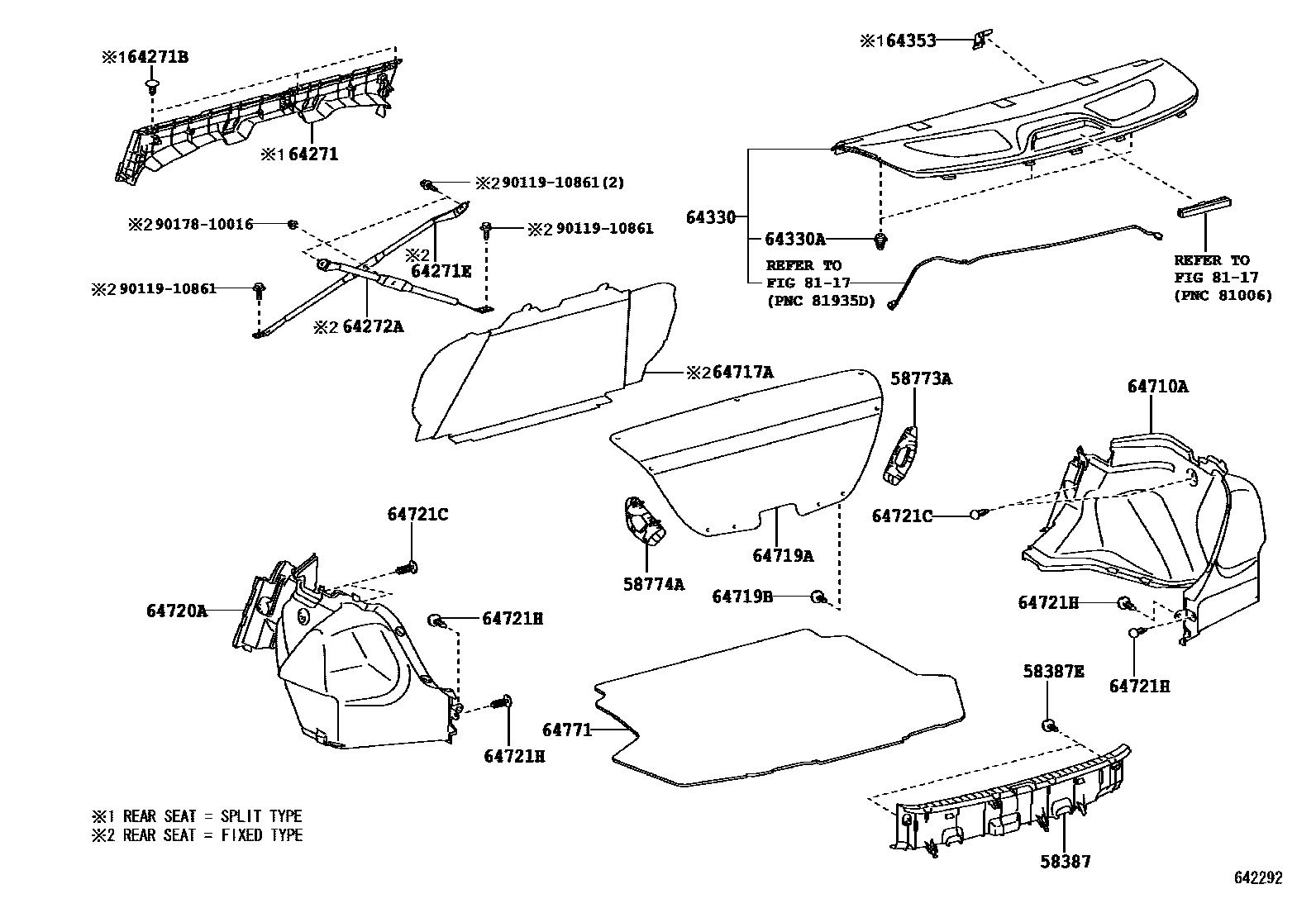

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-02150iZZE141..ATM200803-201003

main58387-02160supersedes 58387-02160iZZE141..MTM;ZZE142..HTWC..(BZ,MXC)200803

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2iZRE143,ZZE14#200803-201105

BLACK

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02150iZRE14#;ZZE142..CNG201103

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02140iZRE143200803-201103

64271BOARD, ROOM PARTITION, NO.1

main64271-02160iZZE142..(XEGLI,XEI)..BZ;ZZE142..(GLI,SEG)..HTWC200803

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3iZZE142..GLI,SEG,XEGLI;ZRE143,ZZE142..(ALT,XEI)..BZ200803-201105

BLACK

64271EPANEL, ROOM PARTITION

main64241-02060supersedes 64241-02060iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN)200803

LOW GRADE PACKAGE

64272APANEL, ROOM PARTITION, LH

main64242-02060supersedes 64242-02060iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN)200803

LOW GRADE PACKAGE

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02650-B0iZZE142..GLI200809-201105

MD.GRAY,TRIM1#

main64330-02650-B1iZZE142..GLI201105-201411

DK.GRAY,TRIM1#

main64330-02800-B0iZZE141;ZZE142..(CE,XEI)..(MXC,VEN)200803-201105

MD.GRAY,TRIM1#

main64330-02800-B1supersedes 64330-02810-B1iZRE142..XLI;ZZE142..XEI..CNG201103-201411

DK.GRAY,TRIM1#

main64330-02800-E0iZZE142..MXC200803-201103

ASH BROWN,TRIM4#

main64330-02810-B0iZRE143,ZZE142..(XEGLI,XEI)..BZ200803-201103

MD.GRAY,TRIM1#

main64330-02810-B1iZRE143..XEI;ZRE142..MTM..XEI201103-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

main64330-02810-E0iZRE143,ZZE142..ALT,SEG200803-201103

ASH BROWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iZRE14#;ZZE142..CNG201103

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02070-B0iZZE142..GLI,XEGLI;ZRE143,ZZE142..XEI..BZ200803-201105

MD.GRAY,TRIM1#

main64353-02070-B1iZRE143..XEI;ZRE142..MTM..XEI201103-201403

SPORT PACKAGE,DK.GRAY,TRIM1#

main64353-02070-E0iZRE143,ZZE142..ALT,SEG200803-201103

ASH BROWN,TRIM4#

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02190-C0supersedes 64710-YY010-C0iZRE14#..GLI,XEI,XLI201103-201403

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02150supersedes 64717-02150iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN)200803

LOW GRADE PACKAGE&REAR SEAT-FIXED TYPE

main64717-02170iZZE142..CNG200906-201105

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02130-C0iZZE142..MXC200803-201103

BLACK,TRIM1#,4#

main64719-02150-C0iZZE142..VEN200809-201105

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×9iZRE143,ZZE14#200803-201105

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02190-C0supersedes 64720-YY010-C0iZZE142..MXC200803-201103

BLACK,TRIM1#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×4iZRE143,ZZE14#200803-201105

BLACK

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-07076-C0×4iZRE14#;ZZE142..CNG201103-201411

BLACK

sub90467-07041

sub90467-A0016

64771COVER, SPARE WHEEL

main64771-02210-C0supersedes 64771-02260-C0iZZE14#..(XEGLI,XEI,XLI)..BZ200803-201001

BLACK,TRIM1#,4#

main64771-02310-C0iZRE14#..ALT,SEG201103-201403

BLACK,TRIM1#

8117

9011910861

main90119-10861

9017810016

main90178-10016

22 parts on this diagram · 2 diagrams in section
