INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iZRE143200803-201105

62111CBOARD, COWL SIDE TRIM, RH

main62111-02230-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main62111-02230-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62111-02230-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62111-02230-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-02230-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62112-02230-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201411

GRAY,TRIM1#

main62112-02230-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62112-02230-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-02350-B0iZZE142..CNG;ZRE14#..GLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

main62211-02350-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iZRE14#,ZZE142200803-201210

62212GARNISH, FRONT PILLAR, LH

main62212-02350-B0iZZE142..CNG;ZRE14#..GLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

main62212-02350-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52010iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iZZE142..SEG..HTWCF200803-201105

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02190-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201110

GRAY,TRIM1#

sub62311-02191

main62311-02190-E0iZRE143,ZZE142..ALT,CE,SEG200803-201110

GREGE,TRIM4#

sub62311-02191

main62311-02191-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62311-02191-B0iZRE143..XEI;ZRE142..MTM..XEI201111-201411

GRAY,TRIM1#

main62311-02191-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62311-02191-E0iZRE14#..ALT,SEG201111-201403

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02190-B0iZZE142..CNG;ZRE14#..GLI,XEI,XLI200803-201110

GRAY,TRIM1#

sub62312-02191

main62312-02190-E0iZRE14#..ALT,SEG200803-201110

GREGE,TRIM4#

sub62312-02191

main62312-02191-B0iZRE143..XEI;ZRE142..MTM..XEI201111-201411

GRAY,TRIM1#

main62312-02191-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62312-02191-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62312-02191-E0iZRE14#..ALT,SEG201111-201403

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02230-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201110

GRAY,TRIM1#

sub62331-02231

main62331-02230-E0iZRE14#..ALT,SEG200803-201110

GREGE,TRIM4#

sub62331-02231

main62331-02231-B0iZZE142;ZRE142..GLI,XLI;ZRE142..ATM..XEI201111-201411

GRAY,TRIM1#

main62331-02231-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62331-02231-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62331-02231-E0iZRE14#..ALT,SEG201111-201403

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02230-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201110

GRAY,TRIM1#

sub62332-02231

main62332-02230-E0iZRE14#..ALT,SEG200803-201110

GREGE,TRIM4#

sub62332-02231

main62332-02231-B0iZRE143..XEI;ZRE142..MTM..XEI201111-201411

GRAY,TRIM1#

main62332-02231-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62332-02231-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62332-02231-E0iZRE14#..ALT,SEG201111-201403

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-02200-B0iZZE142..CNG;ZRE14#..GLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

main62410-02200-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-02190-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

main62420-02190-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02200-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201411

GRAY,TRIM1#

main62413-02200-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62413-02200-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62413-02200-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main62217-13010iZRE14#;ZZE142..CNG200803-201105

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02200-B0iZRE143..XEI;ZRE142..MTM..XEI200803-201411

GRAY,TRIM1#

main62414-02200-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62414-02200-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62414-02200-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02260-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

main62470-02260-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iZRE14#,ZZE142200803-201210

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-02090-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201105

MD.GRAY,TRIM1#

main62473-02090-B1iZRE14#..ALT,SEG201103-201403

DK.GRAY,TRIM4#

main62473-02090-B1iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

DK.GRAY,TRIM1#

main62473-02090-E0iZRE143,ZZE142..ALT,CE,SEG200803-201103

ASH BROWN,TRIM4#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-02090-B0iZRE143,ZZE14#..CE,GLI,XEGLI,XEI,XLI200803-201105

MD.GRAY,TRIM1#

main62474-02090-B1iZRE14#..ALT,SEG201103-201403

DK.GRAY,TRIM4#

main62474-02090-B1iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

DK.GRAY,TRIM1#

main62474-02090-E0iZRE143,ZZE142..ALT,CE,SEG200803-201103

ASH BROWN,TRIM4#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02260-B0iZZE142..CNG;ZRE14#..GLI,XEI,XLI200803-201411

LT.GRAY,TRIM1#

main62480-02260-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161iZZE142..SEG..HTWCF200803-201210

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02290-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main62551-02290-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62551-02290-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62551-02290-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02270-B0iZRE143..XEI;ZRE142..MTM..XEI200803-201411

GRAY,TRIM1#

main62552-02270-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main62552-02270-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main62552-02270-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-10167iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

62591DPLATE, SIDE TRIM BASE, NO.1

main62591-12020iZRE143201011-201105

LH

main62592-12020iZZE142..CNG201011-201105

RH

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-02210-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main67911-02210-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main67911-02210-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main67911-02210-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-02210-B0iZRE143..XEI;ZRE142..MTM..XEI200803-201411

GRAY,TRIM1#

main67911-02210-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main67911-02210-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main67911-02210-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02240-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main67913-02240-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main67913-02240-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main67913-02240-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02240-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main67914-02240-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main67914-02240-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main67914-02240-E0iZRE143,ZZE142..ALT,CE,SEG200803-201403

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02260-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main67917-02260-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main67917-02260-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main67917-02260-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02260-B0iZRE143..XEI;ZRE142..MTM..XEI201203-201403

GRAY,TRIM12

main67918-02260-B0iZZE142..CNG;ZRE142..GLI,XLI;ZRE142..ATM..XEI200803-201411

GRAY,TRIM1#

main67918-02260-B1iZRE143..XEI;ZRE142..MTM..XEI201203-201403

DK.GRAY,TRIM13

main67918-02260-E0iZRE14#..ALT,SEG200803-201403

GREGE,TRIM4#

7104

9018905096

main90189-05096

9356855018

main93568-55018

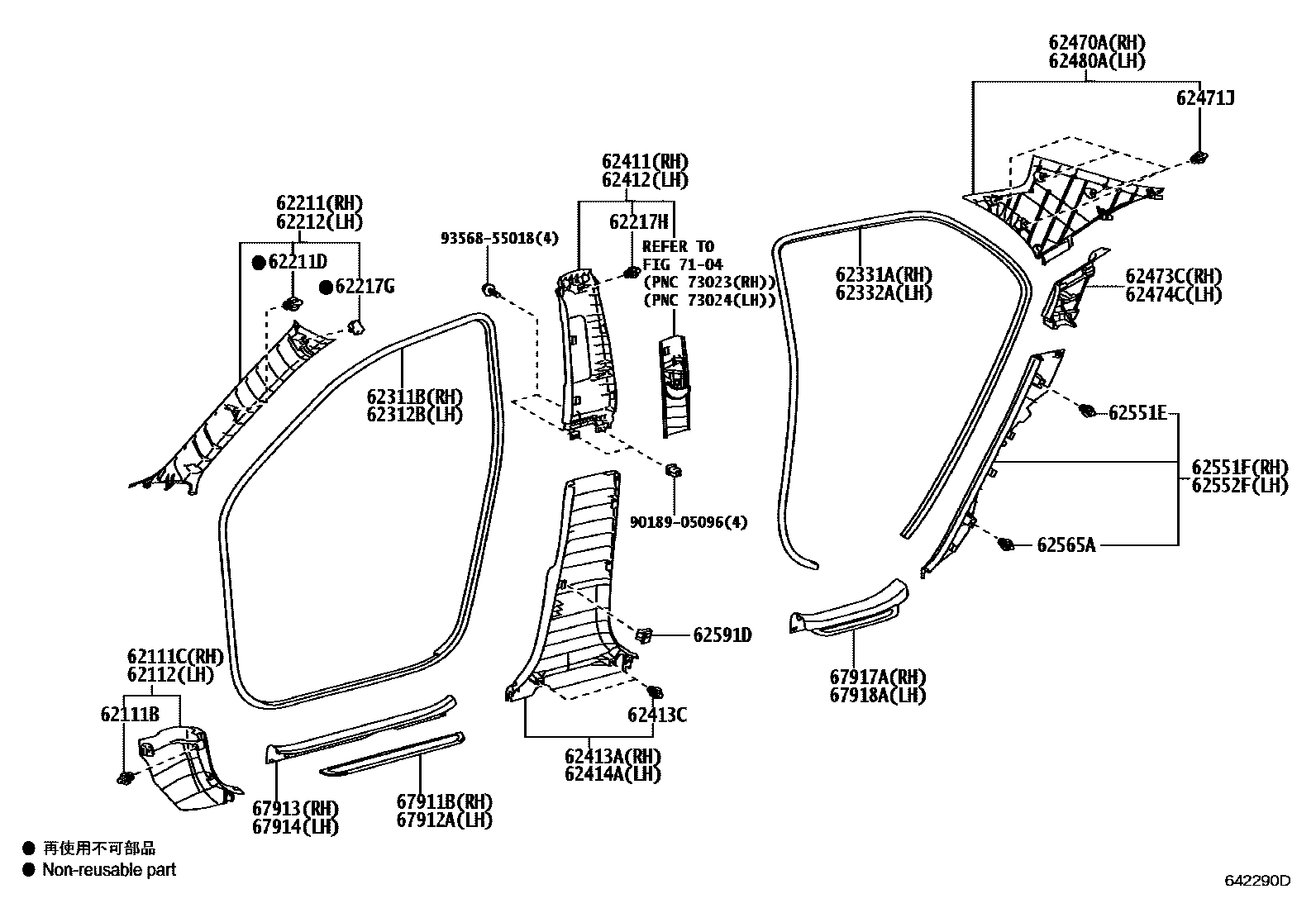

36 parts on this diagram · 1 diagram in section
