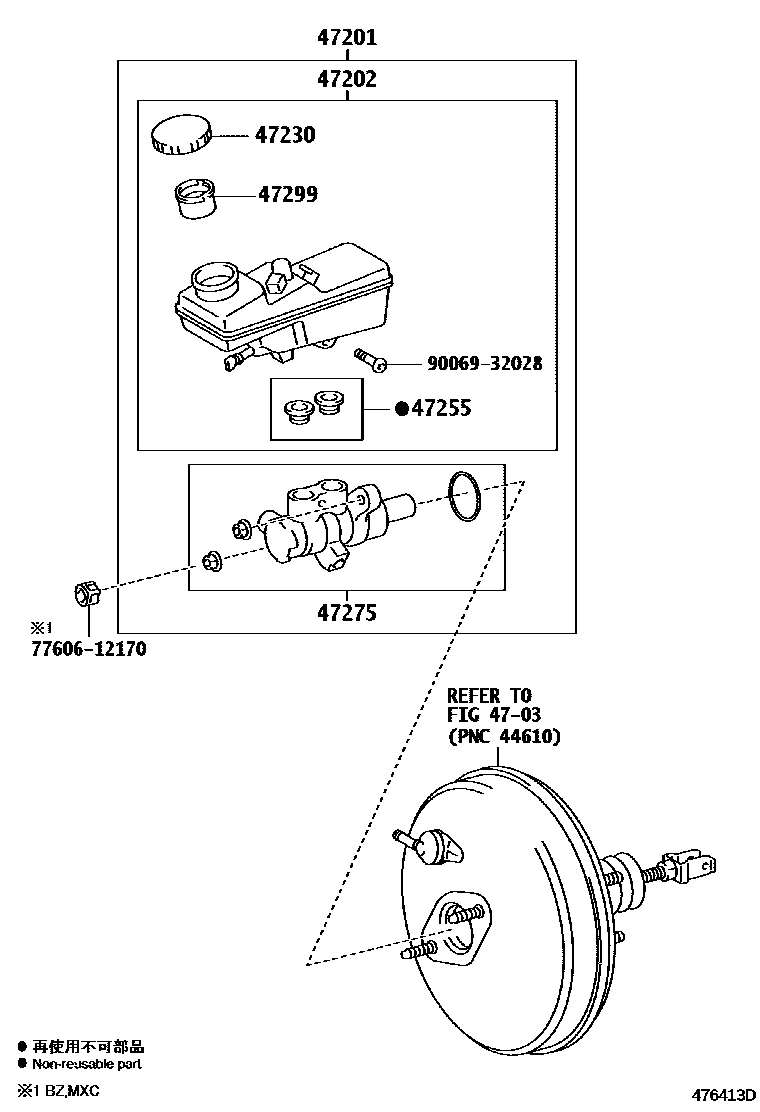

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09330iZZE141200803-200812

UP GRADE PACKAGE

sub47201-09331

main47201-09331iZZE142..SEG..HTWC;ZZE142..(GLI,XEGLI,XEI)..(HTWC,HTWCF)200812-201203

UP GRADE PACKAGE

sub47201-09680

main47201-09331iZZE142..SEG..HTWCF200812-201105

sub47201-09680

main47201-09550iZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803-200812

LOW GRADE PACKAGE

sub47201-09551

main47201-09551iZRE142..XLI200812-201203

LOW GRADE PACKAGE

sub47201-09690

main47201-09680iZRE14#,ZZE142..ALT,GLI,SEG,XEI201203

main47201-09680iZRE142..XLI201203-201403

UP GRADE PACKAGE

main47201-09690iZRE142..HTWCF201203-201403

LOW GRADE PACKAGE

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09110iZZE142..SEG..HTWCF200803-201105

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02250iZZE142..SEG..HTWCF200803-201111

sub47230-0D160

main47230-02250iZRE142..HTWCF201111-201203

LOW GRADE PACKAGE

sub47230-0D160

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZZE142..SEG..HTWCF200803-201105

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iZZE142..SEG..HTWCF200803-201105

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZZE142..SEG..HTWCF200803-201111

main47299-02160iZRE142..HTWCF201111-201203

LOW GRADE PACKAGE

7760612170PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12170

9006932028

main90069-32028

9 parts on this diagram · 1 diagram in section
