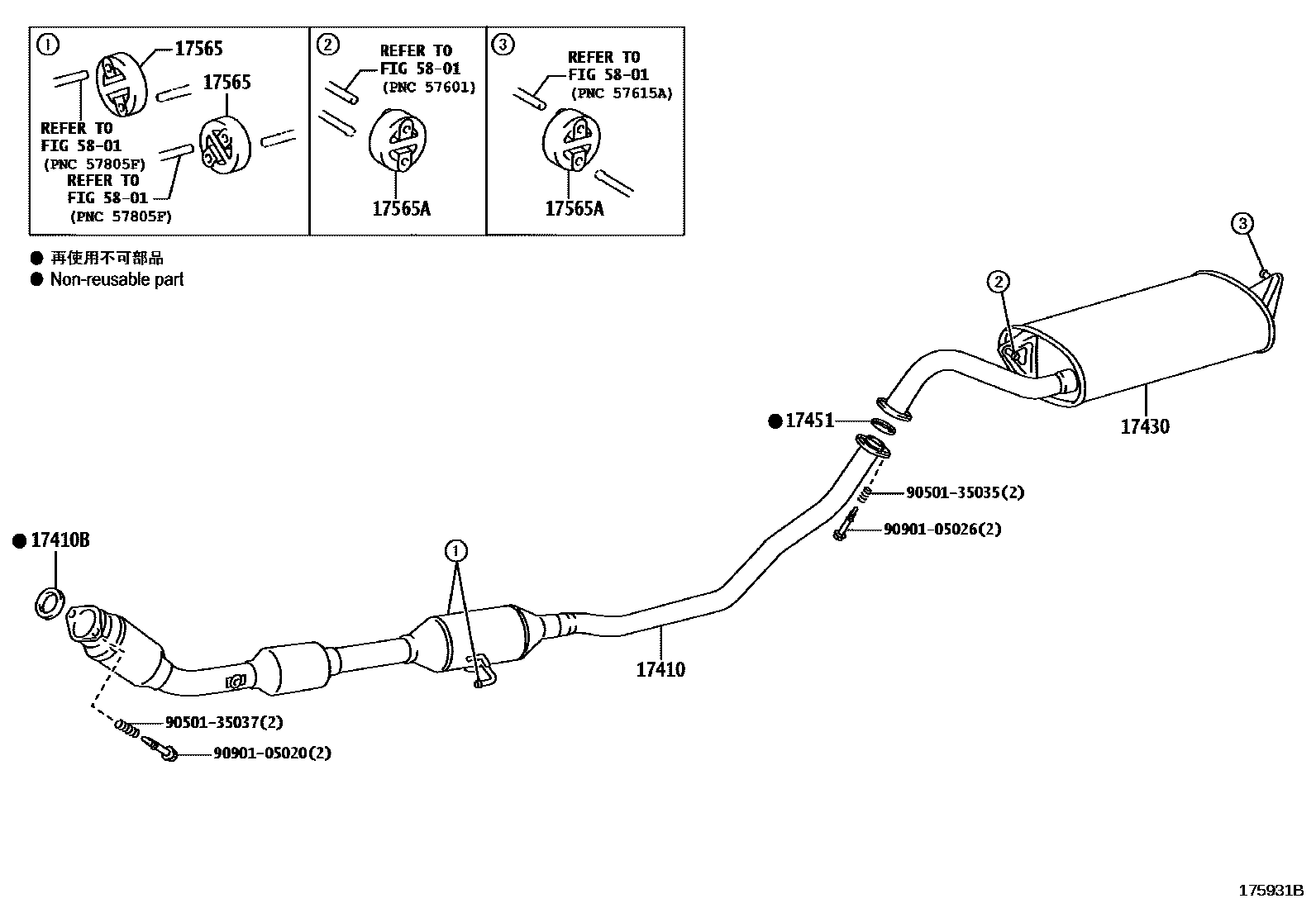

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D480i1ZZFE..ZZE142..VEN200803-201003

sub17410-0D530

main17410-0D520i1ZZFE..ZZE142..HTWC..VEN200903-201105

main17410-0T180i3ZRFBE..ZRE143201003-201403

main17410-0T420i2ZRFBE..ZRE142201103-201403

main17410-0T480i2ZRFE..ZRE142..MTM..XEI;2ZRFE..ZRE142..ATM..(SEG,XEI)201103-201403

COLOMBIA SPEC

main17410-0T490i2ZRFE..ZRE142..SEG,XEI201103-201202

sub17410-0T600

main17410-0T600i2ZRFE..ZRE142..SEG,XEI201203-201403

17410BGASKET, EXHAUST PIPE

main17451-22070i1ZZFE..ZZE142200803-201105

main17451-28070i2ZR#,3ZRFBE..ZRE14#201003-201403

sub17451-28040

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D490i1ZZFBE..ZZE142..SEG200803-201105

main17430-0T130i3ZRFBE..ZRE143201003-201403

17451GASKET, EXHAUST PIPE

main17451-23041i1ZZFE..ZZE142;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803-201009

sub17451-23042

main17451-23042i1ZZFE..ZZE142..CNG201010-201105

sub17451-23043

main17451-28031i3ZRFBE..ZRE143201003-201102

sub17451-28032

main17451-28032i2ZR#,3ZRFBE..ZRE14#201103-201403

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i3ZRFBE..ZRE143200803-201105

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1ZZFBE..ZZE142..SEG200803-201105

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

11 parts on this diagram · 1 diagram in section
