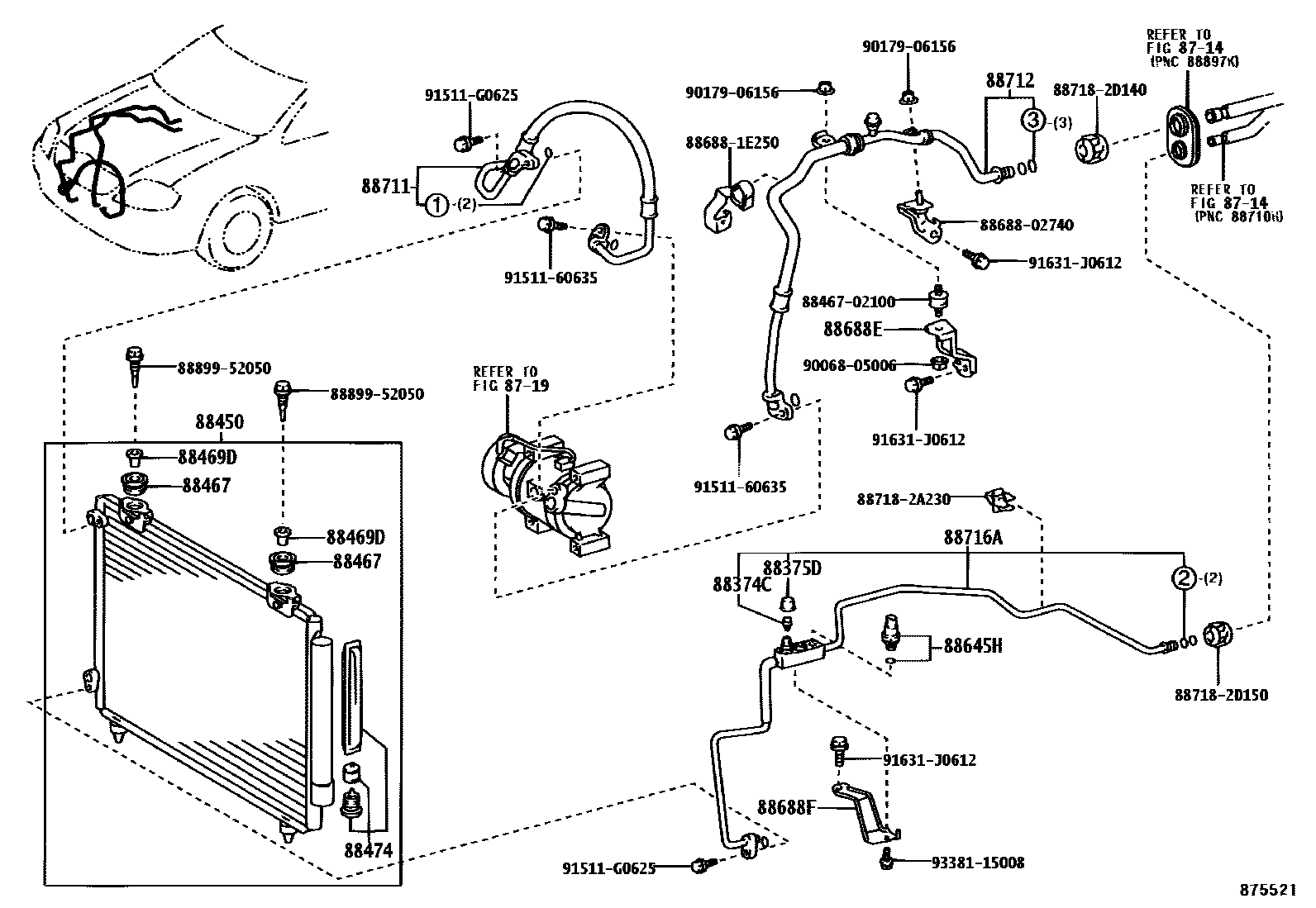

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0005 1 0006 1O-RING

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-02010×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

88375DCAP, SERVICE VALVE, NO.2

main88375-02120iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

88450CONDENSER ASSY, W/RECEIVER

main88450-02200iZZE122..WGN200205-200705

main88450-02210iZZE12#..VEN200209-200508

88467CUSHION, COOLER CONDENSER, NO.1

main88467-02090×2iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200408-200802

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-02030×2iCDE120,ZZE12#..BZ200205-200705

88474DRYER, COOLER

main88474-47010iZZE12#..VEN;ZZE122..WGN200408

88645HSWITCH, PRESSURE NO.1

main88645-60030iCDE120,ZZE12#200205-200705

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-02830iCDE120200208-200408

main88688-1E060iZZE12#..VEN200508

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-02820iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-02130iZZE12#..BZ200205-200309

main88703-02131iZZE122..WGN200408

main88703-02141iZZE12#..VEN200305-200508

main88703-13040iCDE120200408-200802

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-02300iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200408-200802

main88704-02310iZZE12#..VEN200508

main88704-1A020iCDE120200205-200408

main88712-02280iZZE12#..BZ200205-200705

main88712-02340iZZE12#..VEN200209-200508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02400iZZE122..WGN200408

main88710-02410iZZE12#..VEN200508

main88716-02420iZZE122..WGN200205-200705

main88716-02540iZZE12#..VEN200209-200508

8846702100CUSHION, COOLER CONDENSER, NO.1

main88467-02100

8868802740BRACKET, COOLER DIAPHRAGM

main88688-02740

886881E250BRACKET, COOLER DIAPHRAGM

main88688-1E250

887182A230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A230

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9006805006

main90068-05006

9017906156

main90179-06156

9151160635

main91511-60635

91511G0625

main91511-G0625

91631J0612

main91631-J0612

9338115008

main93381-15008

27 parts on this diagram · 4 diagrams in section
