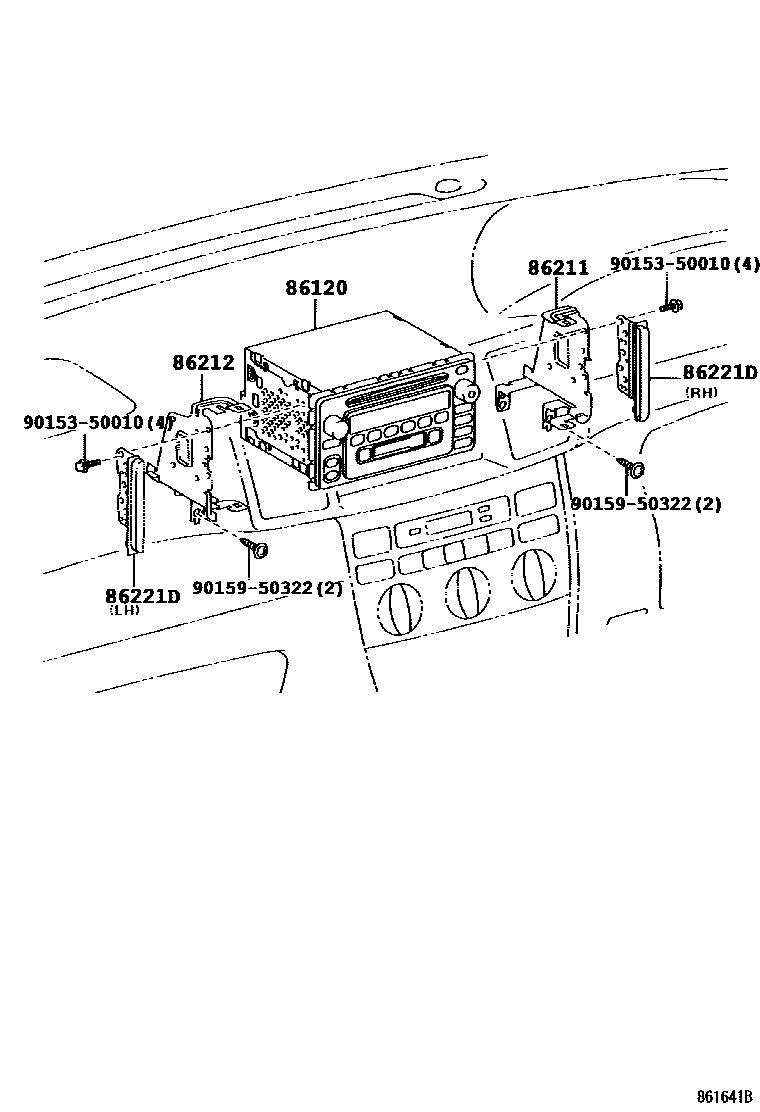

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-33450iZZE121..VEN200209-200508

FUJITSU TEN,ID=17808

86211BRACKET, RADIO, NO.1

main86211-02160iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200205-200705

main86211-12370iZZE12#..VEN200209-200507

86212BRACKET, RADIO, NO.2

main86212-02130iZZE122..WGN200205-200705

main86212-12350iZZE12#..VEN200209-200507

86221DPANEL, RADIO RECEIVER

main86221-02050iCDE120;ZZE122..SEG..SED..HTWC200205-200408

RH,(L)

main86221-02060iCDE120;ZZE122..SEG..SED..HTWC200205-200408

LH,(L)

main86221-52050iCDE120;ZZE122..SEG..SED..HTWC200205-200408

LH,(J)

main86221-52050iZZE12#..VEN200209-200507

LH

main86221-52060iZZE12#..VEN200209-200507

RH

main86221-52060iZZE12#..(XEI,XLI)..BZ200205-200408

RH,(J)

9015350010

main90153-50010

9015950322

main90159-50322

6 parts on this diagram · 2 diagrams in section
