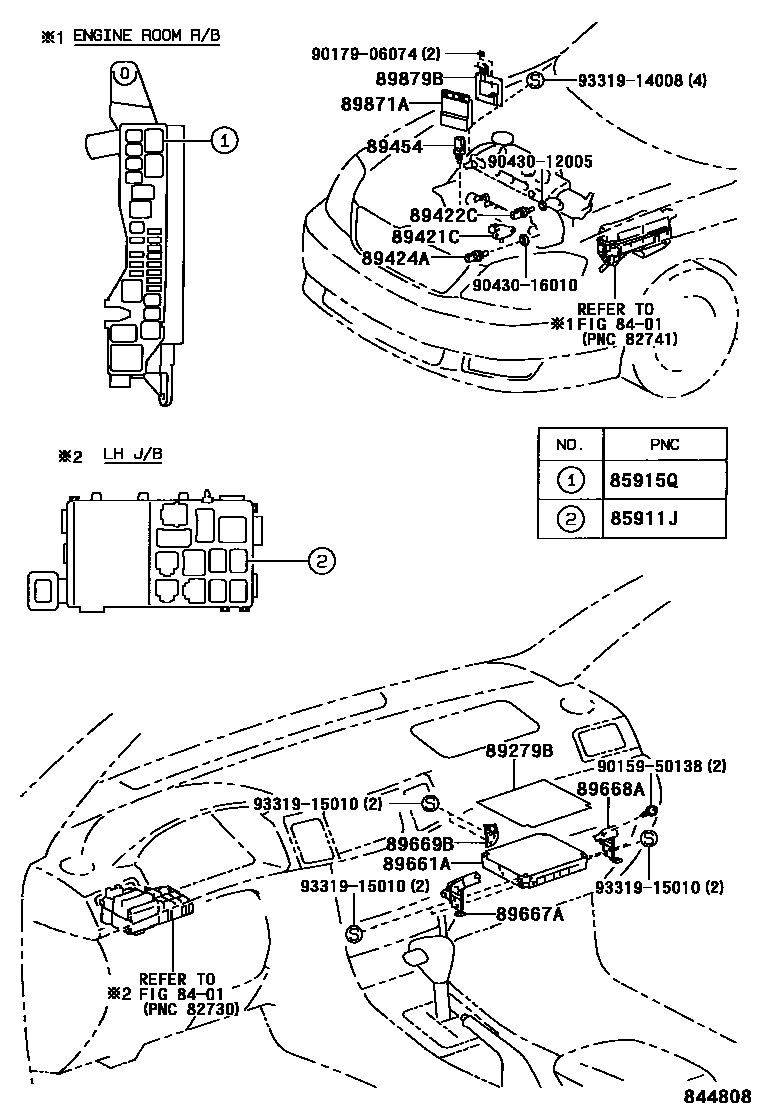

ELECTRONIC CONTROLED DIESEL (ECD)

8401

85911JRELAY ASSY, CIRCUIT OPENING (FOR ECD)

main90080-87019iCDE120200408-200803

P/N LABEL=9008087019

main90080-87021iCDE120200205-200408

P/N LABEL=9008087021

sub90987-02027

main90987-02020iCDE120200408-200803

P/N LABEL=9098702020

sub90987-02027

85915QRELAY, COMPUTER (FOR DIESEL)

main90080-87019iCDE120200408-200803

P/N LABEL=9008087019

main90080-87021iCDE120200408-200803

P/N LABEL=9008087021

sub90987-02027

main90987-02020iCDE120200205-200408

P/N LABEL=9098702020

sub90987-02027

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-12150iCDE120200205-200408

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iCDE120200205-200408

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCDE120200205-200408

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iCDE120200205-200408

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCDE120200205-200408

89661ACOMPUTER, ENGINE CONTROL

main89661-13230iCDE120200205-200408

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12190iCDE120200205-200408

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12100iCDE120200205-200408

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12030iCDE120200205-200408

89871ADRIVER, INJECTOR

main89871-20030iCDE120200205-200408

89879BBRACKET, INJECTOR DRIVER

main89879-13010iCDE120200205-200408

9015950138

main90159-50138

9017906074

main90179-06074

9043012005

main90430-12005

9043016010

main90430-16010

9331914008

main93319-14008

9331915010

main93319-15010

20 parts on this diagram · 1 diagram in section
