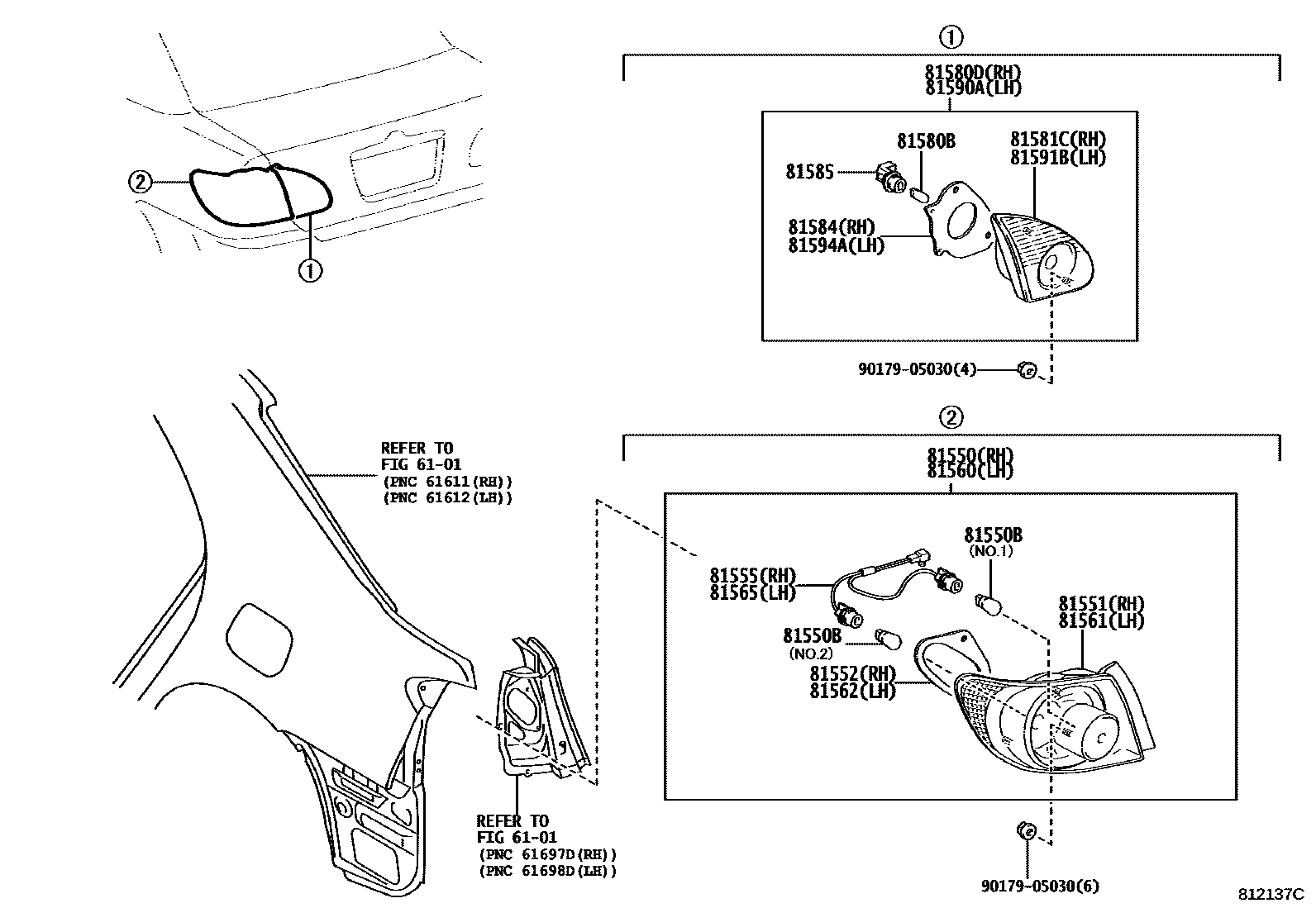

REAR COMBINATION LAMP

0001 1 0002 1

6101

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02220iCDE120,ZZE12#..SED200205-200508

main81550-02340iCDE120,ZZE12#..SED200408-200809

main81550-13670iZZE122..WGN200404-200807

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iZZE122..WGN200404-200807

12V 21W,NO.2 & NO.3

main90981-13044iZZE122..WGN200404-200807

12V 21/5W,NO.1

main90981-15009iCDE120,ZZE12#..SED200408-200809

12V 21W,AMBER,NO.1

main99132-11210iCDE120,ZZE12#..SED200205-200508

12V 21W,NO.1

main99132-21210iCDE120,ZZE12#..SED200205-200809

12V 21/5W,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-02220iCDE120,ZZE12#..SED200205-200508

main81551-02340iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

main81551-13670iZZE122..WGN200404-200705

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-02220iCDE120,ZZE12#..SED200205-200809

main81552-13570iZZE122..WGN200404-200807

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13571iZZE122..WGN200404-200705

main90069-81033iCDE120,ZZE12#..SED200205-200508

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02220iCDE120,ZZE12#..SED200205-200508

main81560-02340iCDE120,ZZE12#..SED200408-200809

main81560-13630iZZE122..WGN200404-200807

81561LENS, REAR COMBINATION LAMP, LH

main81561-02220iCDE120,ZZE12#..SED200205-200508

main81561-02340iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

main81561-13630iZZE122..WGN200404-200705

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-02220iCDE120,ZZE12#..SED200205-200508

main81552-13570iZZE122..WGN200404-200705

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13571iZZE122..WGN200404-200705

main90069-81033iCDE120,ZZE12#..SED200205-200508

81580BBULB (FOR REAR LAMP)

main90981-11059iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200508

12V 16W

main90981-11059iCDE120,ZZE122..BZ..SED200205-200408

12V 16W,W(REAR FOG LAMP),RH

main90981-13043iCDE120;ZZE122..ATM..SEG..SED..HTWC200205-200408

12V 21W,W(REAR FOG LAMP),LH

81580DLAMP ASSY, REAR, RH

main81580-02040iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200508

81581CLENS AND BODY, REAR LAMP, RH

main81581-02040iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

81584PACKING, REAR LAMP RH

main81584-02040iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

81585SOCKET & WIRE, REAR LAMP

main81585-02040iZZE12#..VEN200205-200508

main81585-02040iCDE120;ZZE122..ATM..SEG..SED..HTWC200205-200408

W(REAR FOG LAMP),RH

main81595-02060iCDE120;ZZE122..ATM..SEG..SED..HTWC200205-200408

W(REAR FOG LAMP),LH

81590ALAMP ASSY, REAR, LH

main81590-02050iZZE12#..(GLI,XEI,XLI)..SED200205-200508

main81590-02060iCDE120,ZZE122..BZ..SED200205-200408

W(REAR FOG LAMP)

81591BLENS AND BODY, REAR LAMP, LH

main81591-02050iZZE12#..VEN200205-200508

main81591-02060iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200408

W(REAR FOG LAMP)

81594AGASKET, REAR LAMP LH

main81584-02040iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200508

9017905030

main90179-05030

19 parts on this diagram · 2 diagrams in section
