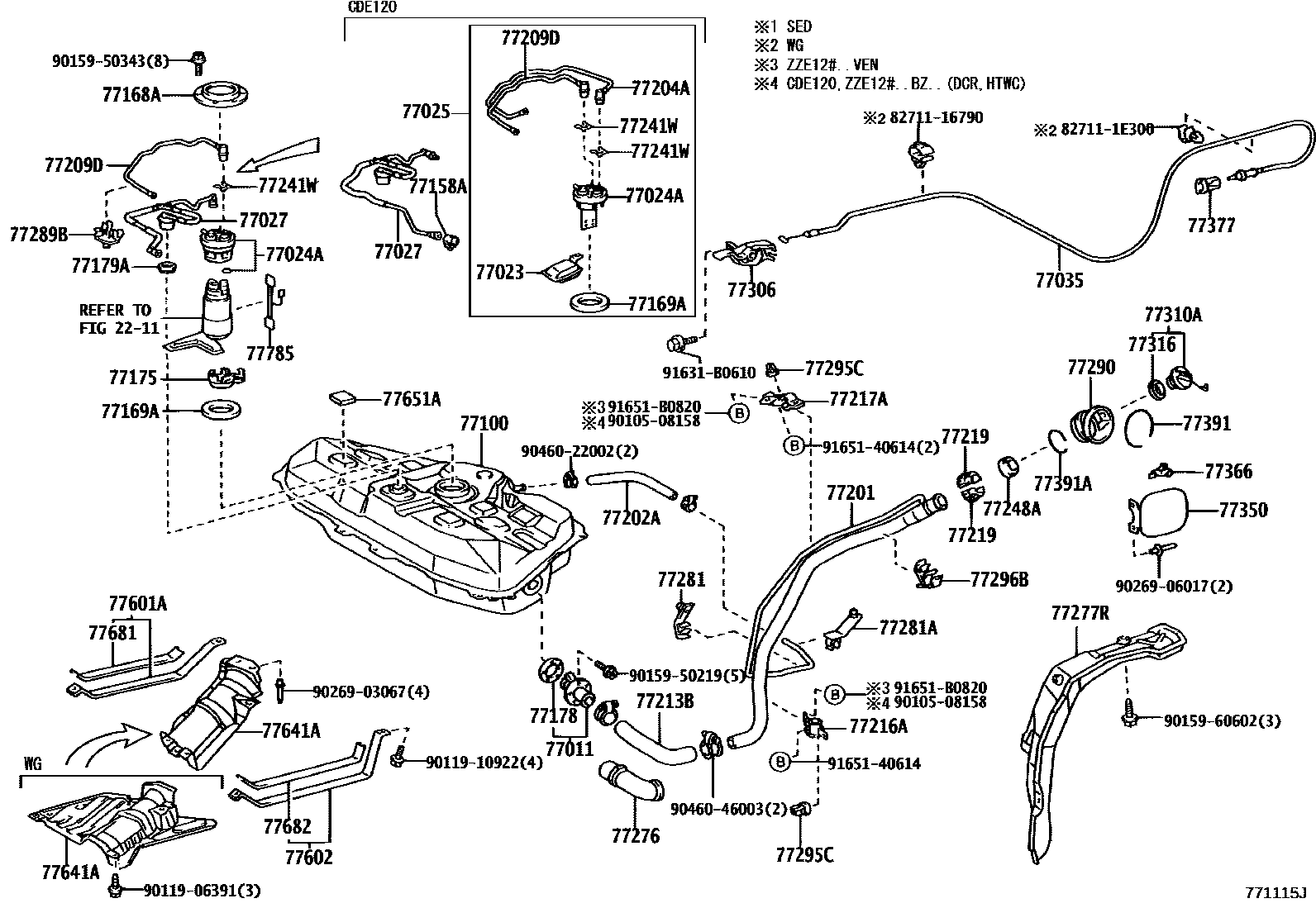

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL SUB TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-02040iZZE122..ATM..SEG;ZZE12#..(XEI,XLI)..BZ..SED200408-200704

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iCDE120200205-200408

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-12010iZZE12#..VEN;ZZE122..WGN..HTWC200408

main77024-12020iCDE120200205-200408

77025TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR

main77010-12340iCDE120200408-200803

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-12040iZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200705

main77027-12050iCDE120200408-200803

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02140iCDE120,ZZE12#..SED200205-200508

main77035-02170iZZE122..WGN200404-200705

77100TANK ASSY, FUEL

main77001-02160iZZE12#..BZ..SED..HTWC200205-200408

sub77001-02520

main77001-02170iCDE120200205-200408

main77001-02230iZZE12#..BZ..HTWC200705

main77001-02400iZZE122..HTWCF200705

main77001-02470iCDE120200705-200803

77158ASUPPORT, TANK SUCTION TUBE

main77158-12030iCDE120200205-200408

main77158-20040×2iZZE122..HTWCF200705

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iZZE122..WGN200205-200611

77175SUPPORT, FUEL SUCTION, NO.2

main77175-47010iZZE122..WGN200205-200611

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-0A010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-02100iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200408

main77201-02110iZZE12#..VEN200508

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13034iCDE120,ZZE12#..BZ200705

L=340

main95313-13046iZZE122..WGN200205-200705

77204ATUBE, FUEL TANK RETURN

main77204-12100iCDE120200205-200408

main77204-12140iZZE122..HTWCF200705

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12160iZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200705

main77209-12260iZZE122..HTWCF200705

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-32070iZZE122..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..(DCR,HTWC)200205-200612

main77213-32090iZZE122..WGN200612-200705

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-32060iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32050iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77219COVER, FUEL TANK FILLER PIPE

main77219-20070×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77241WCLIP, TUBE JOINT

main77241-33011iZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200705

main77241-60320iZZE122..HTWCF200705

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iZZE122..WGN200205-200705

77276PROTECTOR, FUEL HOSE

main77276-12050iZZE122..WGN200205-200705

sub77276-12120

sub77276-12130

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12170iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-32040iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77281ACLAMP, FUEL FILLER PIPE

main77281-12070iZZE122..WGN200205-200705

77289BCLAMP, FUEL TUBE, NO.3

main77289-12030iZZE122..WGN200205-200705

main77289-12050iZZE122..HTWCF200705

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12150iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77295CGROMMET, FUEL TUBE

main77295-12070×2iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-12030iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-12050iCDE120,ZZE12#..SED200205-200508

main77306-13030iZZE122..WGN200404-200705

77310ACAP ASSY, FUEL TANK

main77300-28010iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200612

main77300-60010iCDE120200205-200408

main77310-48010iZZE122..ATM..SEG;ZZE12#..(XEI,XLI)..BZ..SED200408-200612

77316GASKET, FUEL TANK CAP

main77316-16010iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

77350LID ASSY, FUEL FILLER OPENING

main77350-12450iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

main77350-13070iZZE122..WGN200705

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77391RING, FUEL INLET BOX

main77391-12040iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

77391ARING, FUEL INLET BOX

main77391-12020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-12230iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

main77601-12250iZZE122..WGN200705

77602CASE SUB-ASSY, FUEL TANK, UPPER

main77602-12180iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77641APROTECTOR, FUEL TANK, NO.1

main77641-12160iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

main77641-12170iZZE122..WGN200404-200705

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×7iZZE12#..VEN;ZZE122..WGN..HTWC;CDE120,ZZE122..DCR,HTWCF200408

77681SEAT, FUEL TANK BAND, RH

main77681-34030iZZE12#..VEN200205-200508

77682SEAT, FUEL TANK BAND, LH

main77681-32060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

77785HARNESS, FUEL PUMP

main77785-52020iZZE122..WGN..HTWC200408

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9010508158

main90105-08158

9011906391

main90119-06391

9011910922

main90119-10922

9015950219

main90159-50219

9015950343

main90159-50343

9015960602

main90159-60602

9026903067

main90269-03067

9026906017

main90269-06017

9046022002

main90460-22002

9046046003

main90460-46003

91631B0610

main91631-B0610

9165140614

main91651-40614

91651B0820

main91651-B0820

62 parts on this diagram · 6 diagrams in section
