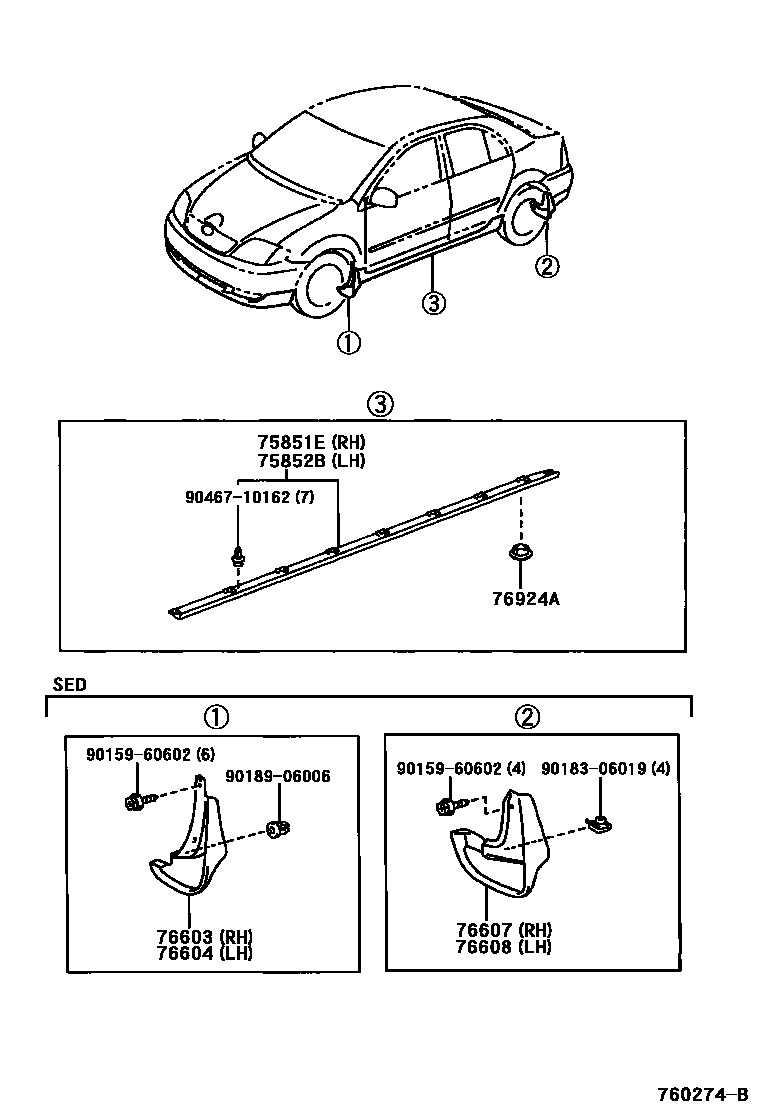

MUDGUARD & SPOILER

0001 1 0002 1

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-02020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200308-200705

main75851-12091iZZE12#..VEN200205-200508

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-02020iZZE122..WGN200308-200705

main75852-12061iCDE120,ZZE12#..BZ200205-200508

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-02100iZZE12#..VEN200209-200508

main76621-02100iZZE12#..VEN200508

BLACK

main76621-02902iZZE122..VEN200508

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-02100iZZE12#..VEN200209-200508

main76622-02100iZZE12#..VEN200508

BLACK

main76622-02902iZZE122..VEN200508

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-02100iZZE122..VEN200209-200508

PAINT REQ.

sub76625-02917

main76625-02110iZZE12#..VEN200209-200508

NO PAINT REQ.,BLACK

main76625-02901iZZE122..VEN200508

PAINT REQ.

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-02100iZZE122..VEN200209-200508

sub76626-02917

main76626-02110iZZE12#..VEN200209-200508

NO PAINT REQ.,BLACK

main76626-02901iZZE122..VEN200508

PAINT REQ.

76924ARETAINER, SIDE MUDGUARD, NO.2

main76924-12040iCDE120,ZZE12#..BZ200802

main76924-52021iCDE120,ZZE12#200205-200802

9015960602

main90159-60602

9018306019

main90183-06019

9018906006

main90189-06006

9046710162

main90467-10162

11 parts on this diagram · 2 diagrams in section
