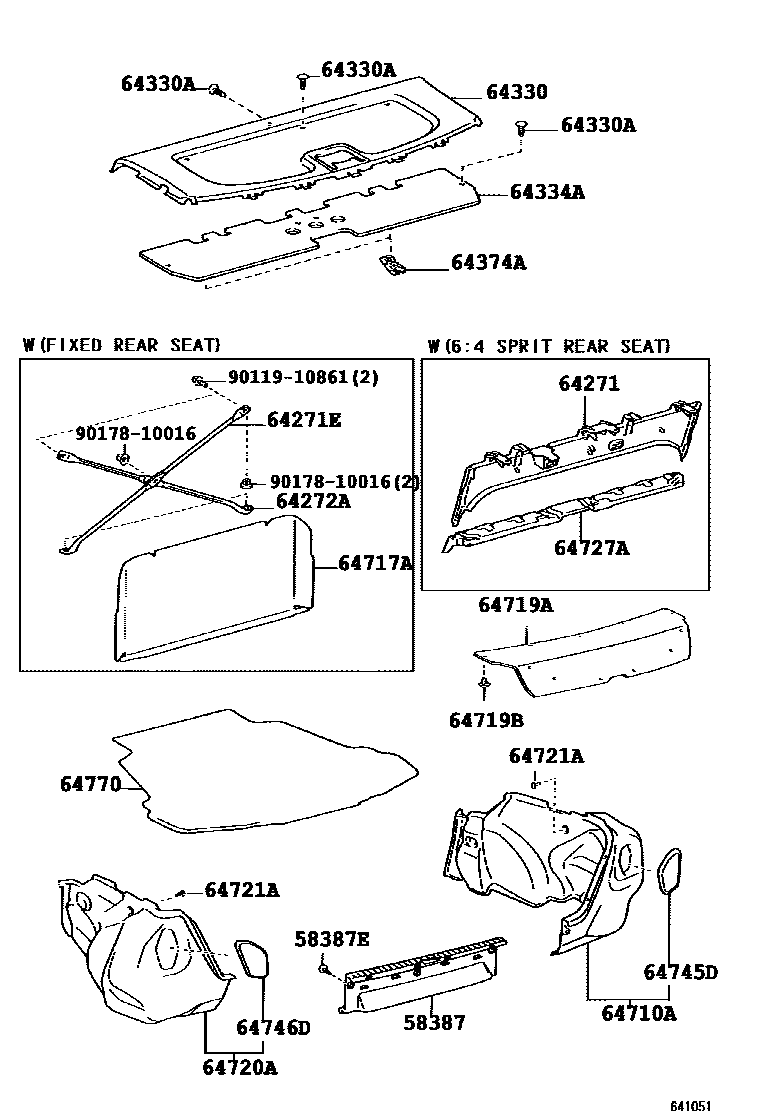

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02060-B0iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200508

DK.GRAY,TRIM1#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

BLACK

sub90467-05096

64271BOARD, ROOM PARTITION, NO.1

main64271-02090iZZE122..XEI..SED..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE122..SED..(DCR,HTWCF)200205-200803

W(6:4 SPRIT REAR SEAT)

main64271-12180-C0iZZE122..VEN200209-200508

BLACK,TRIM1#

sub64271-12180

64271EPANEL, ROOM PARTITION

main64241-12030iCDE120,ZZE12#..(XEI,XLI)..SED..(DCR,HTWC)200205-200508

64272APANEL, ROOM PARTITION, LH

main64242-12021iCDE120,ZZE12#..(XEI,XLI)..SED..(DCR,HTWC)200205-200508

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02350-B0iCDE120,ZZE12#..(XEI,XLI)..SED..(DCR,HTWC)200205-200508

STONE,TRIM1#

main64330-02360-B0iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200803

W(6:4 SPRIT REAR SEAT),STONE,TRIM1#

main64330-02430-B0iZZE122..VEN200209-200508

STONE,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06061-B1iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200803

W(6:4 SPRIT REAR SEAT),STONE,TRIM1#

sub90467-06061

sub90467-06020

main90467-06061-B1iCDE120,ZZE12#..(XEI,XLI)..SED..(DCR,HTWC)200205-200508

STONE,TRIM1#

sub90467-06061

sub90467-06020

64334APAD, PACKAGE TRAY TRIM

main64334-02020iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-12020iCDE120,ZZE12#..(XEI,XLI)..SED..(DCR,HTWC)200205-200508

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02090-C0iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12100-C0iCDE120,ZZE12#..XEI,XLI200205-200309

BLACK,TRIM1#

sub64717-12101

main64717-12101-C0iCDE120,ZZE12#..(XEI,XLI)..SED..(DCR,HTWC)200309-200508

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02060-C0iZZE122..XEI..SED..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE122..SED..(DCR,HTWCF)200408-200803

BLACK,TRIM1#

main64719-12130-C0iZZE122..VEN;ZZE121..ATM..VEN200508

BLACK,TRIM1#

sub64719-12131

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05165-B0iZZE121..ATM..VEN;ZZE122..ATM..SEG..SED..HTWC;ZZE122..(GLI,XEI)..SED..HTWC;CDE120,ZZE122..SED..(DCR,HTWCF)200408

DK.GRAY,TRIM1#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02090-C0iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

BLACK,TRIM1#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

BLACK

sub90467-05096

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12020iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200803

W(6:4 SPRIT REAR SEAT)

main64727-12020iZZE122..VEN200209-200508

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-02100-C0iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

BLACK,TRIM1#

main64745-02100-C0iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

BLACK,TRIM1#,NO.1

main64745-02120iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

NO.2

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64745-02100-C0iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

BLACK,TRIM1#

main64745-02100-C0iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

BLACK,TRIM1#,NO.1

main64746-02060iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

NO.2

64770COVER ASSY, SPARE WHEEL

main64771-02160-C0iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

BLACK,TRIM1#

9011910861

main90119-10861

9017810016

main90178-10016

21 parts on this diagram · 1 diagram in section
