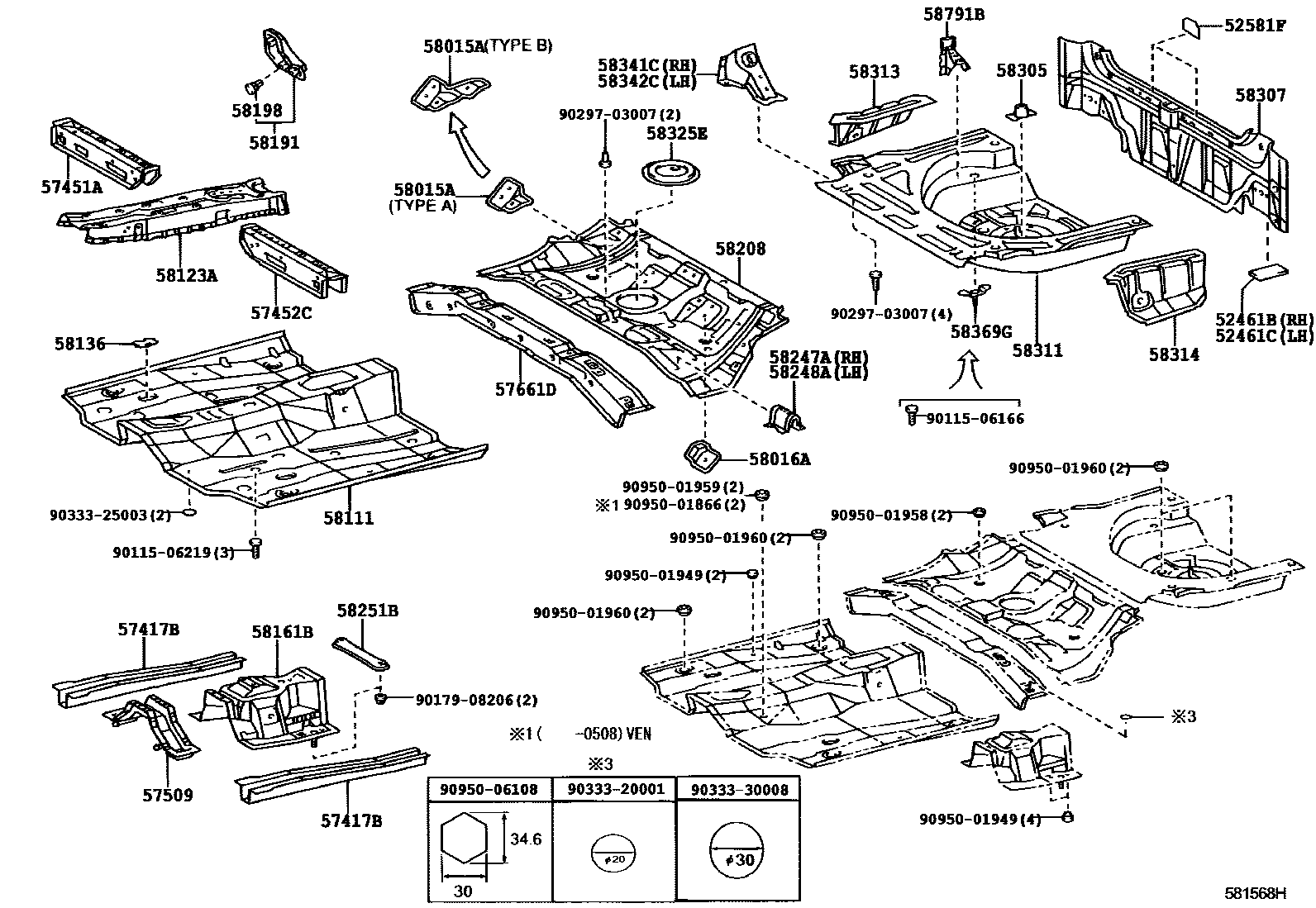

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52461BPAD, REAR BUMPER, RH

main52461-02010iCDE120,ZZE12#..SED200207-200508

52461CPAD, REAR BUMPER, LH

main52461-02010iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200207-200508

52581FPROTECTOR, REAR BUMPER

main52581-02010iCDE120,ZZE12#..SED200205-200809

main52581-12120iZZE122..WGN200404-200807

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-13020iZZE12#..VEN200205-200705

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-02080iCDE120,ZZE12#..BZ..SED200205-200705

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-02050iZZE122..WGN200205-200705

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12040iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-13100iZZE122..WGN200404-200705

main57661-12010iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200508

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12060iCDE120,ZZE12#..(XEI,XLI)..SED200205-200508

TYPE A:REFER TO ILLUSTRATION

main58015-12070iZZE122..WGN200404-200705

main58015-12070iCDE120,ZZE122..SED200205-200508

TYPE B:REFER TO ILLUSTRATION

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-13040iZZE122..WGN200404-200705

main58016-32050iCDE120,ZZE12#..SED200205-200508

58111PAN, FRONT FLOOR

main58111-02904iCDE120,ZZE12#200205-200705

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12040iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

58136COVER, FRONT FLOOR HOLE

main58136-33010iZZE12#..VEN200205-200705

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-02100iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

58191FOOTREST, FRONT FLOOR

main58192-02060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

sub58192-12070

58198CLIP, FOOTREST

main58198-20210iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

58208PAN, CENTER FLOOR

main58211-12590iCDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200205-200803

W(FIXED TYPE REAR SEAT)

sub58211-12918

main58211-12590iZZE121..VEN200209-200809

sub58211-12918

main58211-12600iZZE122..VEN200209-200508

sub58211-12919

main58211-12600iCDE120,ZZE122..SED200205-200809

W(SPLIT TYPE REAR SEAT)

sub58211-12919

main58211-13250iZZE122..WGN200404-200807

sub58211-13910

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12070iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12070iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200705

58251BBRACE, FLOOR PANEL, FRONT

main58251-12030iZZE12#..VEN200205-200705

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iCDE120,ZZE12#200205-200705

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-13140iZZE122..WGN200404-200807

main58307-1A560iCDE120,ZZE12#..(XEI,XLI)..BZ..SED200205-200809

W(FIXED TYPE REAR SEAT)

main58307-1A560iZZE121..VEN200209-200508

main58307-1A620iCDE120,ZZE122..SED200205-200809

58311PAN, REAR FLOOR

main58311-12270iCDE120,ZZE12#..SED200205-200809

main58311-13230iZZE122..WGN200404-200405

sub58311-13310

sub90950-01958

main58311-13310iZZE122..WGN200405-200807

58313PANEL, REAR FLOOR SIDE, RH

main58313-12290iZZE122..WGN200404-200705

main58313-12300iCDE120,ZZE12#..SED200205-200508

58314PANEL, REAR FLOOR SIDE, LH

main58314-12290iZZE122..WGN200404-200705

main58314-12300iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200508

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02150iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200704

main58325-12110iZZE12#..VEN200205-200705

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-12020iCDE120,ZZE12#..SED200205-200508

main58341-13040iZZE122..WGN200404-200705

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-12020iCDE120,ZZE12#..SED200205-200508

main58342-13040iZZE122..WGN200404-200705

58369GBRACKET, FUEL TUBE, NO.3

main58369-12020iCDE120,ZZE12#200205-200705

58791BCARRIER, JACK

main58791-02020iCDE120,ZZE12#200205-200705

9011506166

main90115-06166

9011506219

main90115-06219

9017908206

main90179-08206

9029703007

main90297-03007

9033320001

main90333-20001

9033325003

main90333-25003

9033330008

main90333-30008

9095001866

main90950-01866

9095001949

main90950-01949

9095001958

main90950-01958

9095001959

main90950-01959

9095001960

main90950-01960

9095006108

main90950-06108

43 parts on this diagram · 2 diagrams in section
