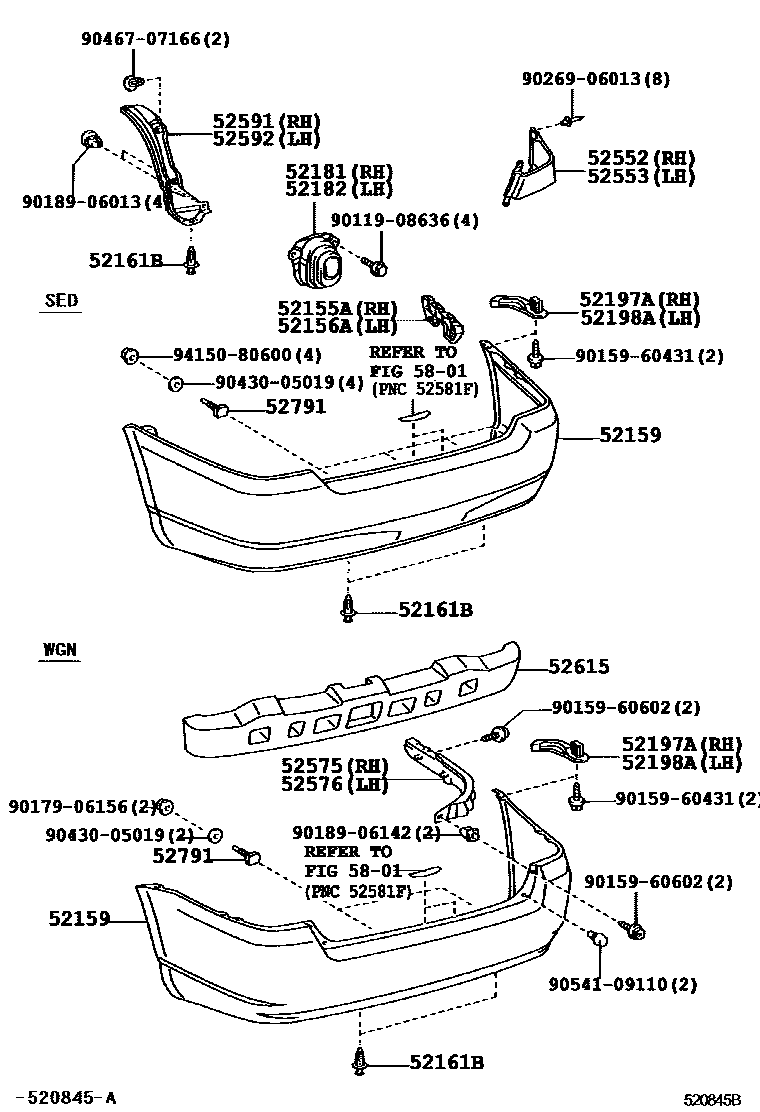

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02040iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200508

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02030iCDE120,ZZE12#..BZ..SED200205-200508

52159COVER, REAR BUMPER

main52159-02300iCDE120,ZZE12#..SED200205-200508

PAINT REQ.

main52159-02932iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

PAINT REQ.

main52159-02945iZZE122..WGN200404-200705

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iZZE122..WGN200404-200705

sub52161-0K040

main90467-09093iZZE12#..VEN200205-200508

52181ARM, REAR BUMPER, RH

main52181-12440iCDE120,ZZE12#200205-200809

52182ARM, REAR BUMPER, LH

main52181-12440iCDE120,ZZE12#200205-200809

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12080iCDE120,ZZE12#..BZ..SED200205-200705

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-12080iZZE122..WGN200205-200705

52552FILLER, REAR BUMPER, RH

main52552-02010iCDE120,ZZE12#..SED200205-200508

52553FILLER, REAR BUMPER, LH

main52553-02010iCDE120,ZZE12#..SED200205-200508

52575RETAINER, REAR BUMPER SIDE, RH

main52575-13020iZZE122..WGN200404-200705

52576RETAINER, REAR BUMPER SIDE, LH

main52576-13020iZZE122..WGN200404-200705

52591SEAL, REAR BUMPER SIDE, RH

main52591-12150iCDE120,ZZE12#..BZ..SED200205-200705

52592SEAL, REAR BUMPER SIDE, LH

main52592-12070iCDE120,ZZE12#..BZ..SED200205-200705

52615ABSORBER, REAR BUMPER ENERGY

main52615-13040iZZE122..WGN200404-200705

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iCDE120,ZZE12#..BZ..SED200205-200705

5801

9011908636

main90119-08636

9015960431

main90159-60431

9015960602

main90159-60602

9017906156

main90179-06156

9018906013

main90189-06013

9018906142

main90189-06142

9026906013

main90269-06013

9043005019

main90430-05019

9046707166

main90467-07166

9054109110

main90541-09110

9415080600

main94150-80600

28 parts on this diagram · 1 diagram in section
