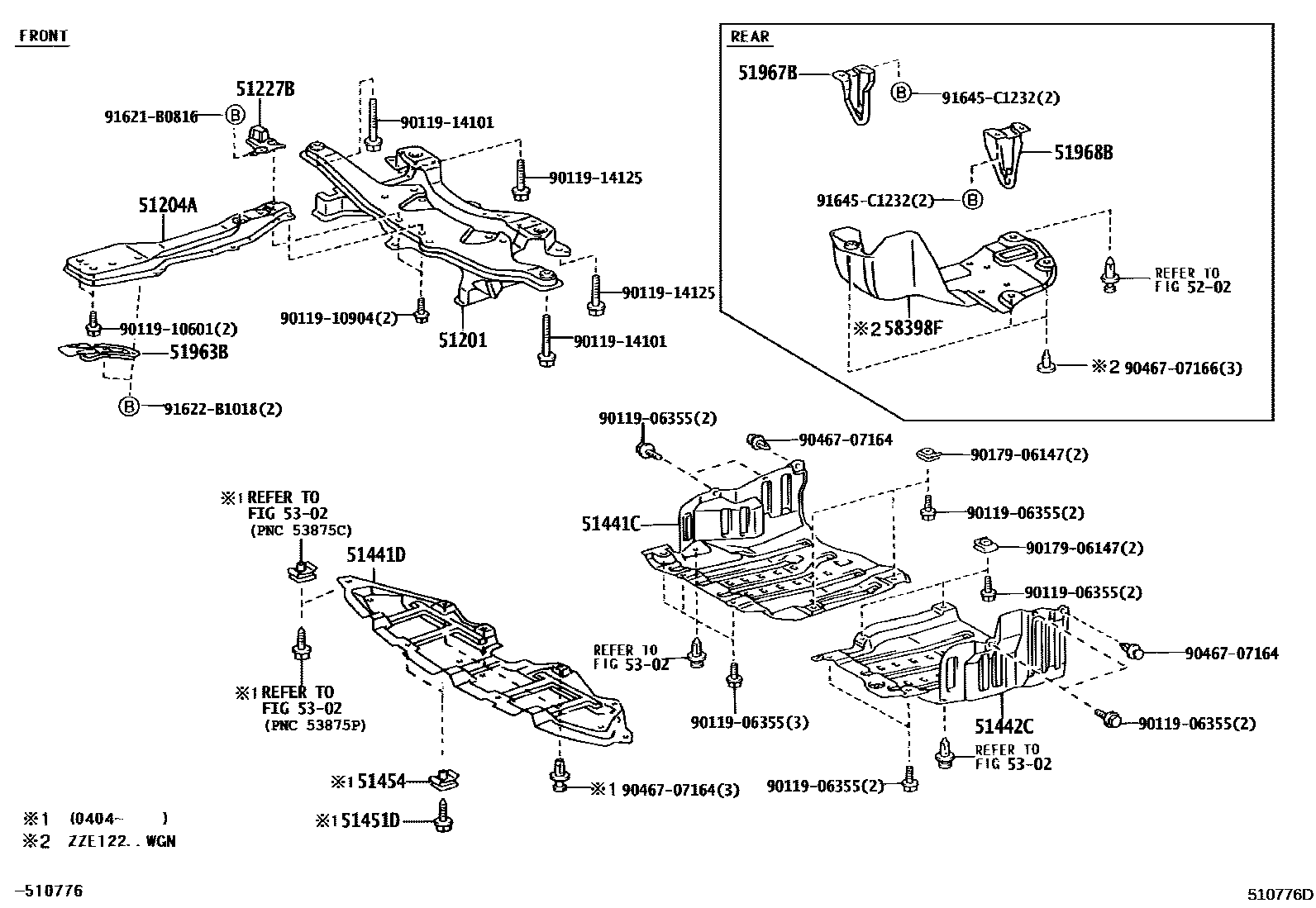

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12430iCDE120,ZZE12#200205-200303

main51201-12431iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200303-200408

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12150iZZE122..WGN200205-200705

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-12070iZZE122..ATM..BZ..SED..HTWC200205-200408

main51227-12080iCDE120,ZZE121..BZ200205-200308

main51227-12081iCDE120,ZZE121..BZ;ZZE122..MTM..BZ..SED..HTWC200308-200408

51441CCOVER, ENGINE UNDER, RH

main51408-02010iZZE12#..BZ200205-200312

main51408-02011iZZE122..WGN200312-200705

sub51408-12080

main51408-02030iCDE120200205-200312

main51408-02031iCDE120200312-200408

main51441-02061iZZE12#..VEN200508

51441DCOVER, ENGINE UNDER

main51451-12040iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200408

51442CCOVER, ENGINE UNDER, LH

main51409-02010iCDE120,ZZE12#..BZ200205-200312

main51409-02011iZZE122..WGN200312-200705

sub51409-12060

main51442-02091iZZE12#..MTM..VEN200508

main51442-02101iZZE12#..ATM..VEN200209-200508

51451DSCREW, NO.1

main90159-60488×2iZZE12#..VEN;ZZE122..WGN200209-200705

51454CLIP

main90467-05138×2iCDE120,ZZE12#200408-200809

51963BHOOK, TRANSPORT, FRONT RH

main51960-13010iCDE120;ZZE12#..VEN200205-200508

main51963-12240iZZE122..WGN200205-200705

51967BHOOK, TRANSPORT, REAR RH

main51967-12270iZZE122..WGN200205-200705

51968BHOOK, TRANSPORT, REAR LH

main51968-12170iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

5202

5302

58398FCOVER, FLOOR UNDER, NO.1

main58398-12020iZZE122..WGN200404-200705

9011906355

main90119-06355

9011910601

main90119-10601

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

9017906147

main90179-06147

9046707164

main90467-07164

9046707166

main90467-07166

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91645C1232

main91645-C1232

25 parts on this diagram · 2 diagrams in section
