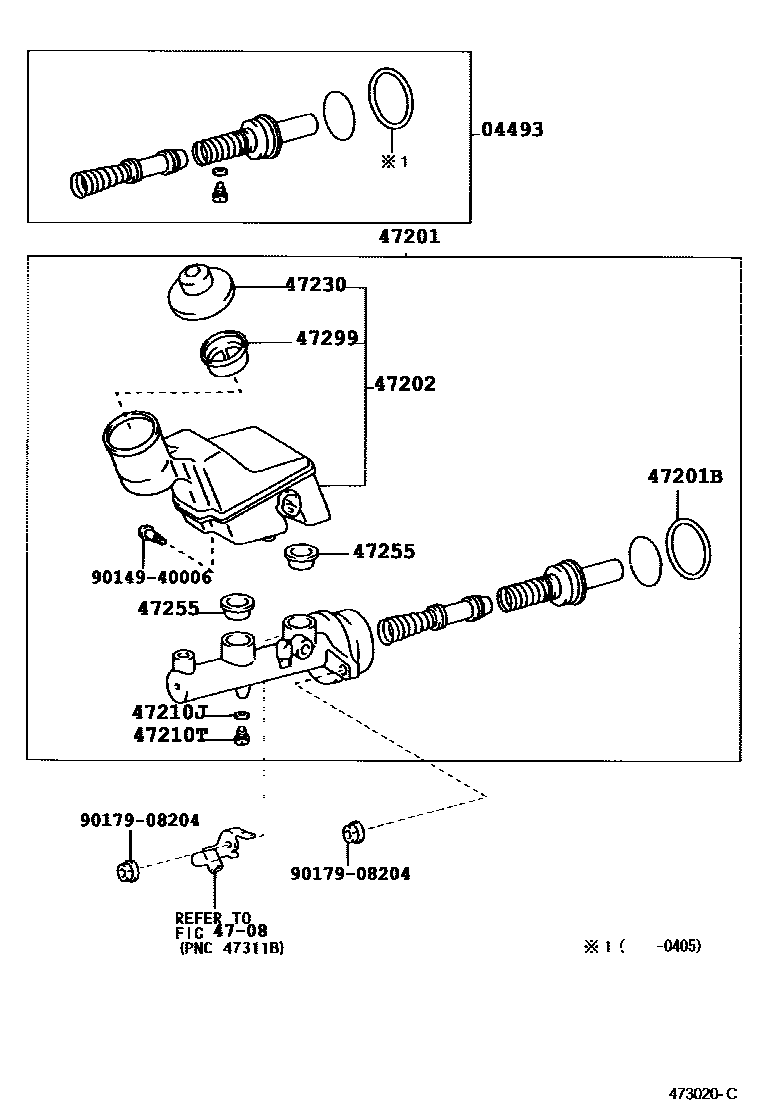

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-1A010iCDE120200205-200405

sub04493-1A030

main04493-1A030iCDE120200405-200803

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02100iZZE122..WGN200205-200705

main47201-1A370iCDE120200205-200803

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iCDE120200205-200803

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02120iZZE12#200205-200705

main47220-12150iCDE120200205-200803

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iCDE120200205-200803

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCDE120200205-200803

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02120iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(GLI,XEI,XLI)..SED..HTWC200205-200705

main47230-12040iCDE120200205-200803

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-02020iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(GLI,XEI,XLI)..SED..HTWC200205-200705

main47255-16010iCDE120200205-200803

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iCDE120200205-200803

9014940006

main90149-40006

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
