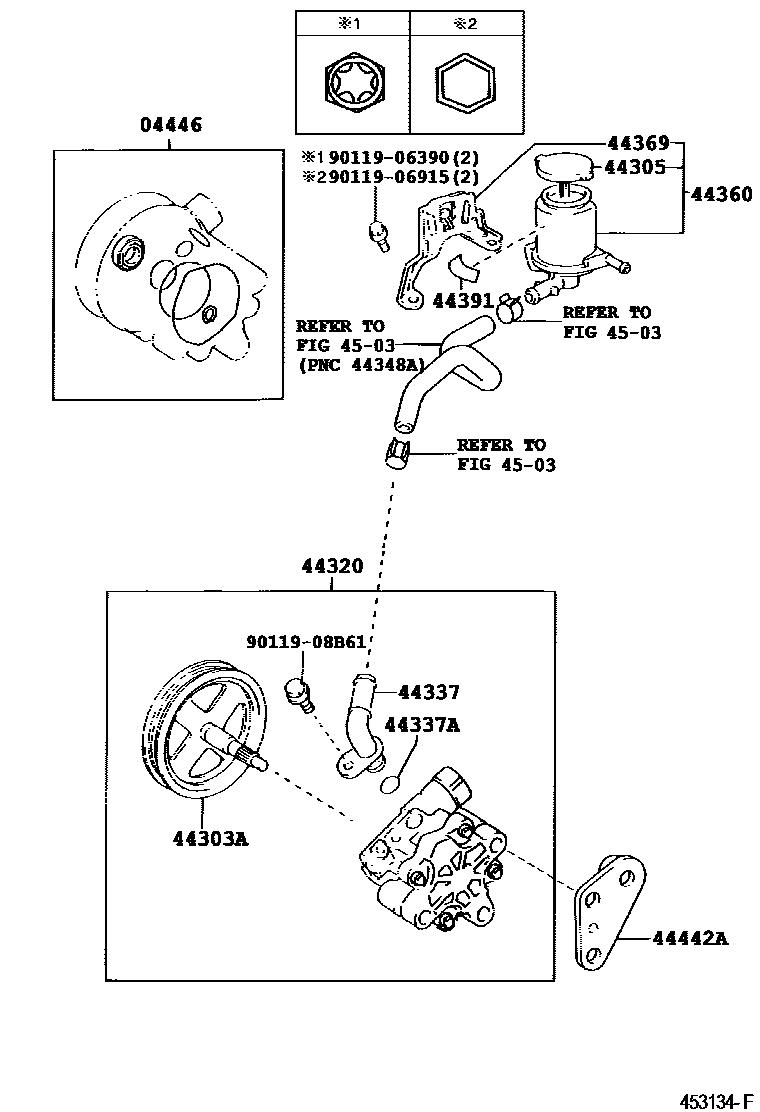

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02070iZZE12#..VEN;ZZE122..WGN¥1,790200408-200701

sub04446-02140¥1,790

main04446-02080iZZE12#200205-200501

sub04446-02140¥1,790

main04446-02140iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(GLI,XEI,XLI)..SED..HTWC¥1,790200701-200705

main04446-20170iCDE120¥860200510-200803

main04446-32050iCDE120¥970200205-200510

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-02030iZZE122..WGN¥8,400200205-200705

main44303-12030iCDE120¥8,200200205-200803

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-06030iZZE122..WGN200205-200709

sub44305-06050¥1,480

main44305-06050iZZE12#¥1,480200710

main44305-28030iCDE120¥1,590200205-200801

sub44305-28060¥1,590

main44305-28060iCDE120¥1,590200802-200803

sub44305-28061¥1,090

44320PUMP ASSY, VANE

main44310-02110iZZE12#..VEN200205-200705

sub44310-02101¥94,500

main44310-12560iCDE120¥94,600200205-200803

44337UNION, POWER STEERING SUCTION PORT

main44337-12130iCDE120¥1,670200205-200803

main44337-32110iZZE12#..BZ..SED..HTWC¥1,430200205-200705

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)¥140200205-200705

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-02080iZZE12#..BZ..SED..HTWC200205-200705

sub44360-02070¥10,300

main44360-13010iCDE120¥10,200200205-200803

44369BRACKET, OIL RESERVOIR, NO.1

main44369-02040iZZE122..WGN¥1,870200205-200705

main44369-12060iCDE120¥1,870200205-200803

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-02010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

main44391-02020iZZE12#..VEN200209-200508

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZE12#..BZ..SED..HTWC¥670200205-200705

main44442-13010iCDE120¥1,070200205-200803

4503

9011906390

main90119-06390¥70

9011906915

main90119-06915¥60

9011908B61

main90119-08B61¥60

14 parts on this diagram · 3 diagrams in section
