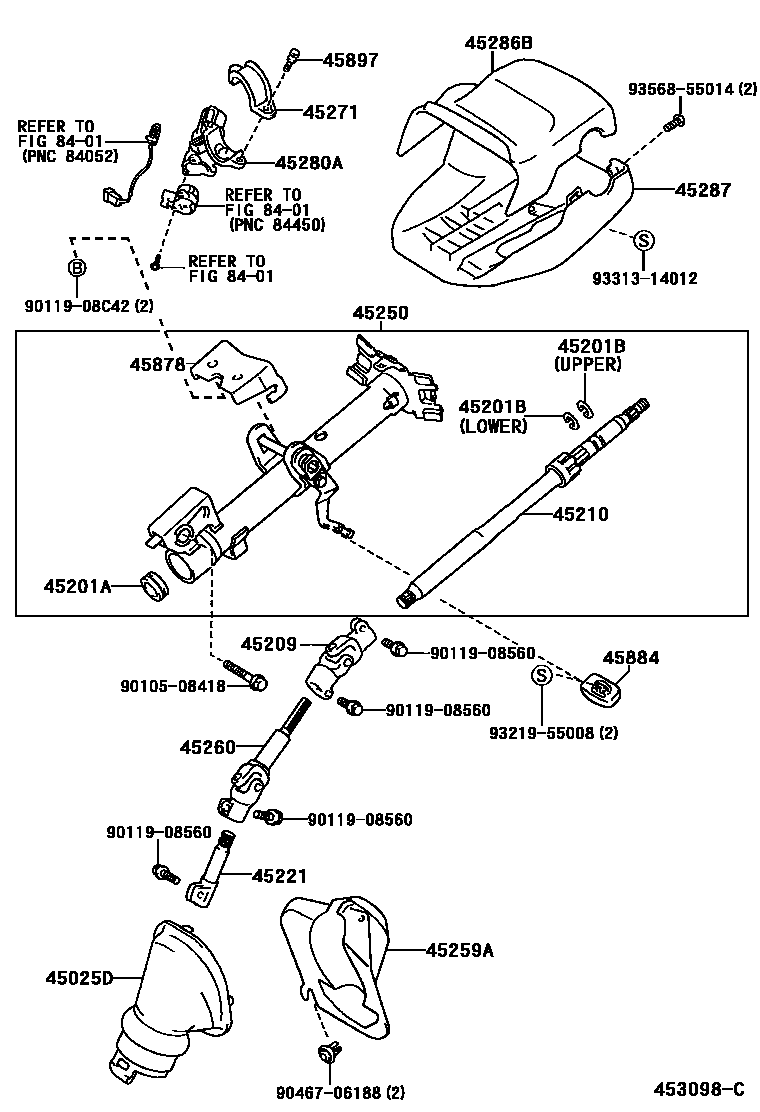

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02040iZZE12#..VEN200205-200705

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-02010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90080-52140iCDE120,ZZE12#..MTM..(GLI,XEI,XLI)200205-200705

T=1.20,LOWER

main90080-52141iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

T=1.20,UPPER

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-02090iCDE120,ZZE12#..BZ..SED200402-200705

main45209-12180iCDE120,ZZE12#200205-200402

sub45209-12H00

45210SHAFT ASSY, STEERING MAIN

main45210-13010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

45221SHAFT, STEERING INTERMEDIATE

main45221-02040iZZE122..WGN200402-200705

main45221-12291iCDE120,ZZE12#200205-200402

45250COLUMN ASSY, STEERING

main45250-02450iZZE12#..VEN200205-200705

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02050iCDE120,ZZE12#..BZ..SED200205-200705

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02060iZZE12#..VEN200402-200705

main45260-12480iCDE120,ZZE12#200205-200402

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02050iZZE12#..MTM..VEN200205-200705

main45280-02060iZZE12#..ATM..VEN200205-200705

45286BCOVER, STEERING COLUMN, UPR

main45286-02200-B0iCDE120,ZZE12#200205-200705

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-02210-B0iCDE120,ZZE12#200205-200705

DK.GRAY,TRIM1#

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-52010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

45884BRACKET, TILT LEVER

main45884-13010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

45897BOLT, STEERING LOCK SET

main45897-12020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

8401

9010508418

main90105-08418

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9321955008

main93219-55008

9331314012

main93313-14012

9356855014

main93568-55014

24 parts on this diagram · 1 diagram in section
