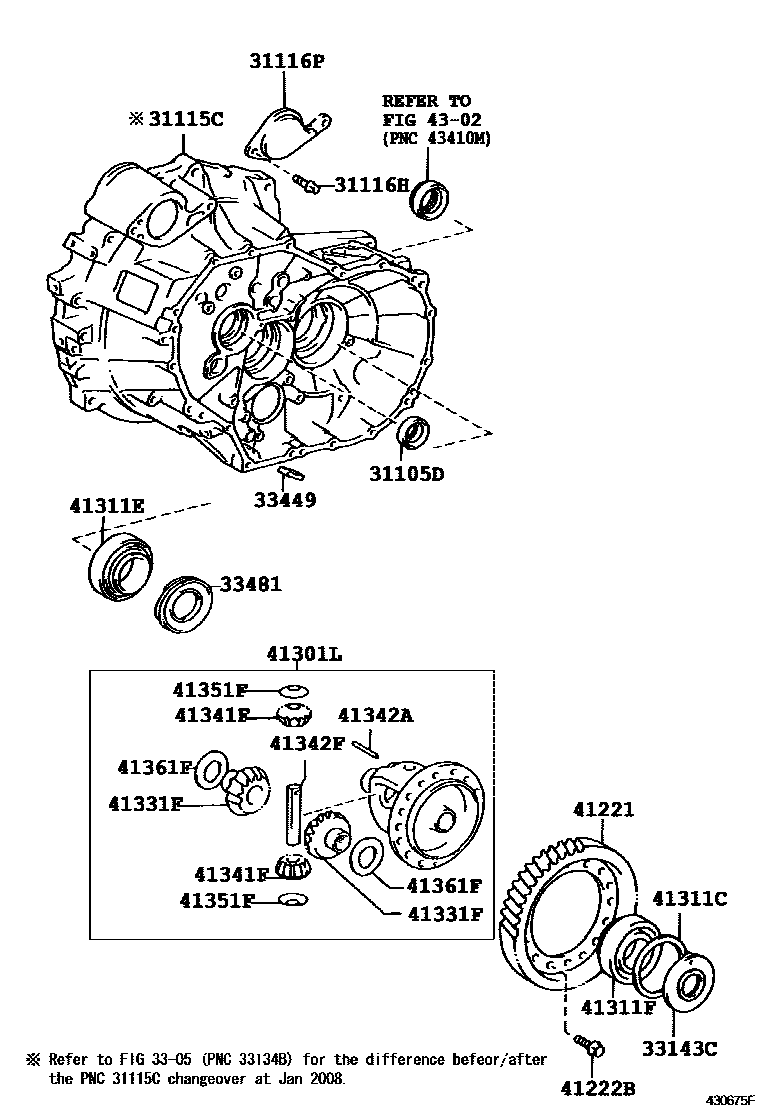

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
31116HBOLT(FOR FRONT TRANSAXLE CASE COVER)
31116PCOVER, TRANSAXLE CASE
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33449MAGNET, TRANSMISSION
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35,MARK 35X29-31
N=32
N=35
41221GEAR, FRONT DIFFERENTIAL RING
PERU SPEC
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
PERU SPEC
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CASE, FRONT DIFFERENTIAL
PERU SPEC
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
PERU SPEC
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
4302
22 parts on this diagram · 4 diagrams in section
