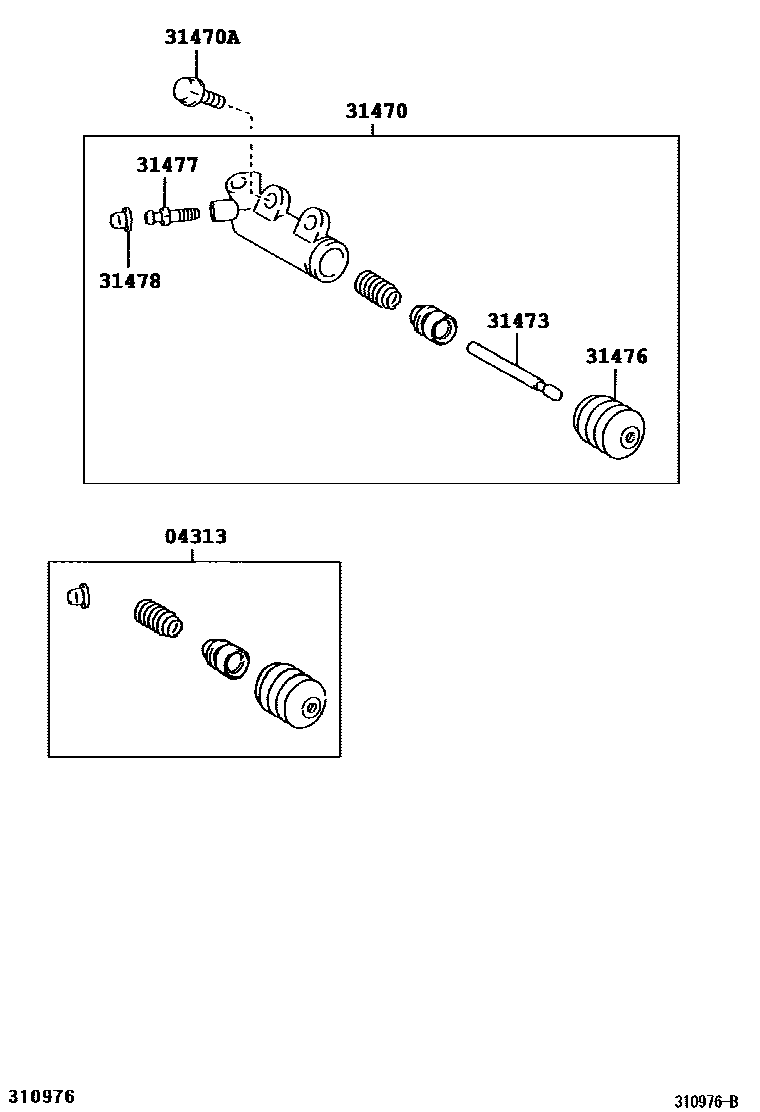

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE12#..MTM..VEN200209-200508

main04313-28020iZZE12#..MTM..(XEI,XLI)..BZ200205-200705

main04313-52020iCDE120200401-200803

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE12#..MTM..VEN200209-200710

sub31470-12140

main31470-12130iZZE12#..MTM..BZ..SED200205-200705

main31470-12140iZZE12#..MTM..VEN200710

main31470-32022iCDE120200205-200406

sub31470-32023

main31470-32023iCDE120200406-200803

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCDE120200205-200803

*8-1.25PX25-20.1

main91611-60822iZZE12#..MTM..VEN200205-200705

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE122..MTM..WGN200205-200705

main31473-22010iCDE120200205-200406

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZZE12#..MTM..VEN200205-200705

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iCDE120,ZZE12#..MTM..BZ..SED200205-200705

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCDE120,ZZE12#..MTM..BZ..SED200205-200705

7 parts on this diagram · 1 diagram in section
