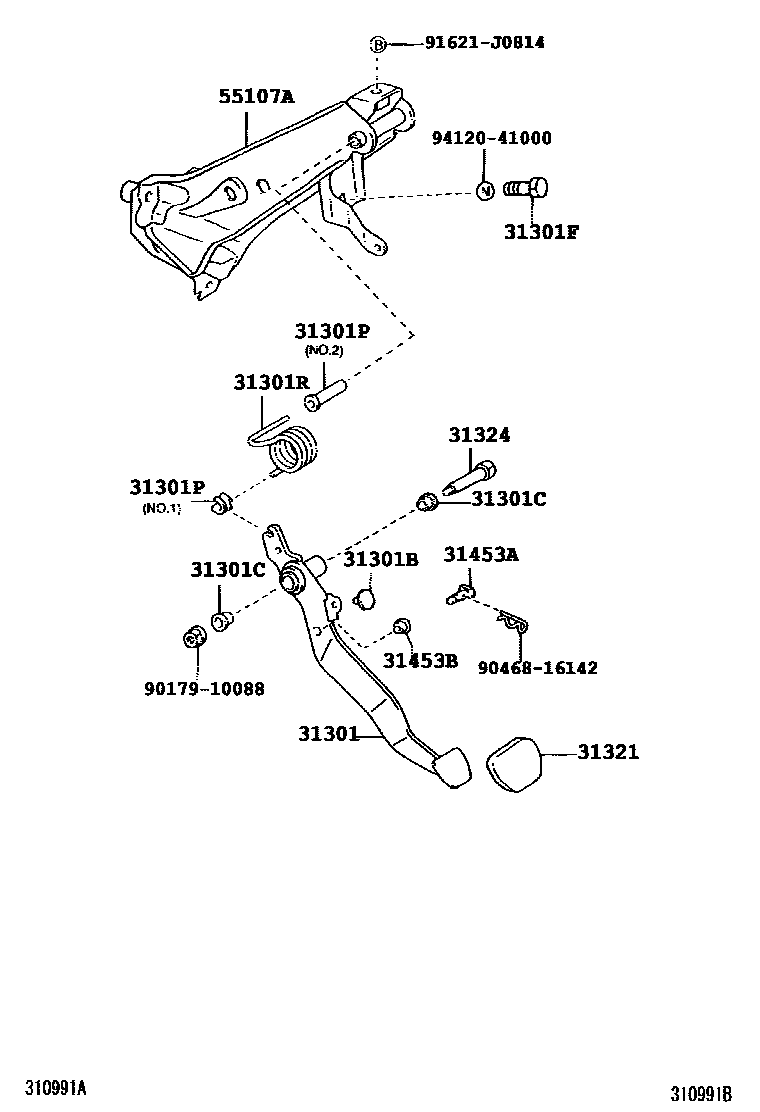

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02130iZZE122..MTM..WGN200404-200705

main31301-12470iZZE12#..MTM..VEN200209-200508

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iCDE120,ZZE12#..MTM..BZ..SED..(DCR,HTWC)200205-200408

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iCDE120,ZZE12#..MTM..BZ..SED..(DCR,HTWC)200205-200408

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCDE120,ZZE12#..MTM..(GLI,XEI,XLI)200408

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iCDE120200205-200408

NO.1

main90389-05019iCDE120200205-200408

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iCDE120200205-200408

31321PAD, CLUTCH PEDAL

main31321-02010iZZE12#..MTM..BZ..SED..HTWC200205-200408

main31321-52010iCDE120200205-200408

31324SHAFT, CLUTCH PEDAL

main90109-10167iCDE120,ZZE12#..MTM..BZ..SED..(DCR,HTWC)200205-200408

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iZZE12#..MTM..VEN200205-200508

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCDE120,ZZE12#..MTM..BZ..SED..(DCR,HTWC)200205-200408

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12220iCDE120,ZZE12#..MTM..(GLI,XEI,XLI)200408

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

9412041000

main94120-41000

15 parts on this diagram · 4 diagrams in section
