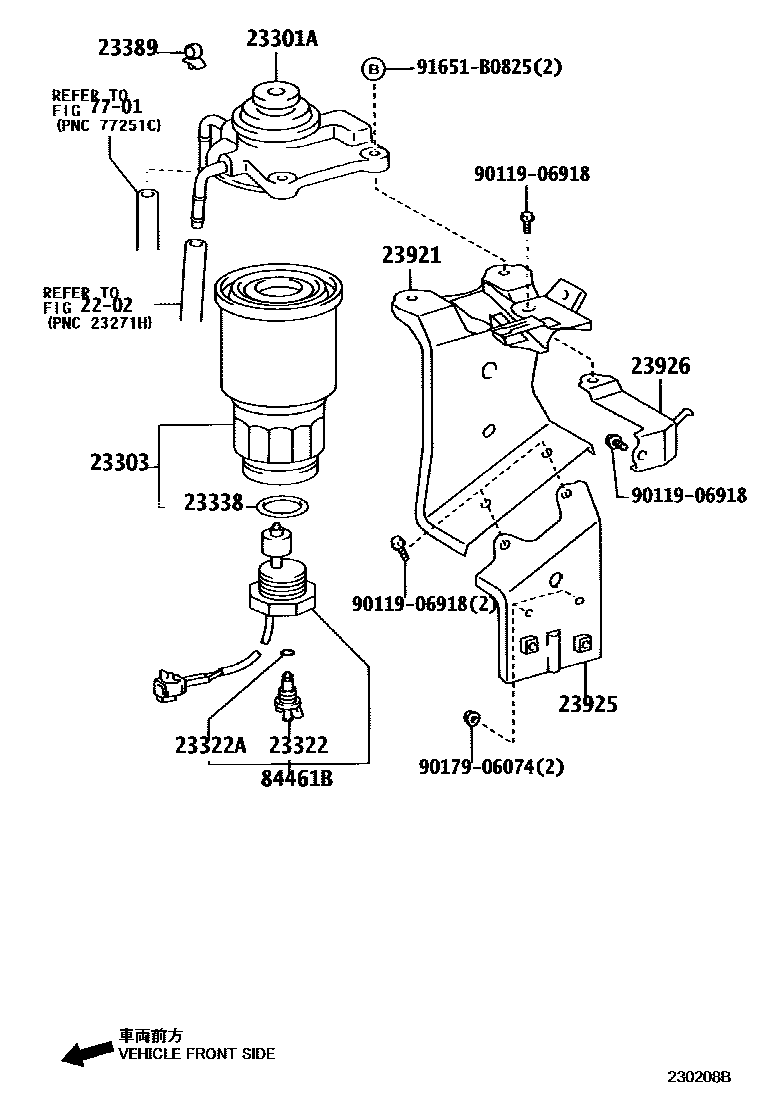

FUEL FILTER

2202

23301ACAP ASSY, FUEL FILTER

main23380-27130i1CDFTV..CDE120200205-200408

sub23380-27131

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i1CDFTV..CDE120200205-200408

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1CDFTV..CDE120200205-200408

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1CDFTV..CDE120200205-200408

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1CDFTV..CDE120200205-200408

23389CLAMP, FUEL FILTER

main23389-27130i1CDFTV..CDE120200205-200408

23921SUPPORT, FUEL FILTER

main23921-27080i1CDFTV..CDE120200205-200408

23925STAY, FUEL FILTER SUPPORT

main23925-27010i1CDFTV..CDE120200205-200408

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-27020i1CDFTV..CDE120200205-200408

7701

84461BSWITCH, LEVEL WARNING

main84461-60080iCDE120200205-200408

sub84461-60081

9011906918

main90119-06918

9017906074

main90179-06074

91651B0825

main91651-B0825

15 parts on this diagram · 1 diagram in section
