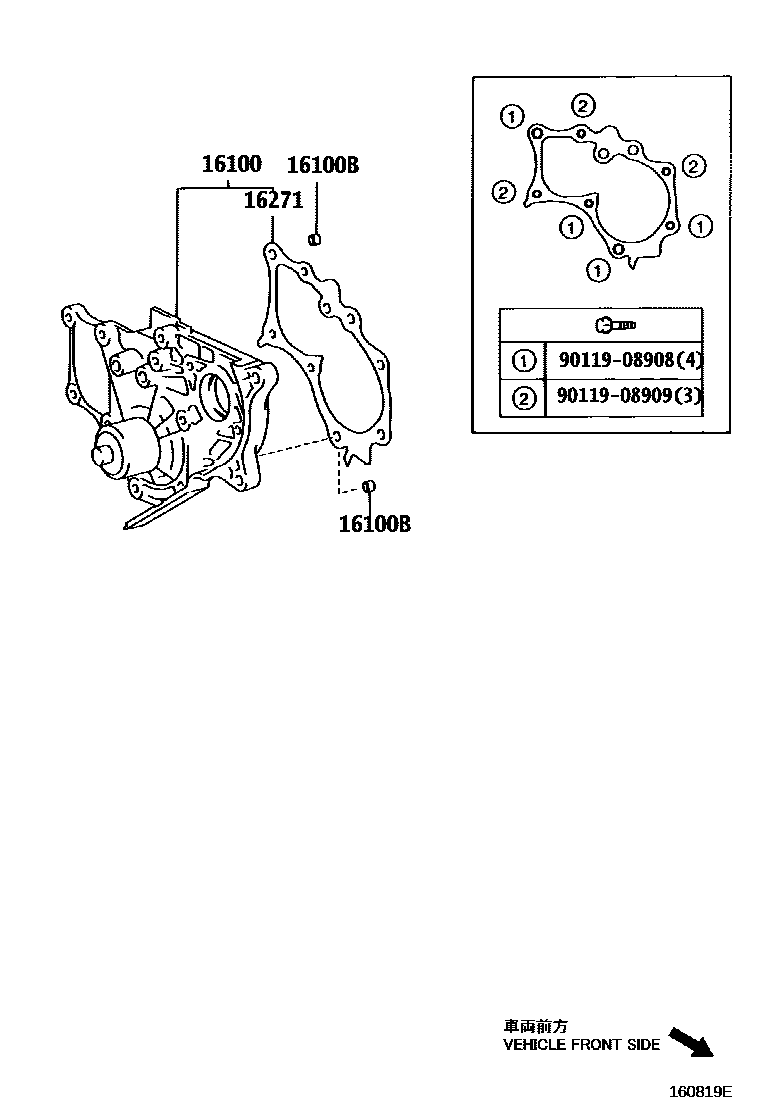

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09130×4i1ZZFE,3ZZFE..ZZE12#200205-200705

(L)

main16100-09150i3ZZFE..ZZE121..BZ200612-200803

TYPE A:REFER ILLUST.

sub16100-09151

sub91511-60622

main16100-09310i1ZZ#,3ZZFE..ZZE12#200408-200809

(L)

main16100-29135i1CDFTV..CDE120200205-200408

main16100-29175×4i1ZZFE,3ZZFE..ZZE12#200205-200705

(J)

main16100-29415i3ZZFE..ZZE121..BZ200612-200803

TYPE B:REFER ILLUST.

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i1CDFTV..CDE120200205-200408

16271GASKET, WATER PUMP

main16271-27010i1CDFTV..CDE120200205-200408

9011908908

main90119-08908

9011908909

main90119-08909

5 parts on this diagram · 2 diagrams in section
