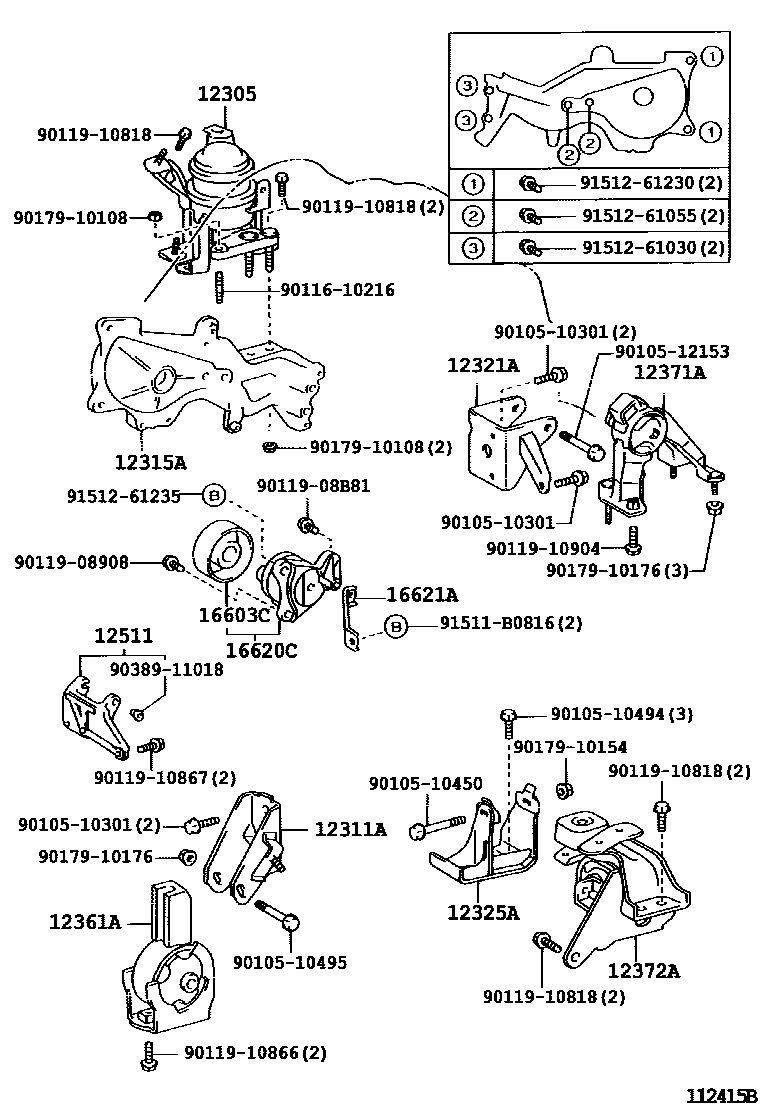

MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-22110i1ZZFE,3ZZFE..ZZE12#200205-200206

sub12305-22170

main12305-22170i1ZZFE,3ZZFE..ZZE12#200206-200403

sub12305-22240

main12305-22240i1ZZFE,3ZZFE..ZZE12#..VEN200403-200705

sub12305-22430

main12305-22420i1ZZFE,3ZZFE..ZZE12#..SED200701-200704

sub12305-22430

main12305-22430i1ZZ#,3ZZFE..ZZE12#200705-200809

main12305-27020i1CDFTV..CDE120200205-200803

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0D080i1ZZFE..ZZE122..ATM..WGN200205-200802

(L)

main12311-0D110i1ZZ#,3ZZFE..ZZE12#..MTM..(XEI,XLI)..BZ..SED200205-200802

(L)

main12311-22110i1ZZ#,3ZZFE..ZZE12#..ATM..BZ..SED200205-200802

(J)

main12311-22110i1ZZFE,3ZZFE..ZZE12#..ATM..VEN200209-200508

main12311-22170i1ZZFE,3ZZFE..ZZE12#..MTM..BZ..SED200205-200802

(J)

main12311-22170i1ZZFE,3ZZFE..ZZE12#..MTM..VEN200209-200508

main12311-22200i1ZZFE..ZZE122..ATM..BZ..SED200612-200802

PERU SPEC

main12311-27020i1CDFTV..CDE120200205-200803

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0D050i1ZZFE,3ZZFE..ZZE12#..VEN200205-200709

(L)

sub12315-22050

main12315-22050i1ZZFE,3ZZFE..ZZE12#..VEN200205-200705

(J)

main12315-27030i1CDFTV..CDE120200205-200408

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0D120i1ZZ#,3ZZFE..ZZE12#..MTM..(XEI,XLI)..BZ..SED200205-200802

(L)

main12321-0D130i1ZZ#,3ZZFE..ZZE12#..ATM..BZ..SED200205-200802

(L)

main12321-22110i1ZZ#..ZZE122..MTM..WGN200205-200802

(J)

main12321-22110i1ZZFE,3ZZFE..ZZE12#..MTM..VEN200209-200508

main12321-22120i1ZZFE,3ZZFE..ZZE12#..ATM..VEN200209-200508

sub12321-22121

main12321-22120i1ZZFE,3ZZFE..ZZE12#..ATM..BZ..SED200205-200506

(J)

sub12321-22121

main12321-22121i1ZZFE..ZZE122..ATM..WGN200507-200802

(J)

main12321-22130i1ZZFE..ZZE122..ATM..BZ..SED200612-200802

PERU SPEC

main12321-27030i1CDFTV..CDE120200205-200803

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-22100i1ZZFE..ZZE122..ATM..BZ..SED200612-200802

PERU SPEC

main12325-22100i1ZZFE,3ZZFE..ZZE12#..ATM..BZ..SED200205-200802

main12325-22200i1ZZFE,3ZZFE..ZZE12#..MTM..VEN200205-200802

main12325-27020i1CDFTV..CDE120200205-200803

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0D030i1ZZFE..ZZE122..MTM..WGN200205-200802

main12361-0D040i1ZZ#..ZZE122..ATM..WGN;1ZZFE,3ZZFE..ZZE12#..ATM..VEN200205-200802

main12361-27030i1CDFTV..CDE120200205-200803

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0D040i1ZZ#..ZZE122..MTM..WGN;1ZZFE,3ZZFE..ZZE12#..MTM..VEN200205-200802

main12371-0D050i1ZZFE,3ZZFE..ZZE12#..ATM..VEN200205-200802

main12371-22140i1ZZFE..ZZE122..ATM..BZ..SED200612-200802

PERU SPEC

main12371-27020i1CDFTV..CDE120200205-200803

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0D051i1ZZFE,3ZZFE..ZZE12#..MTM..BZ..SED200205-200802

main12372-0D051i1ZZFE..ZZE122..ATM..BZ..SED200612-200802

PERU SPEC

main12372-22100i1ZZ#,3ZZFE..ZZE12#..ATM..BZ..SED200205-200802

main12372-27020i1CDFTV..CDE120200205-200803

12511BRACKET, ALTERNATOR, NO.1

main12511-27010i1CDFTV..CDE120200205-200408

16603CPULLEY SUB-ASSY, IDLER

main16603-27010i1CDFTV..CDE120200205-200403

sub16603-27011

main16603-27011i1CDFTV..CDE120200403-200408

16620CTENSIONER ASSY, V-RIBBED BELT

main16620-27020i1CDFTV..CDE120200205-200403

sub16620-27021

main16620-27021i1CDFTV..CDE120200403-200408

16621ABRACKET, V-RIBBED BELT TENSIONER

main16621-27010i1CDFTV..CDE120200205-200408

9010510301

main90105-10301

9010510450

main90105-10450

9010510494

main90105-10494

9010510495

main90105-10495

9010512153

main90105-12153

9011610216

main90116-10216

9011908908

main90119-08908

9011908B81

main90119-08B81

9011910818

main90119-10818

9011910866

main90119-10866

9011910867

main90119-10867

9011910904

main90119-10904

9017910108

main90179-10108

9017910154

main90179-10154

9017910176

main90179-10176

9038911018

main90389-11018

91511B0816

main91511-B0816

9151261030

main91512-61030

9151261055

main91512-61055

9151261230

main91512-61230

9151261235

main91512-61235

33 parts on this diagram · 2 diagrams in section
