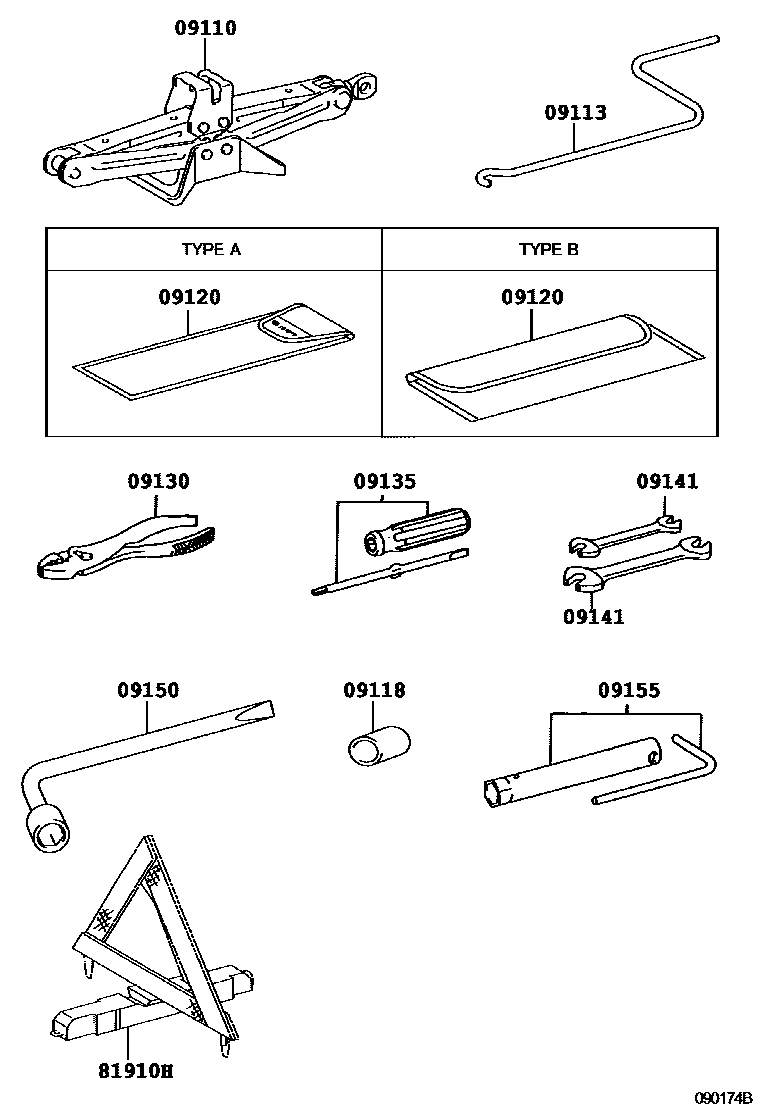

STANDARD TOOL

09110JACK ASSY

main09111-02020iZZE12#..VEN200209-200508

main09111-02050iCDE120,ZZE12#..BZ200205-200705

sub09111-02160

09113HANDLE, JACK

main09113-02040iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200610-200705

main09113-20040iZZE122..ATM..SEG;CDE120,ZZE12#..(XEI,XLI)..BZ..SED200205-200508

sub09113-20050

main09113-52010iZZE122..XEI..WGN..HTWC200505-200609

09118COVER, JACK

main09118-02010iZZE122..WGN200803

09120BAG, TOOL

main09120-02040iZZE122..WGN200205-200705

TYPE A:REFER ILLUST.

main09120-02070iZZE122..WGN200205-200705

TYPE B:REFER ILLUST.

main09120-10040iZZE12#..VEN200209-200508

09130PLIERS

main99913-11500iZZE12#..VEN200209-200508

09135DRIVER, SCREW

main99915-10700iZZE12#..VEN200209-200508

09141SPANNER

main99914-10810iZZE12#..VEN200209-200508

8 X 10

main99914-11214iZZE12#..VEN200209-200508

12 X 14

09150WRENCH, HUB NUT BOX

main09150-02010iCDE120,ZZE12#..BZ200205-200705

main09150-40010iZZE12#..VEN200209-200508

09155WRENCH, SPARK PLUG

main09155-74010iZZE12#..VEN200209-200508

81910HREFLECTOR ASSY, REFLEX

main81910-02010iZZE12#..BZ..SED..HTWC200205-200705

10 parts on this diagram · 1 diagram in section
