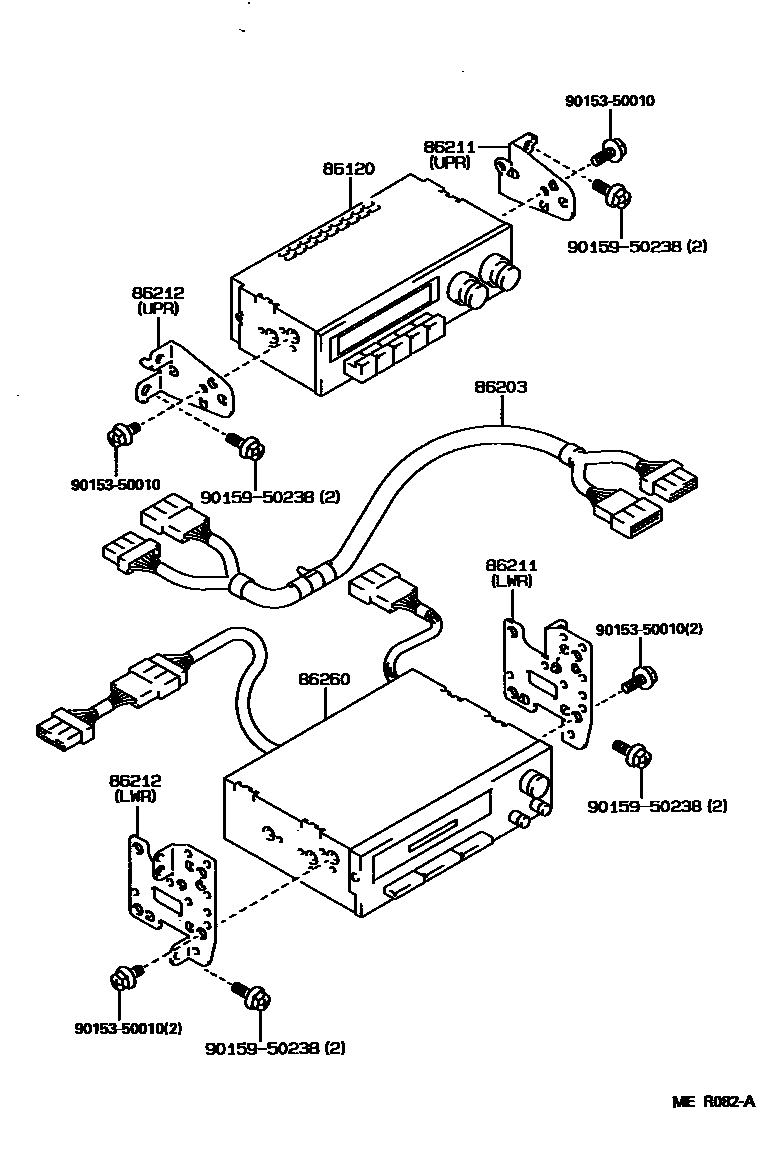

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-12550iAE95..GEN199009-199508

FUJITSU TEN,AM,TEN

main86120-12590iAE95..GEN199009-199508

PANASONIC,AM,MATSUSHITA

main86120-12730iAE95..SR5199009-199108

main86120-16430iAE95..GEN199009-199508

FUJITSU TEN,AM/FM,2-SPEAKERS

main86120-16430iAE95..XL..ARL199009-199508

FUJITSU TEN

main86120-16460iAE95..GEN199009-199508

MATSUSHITA,ID=5108,MW/SW

main86120-16470iAE95..GEN199009-199308

FUJITSU TEN,AM/FM,1-SPEAKER

main86120-2B400iAE95..SR5199108-199508

FUJITSU TEN

86203WIRE, RADIO

main86203-12100iAE95..RHD..GEN199009-199508

main86203-12200iAE95..LHD199009-199508

86211BRACKET, RADIO, NO.1

main86211-12210iAE95199009-199508

UPR

main86211-12220iAE95199009-199508

LWR

86212BRACKET, RADIO, NO.2

main86212-12190iAE95199009-199508

UPR

main86212-12200iAE95199009-199508

LWR

86260TAPE PLAYER ASSY

main86260-16140iAE95..GEN199009-199508

9015350010

main90153-50010

9015950238

main90159-50238

7 parts on this diagram · 2 diagrams in section
