FRONT SEAT & SEAT TRACK

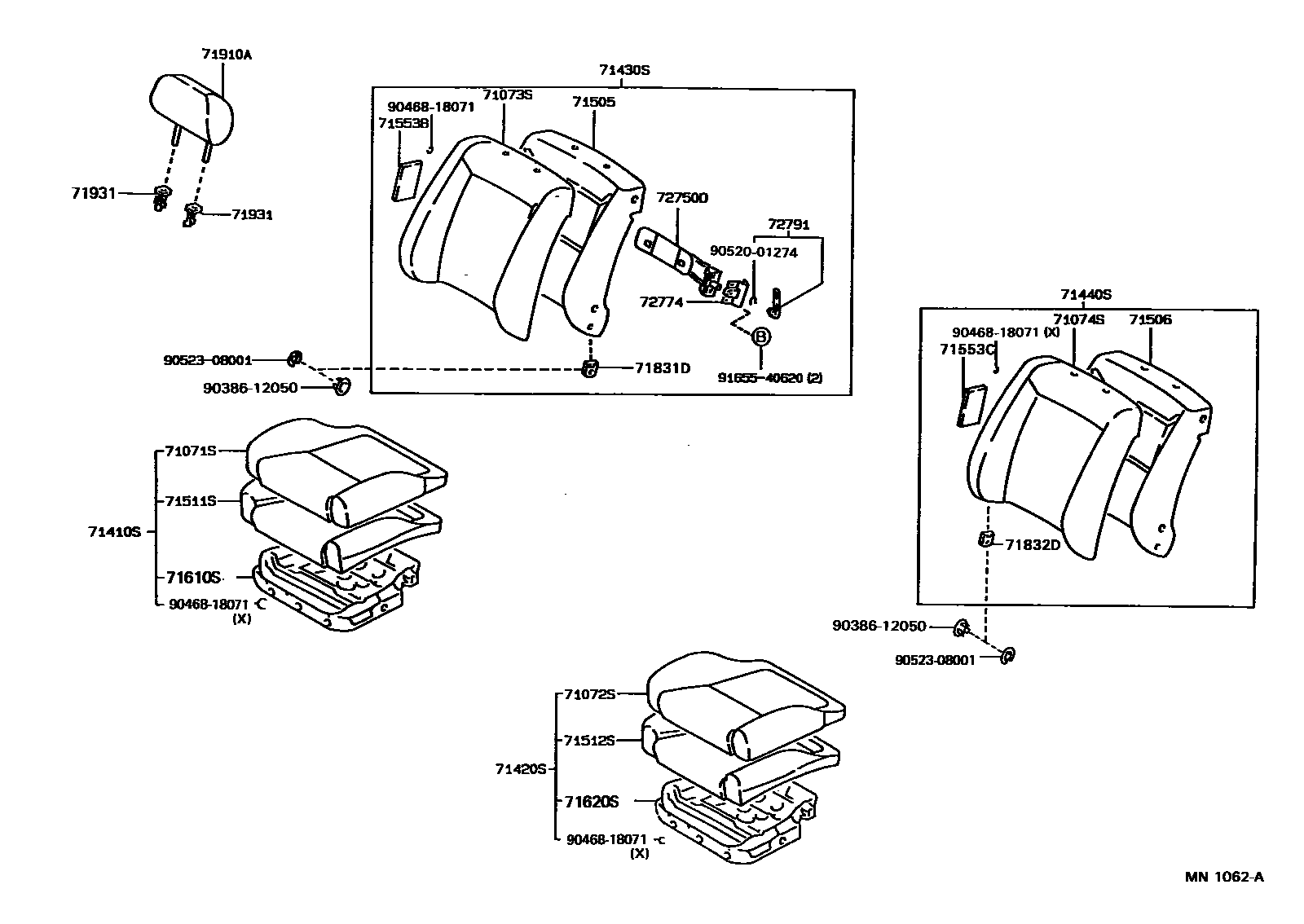

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H640-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H640-03i199009-199308
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71071-1H640-04i199009-199508
DARK BLUE,TRIM8#
main71071-1H711-03i199009-199508
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H711-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H711-04i199009-199308
DARK BLUE,TRIM8#
main71071-1H711-04i199009-199508
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1K051-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1K051-04i199009-199308
DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H640-03i199009-199308
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71071-1H640-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H640-04i199009-199508
DARK BLUE,TRIM8#
main71071-1H711-03i199009-199508
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H711-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1H711-04i199009-199308
DARK BLUE,TRIM8#
main71071-1H711-04i199009-199508
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1K120-03i199009-199508
SHADOW GRAY,TRIM1#
main71071-1K120-04i199009-199308
DARK BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H210-03i199009-199508
W(HEADREST),SHADOW GRAY,TRIM1#
sub71073-1H360
main71073-1H210-04i199009-199508
W(HEADREST),DARK BLUE,TRIM8#
sub71073-1H360
main71073-1H281-03i199009-199508
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H281-03i199009-199508
SHADOW GRAY,TRIM1#
main71073-1H281-04i199009-199308
DARK BLUE,TRIM8#
main71073-1H281-04i199009-199508
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H311-03i199009-199508
SHADOW GRAY,TRIM1#
main71073-1H311-04i199009-199308
DARK BLUE,TRIM8#
main71073-1H360-03i199009-199308
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71073-1H360-03i199009-199508
SHADOW GRAY,TRIM1#
main71073-1H360-04i199009-199508
DARK BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1E170-03i199009-199508
W(HEADREST),SHADOW GRAY,TRIM1#
sub71074-1E320
main71074-1E170-04i199009-199508
W(HEADREST),DARK BLUE,TRIM8#
sub71074-1E320
main71074-1E241-03i199009-199508
SHADOW GRAY,TRIM1#
main71074-1E241-03i199009-199508
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E241-04i199009-199508
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E241-04i199009-199308
DARK BLUE,TRIM8#
main71074-1E271-03i199009-199508
SHADOW GRAY,TRIM1#
main71074-1E271-04i199009-199308
DARK BLUE,TRIM8#
main71074-1E320-03i199009-199508
SHADOW GRAY,TRIM1#
main71074-1E320-03i199009-199308
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71074-1E320-04i199009-199508
DARK BLUE,TRIM8#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1K130-03i199009-199308
***,NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71410-1K130-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1K130-04i199009-199308
***,NEW ZEALAND SPEC,DARK BLUE,TRIM8#
main71410-1K130-04i199308-199508
***,DARK BLUE,TRIM8#
main71410-1K201-03i199009-199508
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K201-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1K201-03i199009-199308
***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT) OR W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K201-04i199009-199308
***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT) OR W(FULL FABRIC SEAT),BROWN,TRIM8#
main71410-1K201-04i199009-199308
***,BROWN,TRIM8#
main71410-1K201-04i199009-199508
***,W(FULL FABRIC SEAT),BROWN,TRIM8#
main71410-1K391-03i199009-199508
***,SHADOW GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1K130-03i199009-199308
***,NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71410-1K130-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1K130-04i199009-199308
***,NEW ZEALAND SPEC,DARK BLUE,TRIM8#
main71410-1K130-04i199308-199508
***,DARK BLUE,TRIM8#
main71410-1K201-03i199308-199508
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K201-03i199009-199308
***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT) OR W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K201-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1K201-04i199009-199308
***,BROWN,TRIM8#
main71410-1K201-04i199009-199508
***,W(FULL FABRIC SEAT),BROWN,TRIM8#
main71410-1K310-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71410-1K310-04i199009-199308
***,DARK BLUE,TRIM8#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1H520-03i199009-199508
***,W(HEADREST),SHADOW GRAY,TRIM1#
main71430-1H520-04i199009-199508
***,W(HEADREST),DARK BLUE,TRIM8#
main71430-1H531-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71430-1H531-04i199009-199308
***,DARK BLUE,TRIM8#
main71430-1H611-03i199009-199508
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1H611-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71430-1H611-04i199009-199308
***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT) OR W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1H611-04i199009-199508
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1H680-03i199009-199308
***,NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71430-1H680-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71430-1H680-04i199009-199308
***,NEW ZEALAND SPEC,DARK BLUE,TRIM8#
main71430-1H680-04i199308-199508
***,DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1H460-03i199009-199508
***,W(HEADREST),SHADOW GRAY,TRIM1#
main71440-1H460-04i199009-199508
***,W(HEADREST),DARK BLUE,TRIM8#
main71440-1H471-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71440-1H471-04i199009-199308
***,DARK BLUE,TRIM8#
main71440-1H541-03i199009-199508
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H541-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71440-1H541-04i199009-199308
***,NEW ZEALAND SPEC & W(FULL FABRIC SEAT) OR W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H541-04i199009-199508
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H600-03i199009-199508
***,SHADOW GRAY,TRIM1#
main71440-1H600-03i199009-199308
***,NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71440-1H600-04i199009-199308
***,NEW ZEALAND SPEC,DARK BLUE,TRIM8#
main71440-1H600-04i199308-199508
***,DARK BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12030i199009-199508
main71505-12050i199009-199508
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-12040i199009-199508
main71506-12050i199009-199508
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12670i199009-199508
main71511-12680i199009-199508
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12670i199009-199508
main71511-12680i199009-199508
71553BPAD, FRONT SEATBACK, B
main71553-12200i199009-199508
71553CPAD, FRONT SEATBACK, C
main71553-12200i199009-199508
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12320i199009-199508
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-12320i199009-199508
71831DCOVER, FRONT SEAT HINGE, RH
main71831-12010i199009-199508
71832DCOVER, FRONT SEAT HINGE, LH
main71831-12010i199009-199508
71910AHEADREST ASSY, FRONT SEAT
main71910-12711-03i199009-199508
SHADOW GRAY,TRIM1#
main71910-12711-04i199009-199308
DARK BLUE,TRIM8#
main71910-12791-03i199009-199508
W(FABRIC TYPE),SHADOW GRAY,TRIM1#
main71910-12791-03i199308-199508
SHADOW GRAY,TRIM1#
main71910-12791-04i199009-199508
W(FABRIC TYPE),DARK BLUE,TRIM8#
main71910-1A110-B0i199009-199508
W(VINYL TYPE),SHADOW GRAY,TRIM1#
sub71910-1A110
main71910-1A110-J0i199009-199508
W(VINYL TYPE),DARK BLUE,TRIM8#
sub71910-1A110
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03i199009-199508
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-12050
main71930-12050-04i199009-199508
W(LOCK),DARK BLUE,TRIM8#
sub71930-12050
main71931-12010-03i199009-199508
W/O(LOCK),SHADOW GRAY,TRIM1#
sub71931-12010
main71931-12010-04i199009-199508
W/O(LOCK),DARK BLUE,TRIM8#
sub71931-12010
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12060i199009-199508
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12020i199009-199508
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i199009-199406
SHADOW GRAY,TRIM1#
sub72791-20030
main72791-20030-14i199009-199308
DARK BLUE,TRIM8#
sub72791-20030
main72791-20050-B2i199406-199508
SHADOW GRAY,TRIM1#
sub72791-20050
9038612050
main90386-12050
9046818071
main90468-18071
9052001274
main90520-01274
9052308001
main90523-08001
9165540620
main91655-40620

28 parts on this diagram · 2 diagrams in section
