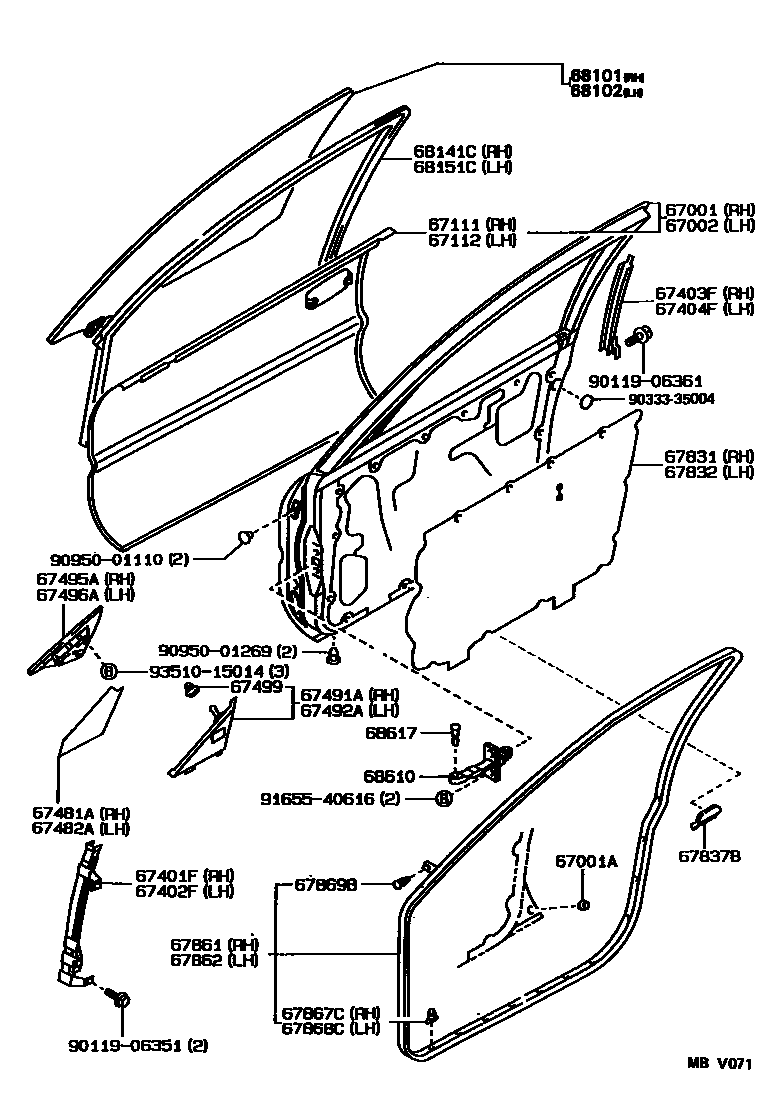

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-1A241iAE95..GEN199009-199508

main67001-1A261iAE95..ARL199009-199508

67001ACUSHION, FRONT DOOR PANEL

main90541-09035×2iAE95199009-199508

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-1A221iAE95..GEN199009-199508

main67002-1A241iAE95..ARL199009-199508

67111PANEL, FRONT DOOR, OUTER RH

main67111-12460iAE95199009-199508

67112PANEL, FRONT DOOR, OUTER LH

main67112-12450iAE95199009-199508

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12290iAE95199009-199508

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12310iAE95199009-199508

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12100iAE95199009-199508

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12100iAE95199009-199508

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-12210iAE95..RHD..GEN199009-199308

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-12140iAE95..ARL199009-199508

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12170iAE95..GEN;AE95..SR5199009-199508

main67491-12180iAE95..LHD199009-199508

W(MANUAL REMOTE CONTROL MIRROR)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12170iAE95..RHD..GEN199009-199308

NEW ZEALAND SPEC & W(*DM)

main67492-12180iAE95..LHD199009-199508

W(MANUAL REMOTE CONTROL MIRROR)

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-12130iAE95..GEN199009-199508

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-12130iAE95..GEN199009-199508

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-12030×2iAE95199009-199508

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12350iAE95199009-199508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-12350iAE95199009-199508

67837BSEAL, FRONT DOOR DUST PROOF

main67837-12040×2iAE95..ARL199009-199508

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12671iAE95199009-199508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12591iAE95199009-199508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-12050×16iAE95199009-199508

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-12050×16iAE95199009-199508

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-12020×2iAE95199009-199508

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12570iAE95199009-199508

*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12570iAE95199009-199508

*TT,T=3.5

68141CRUN, FRONT DOOR GLASS, RH

main68141-12351iAE95199009-199508

68151CRUN, FRONT DOOR GLASS, LH

main68151-12071iAE95199009-199508

68610CHECK ASSY, FRONT DOOR

main68610-12050×2iAE95199009-199508

68617PIN, FRONT DOOR CHECK

main68617-12030×2iAE95199009-199508

9011906351

main90119-06351

9011906361

main90119-06361

9033335004

main90333-35004

9095001110

main90950-01110

9095001269

main90950-01269

9165540616

main91655-40616

9351015014

main93510-15014

37 parts on this diagram · 3 diagrams in section
