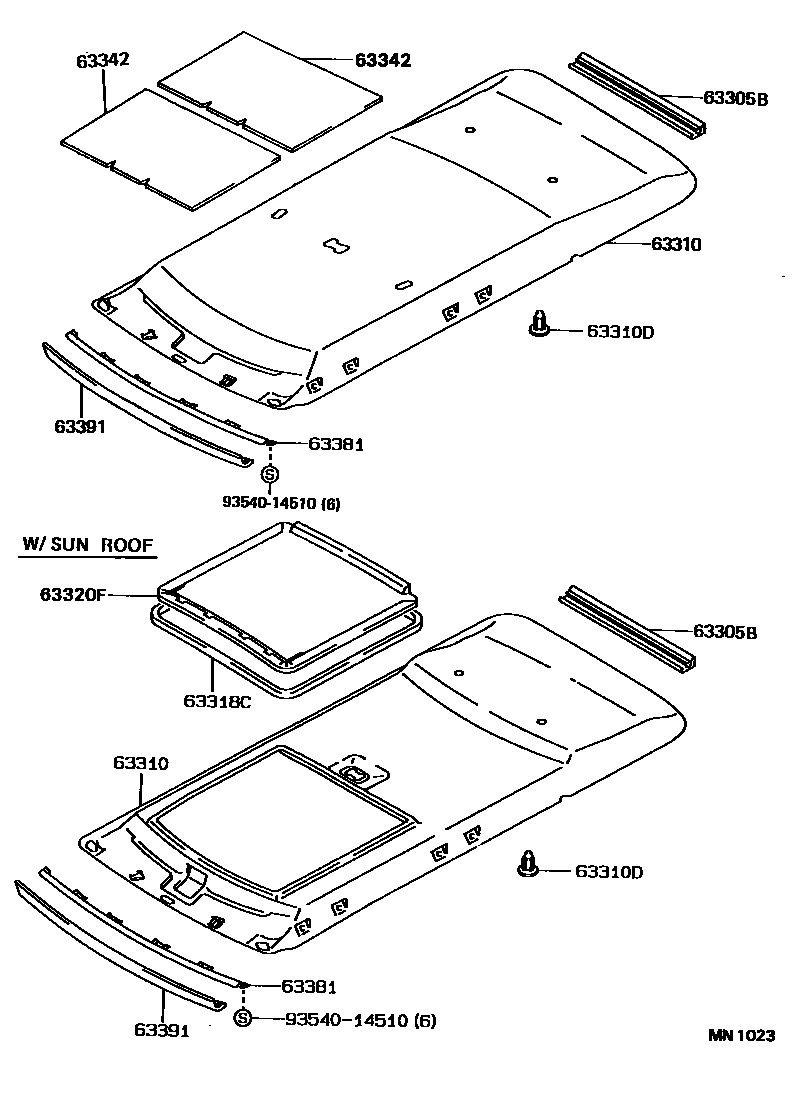

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12130-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main63305-12130-04iAE95199009-199508

DARK BLUE,TRIM8#

63310HEADLINING ASSY, ROOF

main63310-1A120-03iAE95..SR5199009-199508

LIGHT GRAY,TRIM1#

main63310-1A120-03iAE95..XL199009-199508

W(ROOF INNER RACK),LIGHT GRAY,TRIM1#

main63310-1A120-04iAE95..LHD199009-199508

W(ROOF INNER RACK),LIGHT BLUE,TRIM8#

main63310-1A120-04iAE95..SR5199009-199308

LIGHT BLUE,TRIM8#

main63310-1A130-03iAE95..XL199009-199508

W(ROOF INNER RACK & SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A130-03iAE95..SR5199009-199508

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A130-04iAE95..SR5199009-199308

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A130-04iAE95..XL199009-199508

W(ROOF INNER RACK & SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A140-03iAE95..XL199009-199508

LIGHT GRAY,TRIM1#

main63310-1A140-04iAE95..XL199009-199508

LIGHT BLUE,TRIM8#

main63310-1A150-03iAE95..XL199009-199508

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A150-04iAE95..LHD199009-199508

W(SUN ROOF),LIGHT BLUE,TRIM8#

63310DCLIP, ROOF HEADLINING

main90467-06048-B1iAE95..XL199009-199508

LIGHT GRAY,TRIM1#

sub90467-06048

main90467-06048-J0iAE95..XL199009-199508

LIGHT BLUE,TRIM8#

sub90467-06048

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12040-03iAE95199009-199508

LIGHT GRAY,TRIM1#

main63318-12040-04iAE95199009-199508

LIGHT BLUE,TRIM8#

63320FHEADLINING ASSY, SUN ROOF

main63320-12090-03iAE95199009-199508

LIGHT GRAY,TRIM1#

main63320-12090-04iAE95199009-199508

LIGHT BLUE,TRIM8#

63342PAD, ROOF SILENCER, NO.2

main63343-12050iAE95199009-199508

63381RETAINER, HEADLINING, FRONT

main63381-12150iAE95199009-199508

sub63381-12140

63391TRIM, ROOF HEADLINING, FRONT

main63391-12080-B1iAE95199009-199508

SHADOW GRAY,TRIM1#

sub63391-12080

main63391-12080-J0iAE95199009-199508

DARK BLUE,TRIM8#

sub63391-12080

9354014510

main93540-14510

9 parts on this diagram · 2 diagrams in section
